Hayter Harrier 41 AD VS - 413G (413G310000001 - 410G310999999) - Upper Mainframe

Name: Hayter Harrier 41 AD VS - 413G (413G310000001 - 410G310999999) - Upper Mainframe
SKU: harrier 41 ad vs 413g upper mainframe-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 41 AD VS - 413G (413G310000001 - 410G310999999) - Upper Mainframe

Description

Hayter Harrier 41 - Autodrive Variable Speed Mower - 413G

Serial No: 413G310000001 - 410G310999999

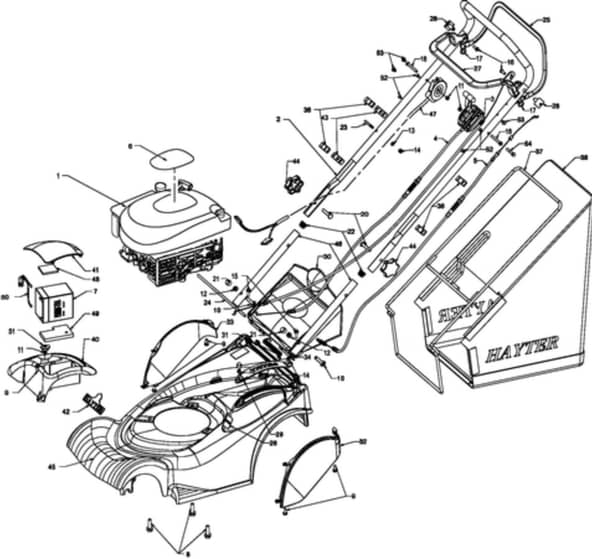

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-3071 Out of stock	Engine B&S Quantum xts 50	£288.78 £240.65
2	HA305145W In stock	Handlebar - Upper	£64.73 £53.94
3	HA111-1094 In stock	Cable Engine Brake - Ad	£13.36 £11.13
8	HA09349 Out of stock	Screw	£1.60 £1.33
9	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.63 £1.36
10	HA09379 Out of stock	Bolt-Coach	£1.62 £1.35
11	HA09438 In stock	Nut-Nyloc	£1.62 £1.35
12	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
13	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
14	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
15	HA09575 In stock	Screw-Taptite	£1.62 £1.35
16	HA09687 In stock	Screw	£1.62 £1.35
17	HA09688 In stock	Washer	£0.68 £0.57
20	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
21	HAHY234051 In stock	Cap-Nut	£1.56 £1.30
22	HA300160 Out of stock	Plug	£1.62 £1.35
23	HA305093 Out of stock	Guide Rope	£1.62 £1.35
24	HA305103 Out of stock	Deflector Rod	£3.95 £3.29
26	HA320006 In stock	Decal-Hoc	£1.62 £1.35
27	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
28	HA340182 In stock	Pin-Pivot	£1.62 £1.35
29	HAHY410006 In stock	Ratchet - Hoc	£4.15 £3.46
30	HA410028 In stock	Rear Deflector	£24.36 £20.30
31	HA410030 In stock	Spring-Deflector	£6.24 £5.20
32	HA410032 In stock	Cover - Side Lh	£16.16 £13.47
33	HA410033 In stock	Cover- Side Rh	£16.16 £13.47
34	HA343025 Out of stock	Cap-Plastic	£1.63 £1.36
36	HA410037 In stock	Guide-Cable	£1.46 £1.22
37	HA410038W Out of stock	Frame - Grassbag	£35.14 £29.28
38	HA410039 Out of stock	Fabric - Grassbag	£46.76 £38.97
39	HA410064 Out of stock	Decal - Blade Of Grass	£9.37 £7.81
40	HA410080 Out of stock	Box - Battery	£12.11 £10.09
41	HA410081 Out of stock	Cover - Battery	£9.78 £8.15
42	HA410087 In stock	Decal	£4.79 £3.99
44	HA480088 In stock	Knob-Handlebar	£5.35 £4.46
45	HA410010V Out of stock	Mainframe	£237.68 £198.07
46	HA410034W In stock	Handlebar - Lower	£6.89 £5.74
52	HA300144 Out of stock	Fastener Drive	£1.62 £1.35
53	HA341033 In stock	Fastener-Drive	£1.62 £1.35
54	HAZBH1F040U Out of stock	Screw-HH	£1.86 £1.55
