Hayter Harrier 41 AD ES - 307L (307L001001 - 307L006075) Mainframe Assembly

Name: Hayter Harrier 41 AD ES - 307L (307L001001 - 307L006075) Mainframe Assembly
SKU: HARRIER 41 AD ES 307L 307L001001 - 307L006075 Mainframe Assembly
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Harrier 41 AD ES - 307L (307L001001 - 307L006075) Mainframe Assembly

Description

Hayter Harrier 41 - Autodrive Electric Start Mower - 307L

Serial No: 307L001001 - 307L006075

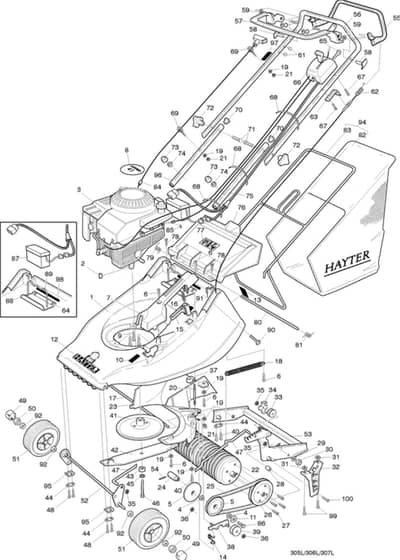

Mainframe Assembly

Be the first to review this product

0 product questions

	Part No.	Details
2	HA1662 In stock	Key-Woodruff	£1.46 £1.22
4	HAHY09485 Out of stock	Washer-Plain	£1.63 £1.36
5	HA306104 Out of stock	Pulley Half	£5.04 £4.20
6	HA09596 Out of stock	Screw-Taptite. Pozidriv	£1.56 £1.30
7	HA305112 In stock	Height Adjuster Handle	£14.88 £12.40
8	HA307026 Out of stock	Decal Engine 307L	£3.65 £3.04
9	HA09349 Out of stock	Screw-Taptite. Unc	£1.60 £1.33
10	HA305113 Out of stock	Label (Height Of Cut)	£3.23 £2.69
11	HA306110 Out of stock	Washer Belleville 8.2230.9	£1.56 £1.30
12	HA410087 In stock	Decal Hayter Royal Warrant	£4.79 £3.99
14	HA301031 In stock	Compression Spring	£4.06 £3.38
15	HA300066 In stock	Trigger Height Adj	£8.14 £6.78
16	HA300067 In stock	Spring	£1.80 £1.50
18	HA300070 In stock	Spring-Compensating	£11.50 £9.58
19	HA09472 Out of stock	Washer-Plain	£1.46 £1.22
20	HA300137 Out of stock	Pillar	£10.97 £9.14
21	HA09544 In stock	Nut-Nyloc	£1.56 £1.30
22	HA239065 In stock	Roller Rear	£48.55 £40.46
25	HA306050 In stock	Belt	£26.32 £21.93
29	HA09271 Out of stock	Washer-Plain	£1.63 £1.36
30	HA09216 Out of stock	Nut-Hex. Ni	£1.63 £1.36
31	HA09262 Out of stock	Washer	£1.63 £1.36
33	HA301020 Out of stock	Compensating Pulley	£2.44 £2.03
34	HA301050 Out of stock	Plate Compensating	£11.50 £9.58
35	HA02385 In stock	Grip Fix	£1.56 £1.30
36	HA04020 In stock	Grip-Fix	£1.62 £1.35
37	HA301030 In stock	Bearing Half	£2.54 £2.12
38	HA301015 In stock	Jockey Arm Assy	£27.72 £23.10
39	HAHY239021 In stock	Pulley Tensioner	£8.22 £6.85
40	HA09634 In stock	Screw-Pph. Hd	£1.54 £1.28
41	HA397042W Out of stock	Friction Disc W/A	£55.30 £46.08
42	HAHY201026 In stock	Cutterbar 16"	£29.52 £24.60
43	HA4014 Out of stock	Drag Plate	£11.52 £9.60
44	HA219037 Out of stock	Plate-Securing	£1.62 £1.35
45	HA09273 In stock	Washer-Spring	£1.62 £1.35
46	HA09118 Out of stock	Bolt-HH	£1.75 £1.46
47	HA305109 In stock	Connecting Rod	£6.80 £5.67
48	HA09546 Out of stock	Screw-Taptite	£1.64 £1.37
49	HA300155 Out of stock	Hub Cap	£5.45 £4.54
50	HA4486 Out of stock	Nut Unf 1/2" Nyloc Ext Thin5/16"	£1.18 £0.98
51	HA300153 In stock	Wheel 6" C/W 1/2" Ball Bearing	£20.28 £16.90
52	HA300111 Out of stock	Front Axle Welded Assy	£60.16 £50.13
54	HA03997 In stock	Pin-Roll	£1.62 £1.35
55	HA111-1921-03 Out of stock	Lever-Clutch	£42.52 £35.43
56	HA305145W In stock	Handlebar Upper	£64.73 £53.94
57	HA111-9662 In stock	Lever-Engine	£17.81 £14.84
58	HA340182 In stock	Pin-Pivot	£1.62 £1.35
59	HA09688 In stock	Washer-Nylon	£0.68 £0.57
60	HA09687 In stock	Screw	£1.62 £1.35
61	HA300144 Out of stock	Fastener-Drive	£1.62 £1.35
62	HA306107 In stock	Cable Clutch	£24.46 £20.38
65	HAHY6426 Out of stock	Key Pair - Electric Start	£6.95 £5.79
67	HAHY09600 Out of stock	Screw No8*1 1/2" Deltite Posi Pan	£1.56 £1.30
68	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
69	HA305093 Out of stock	Guide-Rope	£1.62 £1.35
70	HA300160 Out of stock	Plug - Tube	£1.62 £1.35
71	HAHY226024 In stock	Bolt-Handlebar	£1.60 £1.33
72	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
73	HAHY234051 In stock	Cap-Nut	£1.56 £1.30
74	HA09441 In stock	Nut-Hex. Ni	£1.62 £1.35
77	HA111-0083 Out of stock	Decal - Caution	£2.30 £1.92
78	HA09575 In stock	Screw-Taptite	£1.62 £1.35
79	HA305111 Out of stock	Deflector Spring R/H	£4.91 £4.09
80	HA305103 Out of stock	Deflector Rod	£3.95 £3.29
81	HA305110 In stock	Deflector Spring L/H	£2.00 £1.67
82	HA305104 Out of stock	Grassbag	£45.31 £37.76
83	HA305105W Out of stock	Grassbag Frame	£35.83 £29.86
84	HAMU42189 Out of stock	Rope Stop	£5.00 £4.17
87	HAHY220015 Out of stock	Battery Replacement Kit	£89.29 £74.41
88	HAHY220013 Out of stock	Battery Bracket	£22.36 £18.63
90	HA09379 In stock	Bolt-Coach	£1.62 £1.35
91	HA320006 In stock	Decal-Hoc	£1.62 £1.35
92	HAHY300154 In stock	Bearing 1/2" Ball.Uralan Wheel	£3.72 £3.10
95	HA305108 Out of stock	Axle Bush	£7.19 £5.99
98	HA305119 In stock	Seal-Sponge	£1.52 £1.27
99	HA09365 In stock	Screw M6 x 16 Taptite Hex Hd	£1.63 £1.36
