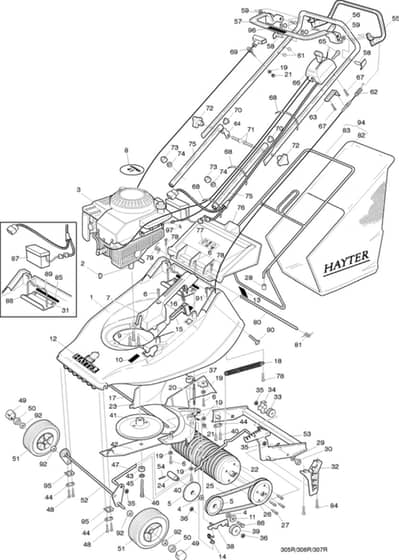

Hayter Harrier 41 AD - 306R (306R001001 - 306R099999) Mainframe Assembly

Hayter Harrier 41 AD - 306R (306R001001 - 306R099999) Mainframe Assembly
Hayter Harrier 41 AD - 306R (306R001001 - 306R099999) Mainframe Assembly

Description

Hayter Harrier 41 - Autodrive Mower - 306R

Serial No: 306R001001 - 306R099999

Mainframe Assembly

Ref. Img. Part No. Details
  2 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  4 Washer-Plain
Washer-Plain
HAHY09485 Out of stock
Washer-Plain
£1.63 £1.36

  5 Pulley Half
Pulley Half
HA306104 Out of stock
Pulley Half
£5.04 £4.20

  6 Screw-Taptite. Pozidriv
Screw-Taptite. Pozidriv
HA09596 Out of stock
Screw-Taptite. Pozidriv
£1.56 £1.30

  7 Height Adjuster Handle
Height Adjuster Handle
HA305112 In stock
Height Adjuster Handle
£14.88 £12.40

  9 Screw-Taptite. Unc
Screw-Taptite. Unc
HA09349 Out of stock
Screw-Taptite. Unc
£1.60 £1.33

  10 Label (Height Of Cut)
Label (Height Of Cut)
HA305113 Out of stock
Label (Height Of Cut)
£3.23 £2.69

  11 Washer Belleville 8.2*23*0.9
Washer Belleville 8.2*23*0.9
HA306110 Out of stock
Washer Belleville 8.2*23*0.9
£1.56 £1.30

  12 Decal Hayter Royal Warrant
Decal Hayter Royal Warrant
HA410087 In stock
Decal Hayter Royal Warrant
£4.79 £3.99

  14 Compression Spring
Compression Spring
HA301031 In stock
Compression Spring
£4.06 £3.38

  15 Trigger Height Adj
Trigger Height Adj
HA300066 In stock
Trigger Height Adj
£8.14 £6.78

  16 Spring
Spring
HA300067 In stock
Spring
£1.80 £1.50

  18 Spring-Compensating
Spring-Compensating
HA300070 In stock
Spring-Compensating
£11.50 £9.58

  19 Washer-Plain
Washer-Plain
HA09472 Out of stock
Washer-Plain
£1.46 £1.22

  20 Pillar
Pillar
HA300137 Out of stock
Pillar
£10.97 £9.14

  21 Nut-Nyloc
Nut-Nyloc
HA09544 In stock
Nut-Nyloc
£1.56 £1.30

  22 Roller Rear
Roller Rear
HA239065 In stock
Roller Rear
£48.55 £40.46

  25 Belt
Belt
HA306050 In stock
Belt
£26.32 £21.93

  29 Washer-Plain
Washer-Plain
HA09271 Out of stock
Washer-Plain
£1.63 £1.36

  30 Nut-Hex. Ni
Nut-Hex. Ni
HA09216 Out of stock
Nut-Hex. Ni
£1.63 £1.36

  32 Axle Support
Axle Support
HA305130 Out of stock
Axle Support
£6.26 £5.22

  33 Compensating Pulley
Compensating Pulley
HA301020 Out of stock
Compensating Pulley
£2.44 £2.03

  34 Plate Compensating
Plate Compensating
HA301050 Out of stock
Plate Compensating
£11.50 £9.58

  35 Grip Fix
Grip Fix
HA02385 In stock
Grip Fix
£1.56 £1.30

  36 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  37 Bearing Half
Bearing Half
HA301030 In stock
Bearing Half
£2.54 £2.12

  38 Jockey Arm Assy
Jockey Arm Assy
HA301015 In stock
Jockey Arm Assy
£27.72 £23.10

  39 Pulley Tensioner
Pulley Tensioner
HAHY239021 In stock
Pulley Tensioner
£8.22 £6.85

  40 Screw-Pph. Hd
Screw-Pph. Hd
HA09634 In stock
Screw-Pph. Hd
£1.54 £1.28

  41 Friction Disc W/A
Friction Disc W/A
HA397042W Out of stock
Friction Disc W/A
£55.30 £46.08

  42 Cutterbar 16
Cutterbar 16
HAHY201026 In stock
Cutterbar 16"
£29.52 £24.60

  43 Drag Plate
Drag Plate
HA4014 Out of stock
Drag Plate
£11.52 £9.60

  44 Plate-Securing
Plate-Securing
HA219037 Out of stock
Plate-Securing
£1.62 £1.35

  45 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  46 Bolt-HH
Bolt-HH
HA09118 Out of stock
Bolt-HH
£1.75 £1.46

  47 Connecting Rod
Connecting Rod
HA305109 In stock
Connecting Rod
£6.80 £5.67

  48 Screw-Taptite
Screw-Taptite
HA09546 Out of stock
Screw-Taptite
£1.64 £1.37

  49 Hub Cap
Hub Cap
HA300155 Out of stock
Hub Cap
£5.45 £4.54

  50 Nut Unf 1/2
Nut Unf 1/2
HA4486 Out of stock
Nut Unf 1/2" Nyloc Ext Thin5/16"
£1.18 £0.98

  51 Wheel 6
Wheel 6
HA300153 In stock
Wheel 6" C/W 1/2" Ball Bearing
£20.28 £16.90

  52 Front Axle Welded Assy
Front Axle Welded Assy
HA300111 Out of stock
Front Axle Welded Assy
£60.16 £50.13

  54 Pin-Roll
Pin-Roll
HA03997 In stock
Pin-Roll
£1.62 £1.35

  55 Lever-Clutch
Lever-Clutch
HA111-1921-03 In stock
Lever-Clutch
£42.52 £35.43

  56 Handlebar Upper
Handlebar Upper
HA305145W In stock
Handlebar Upper
£64.73 £53.94

  57 Lever-Engine
Lever-Engine
HA111-9662 In stock
Lever-Engine
£17.81 £14.84

  58 Pin-Pivot
Pin-Pivot
HA340182 In stock
Pin-Pivot
£1.62 £1.35

  59 Washer-Nylon
Washer-Nylon
HA09688 In stock
Washer-Nylon
£0.68 £0.57

  60 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  61 Fastener-Drive
Fastener-Drive
HA300144 Out of stock
Fastener-Drive
£1.62 £1.35

  62 Cable Clutch
Cable Clutch
HA306107 In stock
Cable Clutch
£24.46 £20.38

  67 Screw No8*1 1/2
Screw No8*1 1/2
HAHY09600 Out of stock
Screw No8*1 1/2" Deltite Posi Pan
£1.56 £1.30

  68 Spring - Clip
Spring - Clip
HA3966 Out of stock
Spring - Clip
£1.18 £0.98

  69 Guide-Rope
Guide-Rope
HA305093 Out of stock
Guide-Rope
£1.62 £1.35

  70 Plug-Tube
Plug-Tube
HA300160 Out of stock
Plug-Tube
£1.62 £1.35

  71 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  72 Triangular Handwheel
Triangular Handwheel
HA226013 In stock
Triangular Handwheel
£6.80 £5.67

  73 Cap-Nut
Cap-Nut
HAHY234051 In stock
Cap-Nut
£1.56 £1.30

  74 Nut-Hex. Ni
Nut-Hex. Ni
HA09441 In stock
Nut-Hex. Ni
£1.62 £1.35

  77 Decal - Caution
Decal - Caution
HA111-0083 Out of stock
Decal - Caution
£2.30 £1.92

  78 Screw-Taptite
Screw-Taptite
HA09575 In stock
Screw-Taptite
£1.62 £1.35

  79 Deflector Spring R/H
Deflector Spring R/H
HA305111 Out of stock
Deflector Spring R/H
£4.91 £4.09

  80 Deflector Rod
Deflector Rod
HA305103 Out of stock
Deflector Rod
£3.95 £3.29

  81 Deflector Spring L/H
Deflector Spring L/H
HA305110 Out of stock
Deflector Spring L/H
£2.00 £1.67

  82 Grassbag
Grassbag
HA305104 Out of stock
Grassbag
£45.31 £37.76

  83 Grassbag Frame
Grassbag Frame
HA305105W Out of stock
Grassbag Frame
£35.83 £29.86

  84 Screw M6 x 16 Taptite Hex Hd
Screw M6 x 16 Taptite Hex Hd
HA09365 In stock
Screw M6 x 16 Taptite Hex Hd
£1.63 £1.36

  85 Seal-Sponge
Seal-Sponge
HA305119 Out of stock
Seal-Sponge
£1.52 £1.27

  90 Bolt-Coach
Bolt-Coach
HA09379 Out of stock
Bolt-Coach
£1.62 £1.35

  91 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  92 Bearing 1/2
Bearing 1/2
HAHY300154 In stock
Bearing 1/2" Ball.Uralan Wheel
£3.72 £3.10

  94 Grassbag Complete Assembly
Grassbag Complete Assembly
HA305118 Out of stock
Grassbag Complete Assembly
£81.26 £67.72

  95 Axle Bush
Axle Bush
HA305108 Out of stock
Axle Bush
£7.19 £5.99


Description

Hayter Harrier 41 - Autodrive Mower - 306R

Serial No: 306R001001 - 306R099999

Mainframe Assembly
