Description

Hayter Harrier 19 - 083

Serial No: 083-42199 - 083-54025

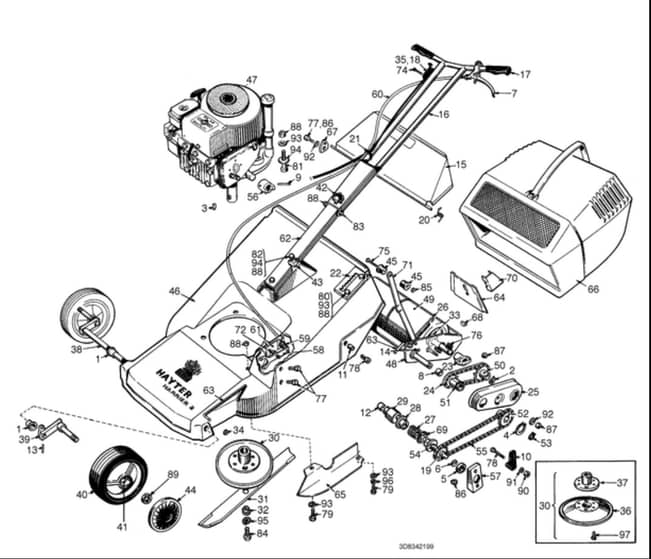

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  2 1/4-20 x 5/8 Hex Hd. Cap Screw
1/4-20 x 5/8 Hex Hd. Cap Screw
HA1428 Out of stock
1/4-20 x 5/8 Hex Hd. Cap Screw
£1.63 £1.36

  3 Key-Woodruff
Key-Woodruff
HA1662 In stock
Key-Woodruff
£1.46 £1.22

  4 Circlip Ext 3/4
Circlip Ext 3/4
HA02708 In stock
Circlip Ext 3/4"
£1.56 £1.30

  5 Bearing
Bearing
HA2562 Out of stock
Bearing
£9.43 £7.86

  6 Washer
Washer
HA02575 In stock
Washer
£1.63 £1.36

  11 Bolt Assy Axle Pivot
Bolt Assy Axle Pivot
HA5263 Out of stock
Bolt Assy Axle Pivot
£5.60 £4.67

  12 19 Nut
19 Nut
HA3296 Out of stock
19 Nut
£1.63 £1.36

  13 Pin-Spring. Selloc
Pin-Spring. Selloc
HAHY03354 In stock
Pin-Spring. Selloc
£1.58 £1.32

  14 Rivet Dia 3/16
Rivet Dia 3/16
HAHY03667 Out of stock
Rivet Dia 3/16"*1/2" Flat Hd
£1.60 £1.33

  16 Handlebar Upper
Handlebar Upper
HA3958 Out of stock
Handlebar Upper
£75.48 £62.90

  19 Sprocket 15T 3/4 A/F Hex Bore
Sprocket 15T 3/4 A/F Hex Bore
HA5426 Out of stock
Sprocket 15T 3/4 A/F Hex Bore
£38.60 £32.17

  20 Spring Deflector Plate
Spring Deflector Plate
HAHY5455 Out of stock
Spring Deflector Plate
£2.98 £2.48

  21 Spring - Clip
Spring - Clip
HA3966 Out of stock
Spring - Clip
£1.18 £0.98

  23 Housing Bearing Roller
Housing Bearing Roller
HA3971 Out of stock
Housing Bearing Roller
£9.43 £7.86

  26 Spring Rear Axle Tension
Spring Rear Axle Tension
HA5421 Out of stock
Spring Rear Axle Tension
£2.86 £2.38

  29 Shroud Clutch Moulding
Shroud Clutch Moulding
HA5408 Out of stock
Shroud Clutch Moulding
£4.51 £3.76

  31 Cutterbar 19
Cutterbar 19
HA4013 In stock
Cutterbar 19" For Harrier
£30.25 £25.21

  32 Drag Plate
Drag Plate
HA4014 Out of stock
Drag Plate
£11.52 £9.60

  33 Washer Nylon
Washer Nylon
HA4017 Out of stock
Washer Nylon
£2.75 £2.29

  34 Grip-Fix
Grip-Fix
HA04020 In stock
Grip-Fix
£1.62 £1.35

  38 Axle Front
Axle Front
HA4478 Out of stock
Axle Front
£49.36 £41.13

  39 Plate Front Axle N/S
Plate Front Axle N/S
HA4479 Out of stock
Plate Front Axle N/S
£47.26 £39.38

  40 Wheel-Ribbed
Wheel-Ribbed
HA111-1250 In stock
Wheel-Ribbed
£30.24 £25.20

  41 Bearing 1/2
Bearing 1/2
HA5221 Out of stock
Bearing 1/2" Ball Assy
£3.05 £2.54

  44 Cap Hub
Cap Hub
HA219143 Out of stock
Cap Hub
£7.26 £6.05

  53 Circlip
Circlip
HA03096 In stock
Circlip
£1.63 £1.36

  55 Chain 76 Pitch x 3/8
Chain 76 Pitch x 3/8
HA5418 Out of stock
Chain 76 Pitch x 3/8"& Spr Lnk
£17.70 £14.75

  57 Housing Bearing Drive Shaft
Housing Bearing Drive Shaft
HA5276 Out of stock
Housing Bearing Drive Shaft
£7.56 £6.30

  58 Fork Clutch
Fork Clutch
HAHY5277 Out of stock
Fork Clutch
£6.30 £5.25

  59 Spring Clutch Fork Compression
Spring Clutch Fork Compression
HAHY5278 Out of stock
Spring Clutch Fork Compression
£1.36 £1.13

  60 Ass-Y. Worm & Gear Box
Ass-Y. Worm & Gear Box
HA5406 Out of stock
Ass-Y. Worm & Gear Box
£28.61 £23.84

  64 Plate Cover
Plate Cover
HA5283 Out of stock
Plate Cover
£72.60 £60.50

  69 Cover Clutch Moulding
Cover Clutch Moulding
HA5414 Out of stock
Cover Clutch Moulding
£3.91 £3.26

  72 Spacer Clutch Fork
Spacer Clutch Fork
HA5404 Out of stock
Spacer Clutch Fork
£5.48 £4.57

  77 Setscrew Unf 1/4 x 5/8 S Qual
Setscrew Unf 1/4 x 5/8 S Qual
HA09039 Out of stock
Setscrew Unf 1/4 x 5/8 S Qual
£1.63 £1.36

  81 5/16
5/16
HA09345 Out of stock
5/16" Unf x 1 1/2" Bolt
£1.56 £1.30

  84 Screw Hex Hd 3/8 Unf x11/4
Screw Hex Hd 3/8 Unf x11/4
HA09116 Out of stock
Screw Hex Hd 3/8 Unf x11/4
£1.63 £1.36

  86 Nut
Nut
HA09201 Out of stock
Nut
£1.63 £1.36

  90 Nut
Nut
HA09207 Out of stock
Nut
£1.63 £1.36

  92 Washer-Plain
Washer-Plain
HA09261 Out of stock
Washer-Plain
£1.63 £1.36

  93 Washer-Plain
Washer-Plain
HA09266 Out of stock
Washer-Plain
£1.44 £1.20

  94 Washer-Plain
Washer-Plain
HA09267 Out of stock
Washer-Plain
£1.62 £1.35

  95 Washer-Spring
Washer-Spring
HA09273 In stock
Washer-Spring
£1.62 £1.35

  96 Washer-Spring
Washer-Spring
HA03469 Out of stock
Washer-Spring
£1.63 £1.36
