Description

Hayter Envoy 36 - 100J

Serial No: 316000101 - 399999999

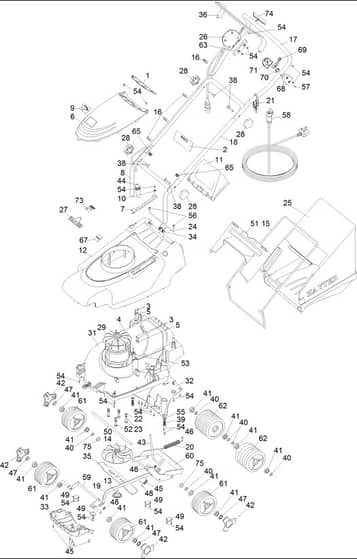

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Vent Mesh Asm
Vent Mesh Asm
HA111-0074 Out of stock
Vent Mesh Asm
£4.34 £3.62

  2 Decal-Safety. Electric
Decal-Safety. Electric
HA111-5173 Out of stock
Decal-Safety. Electric
£2.10 £1.75

  3 Screw
Screw
HA111-9903 Out of stock
Screw
£1.52 £1.27

  4 Screw
Screw
HA134-0439 Out of stock
Screw
£1.24 £1.03

  5 Clamp-Cable
Clamp-Cable
HA111-0117 Out of stock
Clamp-Cable
£119.99 £99.99

  6 Cover Electric Trim
Cover Electric Trim
HA111-0538 Out of stock
Cover Electric Trim
£52.26 £43.55

  7 Plate-Hoc
Plate-Hoc
HA111-0539 Out of stock
Plate-Hoc
£17.58 £14.65

  8 Handlebar-Lower
Handlebar-Lower
HA111-0540-03 Out of stock
Handlebar-Lower
£20.23 £16.86

  9 Decal Envoy Electric China Only)
Decal Envoy Electric China Only)
HA111-4441 Out of stock
Decal Envoy Electric China Only)
£3.64 £3.03

  10 Cover-Screw. Hoc
Cover-Screw. Hoc
HA111-0543 Out of stock
Cover-Screw. Hoc
£1.62 £1.35

  11 Deflector-Rear
Deflector-Rear
HA111-1042 Out of stock
Deflector-Rear
£21.65 £18.04

  12 Top Cover
Top Cover
HA111-1055 Out of stock
Top Cover
£61.34 £51.12

  13 Bolt-Fixing. Cutterbar
Bolt-Fixing. Cutterbar
HA134-3399 In stock
Bolt-Fixing. Cutterbar
£3.06 £2.55

  14 Carrier-Cutterbar
Carrier-Cutterbar
HA100014 Out of stock
Carrier-Cutterbar
£15.52 £12.93

  15 Frame-Grassbag
Frame-Grassbag
HA100016-03 Out of stock
Frame-Grassbag
£23.12 £19.27

  16 Clip-Cable
Clip-Cable
HA100023 Out of stock
Clip-Cable
£1.45 £1.21

  17 Handlebar-Upper
Handlebar-Upper
HA100024 Out of stock
Handlebar-Upper
£60.36 £50.30

  18 Handlebar-Middle
Handlebar-Middle
HA100025-03 Out of stock
Handlebar-Middle
£23.86 £19.88

  19 Rod-Connecting
Rod-Connecting
HA100037 Out of stock
Rod-Connecting
£9.70 £8.08

  20 Spring-Balance. Counter
Spring-Balance. Counter
HA100080 Out of stock
Spring-Balance. Counter
£1.24 £1.03

  21 Cleat-Cable
Cleat-Cable
HA100105 Out of stock
Cleat-Cable
£3.86 £3.22

  22 Washer
Washer
HA09475 Out of stock
Washer
£1.63 £1.36

  23 Washer-Spring
Washer-Spring
HA03469 Out of stock
Washer-Spring
£1.63 £1.36

  24 Rod-Deflector
Rod-Deflector
HA100126 Out of stock
Rod-Deflector
£1.92 £1.60

  25 Grassbag - Fabric
Grassbag - Fabric
HA100513 Out of stock
Grassbag - Fabric
£54.48 £45.40

  26 Switch - Assy/ Trailing Lead
Switch - Assy/ Trailing Lead
HA100515 In stock
Switch - Assy/ Trailing Lead
£39.04 £32.53

  27 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  28 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  31 Underdeck
Underdeck
HAHY100003 Out of stock
Underdeck
£98.70 £82.25

  32 Throwplate
Throwplate
HAHY100004 Out of stock
Throwplate
£19.02 £15.85

  33 Fins
Fins
HAHY100006 Out of stock
Fins
£25.37 £21.14

  34 Spring-Deflector
Spring-Deflector
HA111-7417 Out of stock
Spring-Deflector
£1.42 £1.18

  35 Cutterbar
Cutterbar
HAHY100012 In stock
Cutterbar
£26.53 £22.11

  36 Arm-Bail
Arm-Bail
HA134-2162 Out of stock
Arm-Bail
£7.44 £6.20

  38 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  40 Spacer-Wheel. Rear
Spacer-Wheel. Rear
HAHY100030 Out of stock
Spacer-Wheel. Rear
£1.43 £1.19

  41 Bearing-Wheel
Bearing-Wheel
HAHY100033 Out of stock
Bearing-Wheel
£4.16 £3.47

  42 Hub Cap
Hub Cap
HAHY100036 Out of stock
Hub Cap
£1.84 £1.53

  43 Lever-Hoc
Lever-Hoc
HAHY100038 Out of stock
Lever-Hoc
£4.84 £4.03

  45 Spring-Hoc
Spring-Hoc
HAHY100041 Out of stock
Spring-Hoc
£1.43 £1.19

  46 Pin-Spring. Hoc
Pin-Spring. Hoc
HAHY100042 Out of stock
Pin-Spring. Hoc
£1.22 £1.02

  48 Washer-Starlock
Washer-Starlock
HA0201086 In stock
Washer-Starlock
£1.62 £1.35

  49 Plate-Pivot. Axle
Plate-Pivot. Axle
HAHY100064 Out of stock
Plate-Pivot. Axle
£1.43 £1.19

  50 Rod-Axle. Rear
Rod-Axle. Rear
HAHY100068 Out of stock
Rod-Axle. Rear
£11.21 £9.34

  51 Top-Grassbag
Top-Grassbag
HAHY100075 Out of stock
Top-Grassbag
£19.08 £15.90

  52 Bolt-Motor
Bolt-Motor
HAHY100076 Out of stock
Bolt-Motor
£1.22 £1.02

  53 Block-Terminal
Block-Terminal
HAHY100077 Out of stock
Block-Terminal
£1.43 £1.19

  54 Screw
Screw
HAHY100078 Out of stock
Screw
£1.50 £1.25

  55 Washer
Washer
HAHY100079 Out of stock
Washer
£1.43 £1.19

  56 Screw
Screw
HA09687 In stock
Screw
£1.62 £1.35

  58 Main Lead
Main Lead
HAHY100135 Out of stock
Main Lead
£49.90 £41.58

  59 Front Axle Asm
Front Axle Asm
HAHY100503 Out of stock
Front Axle Asm
£29.26 £24.38

  60 Rear Axle Asm
Rear Axle Asm
HAHY100504 Out of stock
Rear Axle Asm
£27.65 £23.04

  61 Wheel Asm
Wheel Asm
HAHY100505 Out of stock
Wheel Asm
£13.87 £11.56

  62 Wheel Assy Wide
Wheel Assy Wide
HAHY100506 Out of stock
Wheel Assy Wide
£14.50 £12.08

  63 Switch-Left. Lower
Switch-Left. Lower
HAHY100021 Out of stock
Switch-Left. Lower
£1.86 £1.55

  67 Decal-Hoc
Decal-Hoc
HA320006 In stock
Decal-Hoc
£1.62 £1.35

  68 Mount-Left
Mount-Left
HA100085 Out of stock
Mount-Left
£1.45 £1.21

  69 Lever-Mount
Lever-Mount
HAHY100088 Out of stock
Lever-Mount
£1.43 £1.19

  70 Spring-Bailarm
Spring-Bailarm
HAHY100087 Out of stock
Spring-Bailarm
£1.22 £1.02

  71 Mount-Right
Mount-Right
HA100086 Out of stock
Mount-Right
£1.45 £1.21

  73 Made In Britain Decal
Made In Britain Decal
HA111-7722 Out of stock
Made In Britain Decal
£1.45 £1.21

  74 Decal - Restarting Motor
Decal - Restarting Motor
HA111-7418 Out of stock
Decal - Restarting Motor
£2.16 £1.80

  75 Washer-Plain
Washer-Plain
HAZWP1L000U Out of stock
Washer-Plain
£2.12 £1.77


Description

Hayter Envoy 36 - 100J

Serial No: 316000101 - 399999999

Mainframe Assembly - Parts Diagram
