Hayter Envoy 36 - 100D (100D260000001 - 100D260999999) - Mainframe Assembly

Hayter Envoy 36 - 100D (100D260000001 - 100D260999999) - Mainframe Assembly
Hayter Envoy 36 - 100D (100D260000001 - 100D260999999) - Mainframe Assembly

Description

Hayter Envoy 36 - 100D

Serial No: 100D260000001 - 100D260999999

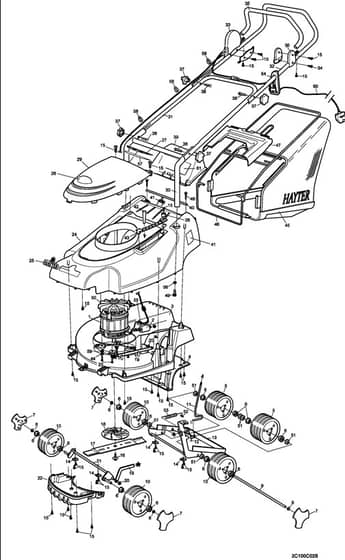

Mainframe Assembly - Parts Diagram

Ref. Img. Part No. Details
  3 Underdeck
Underdeck
HAHY100003 Out of stock
Underdeck
£98.70 £82.25

  4 Throwplate
Throwplate
HAHY100004 Out of stock
Throwplate
£19.02 £15.85

  5 Wheel - Wide Assy
Wheel - Wide Assy
HA100506 Out of stock
Wheel - Wide Assy
£11.30 £9.42

  7 Hub Cap
Hub Cap
HAHY100036 Out of stock
Hub Cap
£1.84 £1.53

  9 Rod-Axle. Rear
Rod-Axle. Rear
HAHY100068 Out of stock
Rod-Axle. Rear
£11.21 £9.34

  10 Assy.-Bracket
Assy.-Bracket
HA100505 Out of stock
Assy.-Bracket
£10.81 £9.01

  11 Lever-Hoc
Lever-Hoc
HAHY100038 Out of stock
Lever-Hoc
£4.84 £4.03

  12 Spring-Hoc
Spring-Hoc
HAHY100041 Out of stock
Spring-Hoc
£1.43 £1.19

  13 Rear Axle Assy
Rear Axle Assy
HA100504 Out of stock
Rear Axle Assy
£21.55 £17.96

  14 Plate - Axle Pivot
Plate - Axle Pivot
HA100064 Out of stock
Plate - Axle Pivot
£1.14 £0.95

  15 Screw
Screw
HAHY100078 Out of stock
Screw
£1.50 £1.25

  16 Bolt-Fixing. Cutterbar (Nylon)
Bolt-Fixing. Cutterbar (Nylon)
HA134-3399 In stock
Bolt-Fixing. Cutterbar (Nylon)
£3.06 £2.55

  17 Cutterbar
Cutterbar
HAHY100012 In stock
Cutterbar
£26.53 £22.11

  18 Carrier-Cutterbar
Carrier-Cutterbar
HA100014 Out of stock
Carrier-Cutterbar
£15.52 £12.93

  19 Rod-Connecting
Rod-Connecting
HA100037 Out of stock
Rod-Connecting
£9.70 £8.08

  20 Starlock - 8mm
Starlock - 8mm
HA100048 Out of stock
Starlock - 8mm
£1.14 £0.95

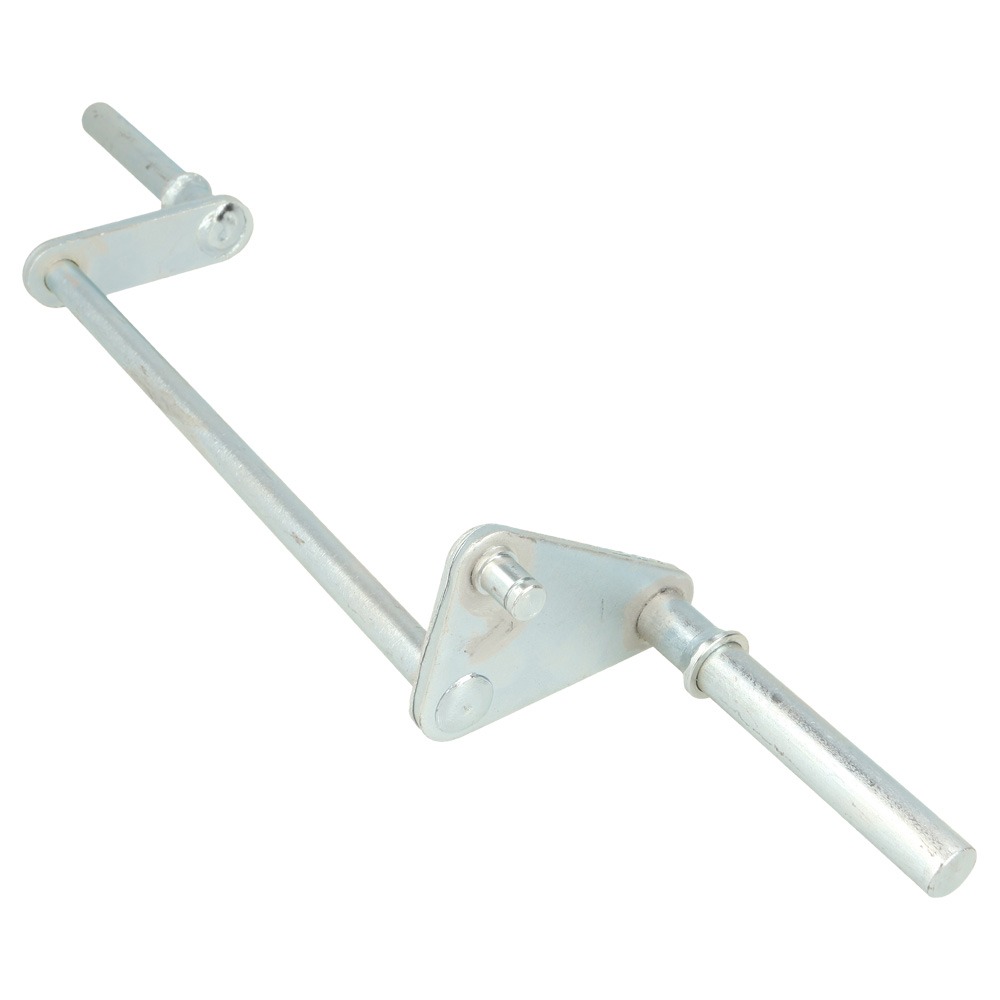

  21 Front Axle Asm
Front Axle Asm
HAHY100503 Out of stock
Front Axle Asm
£29.26 £24.38

  22 Fins
Fins
HAHY100006 Out of stock
Fins
£25.37 £21.14

  24 Cover - Main
Cover - Main
HA111-1055 Out of stock
Cover - Main
£61.34 £51.12

  25 Decal
Decal
HA410087 In stock
Decal
£4.79 £3.99

  26 Cover-Screw. Hoc
Cover-Screw. Hoc
HA111-0543 Out of stock
Cover-Screw. Hoc
£1.62 £1.35

  28 Decal - Envoy
Decal - Envoy
HA111-0542 Out of stock
Decal - Envoy
£3.78 £3.15

  29 Cover Electric Trim
Cover Electric Trim
HA111-0538 Out of stock
Cover Electric Trim
£52.26 £43.55

  30 Handlebar-Lower
Handlebar-Lower
HA111-0540-03 Out of stock
Handlebar-Lower
£20.23 £16.86

  31 Handlebar-Middle
Handlebar-Middle
HA100025-03 Out of stock
Handlebar-Middle
£23.86 £19.88

  32 Handlebar-Upper
Handlebar-Upper
HA100024 Out of stock
Handlebar-Upper
£60.36 £50.30

  33 Switch - Assy/ Trailing Lead
Switch - Assy/ Trailing Lead
HA100515 In stock
Switch - Assy/ Trailing Lead
£39.04 £32.53

  35 Arm-Bail
Arm-Bail
HA134-2162 Out of stock
Arm-Bail
£7.44 £6.20

  36 Mount Bail Arm Asm
Mount Bail Arm Asm
HAHY100510 Out of stock
Mount Bail Arm Asm
£6.88 £5.73

  37 Knob-Handlebar
Knob-Handlebar
HA480088 In stock
Knob-Handlebar
£5.35 £4.46

  38 Bolt-Handlebar
Bolt-Handlebar
HAHY226024 In stock
Bolt-Handlebar
£1.60 £1.33

  39 Deflector - Rear
Deflector - Rear
HA111-1042 Out of stock
Deflector - Rear
£21.65 £18.04

  40 Rod-Deflector
Rod-Deflector
HA100126 Out of stock
Rod-Deflector
£1.92 £1.60

  41 Spring-Deflector
Spring-Deflector
HA111-7417 Out of stock
Spring-Deflector
£1.42 £1.18

  43 Plate-Hoc
Plate-Hoc
HA111-0539 Out of stock
Plate-Hoc
£17.58 £14.65

  44 Washer-Spring
Washer-Spring
HA100119 Out of stock
Washer-Spring
£1.24 £1.03

  45 Grassbag - Fabric
Grassbag - Fabric
HA100513 Out of stock
Grassbag - Fabric
£54.48 £45.40

  46 Frame-Grassbag
Frame-Grassbag
HA100016-03 Out of stock
Frame-Grassbag
£23.12 £19.27

  47 Top-Grassbag
Top-Grassbag
HAHY100075 Out of stock
Top-Grassbag
£19.08 £15.90

  48 Screw - M6 x 20
Screw - M6 x 20
HA100127 Out of stock
Screw - M6 x 20
£1.18 £0.98

  49 Bolt-Plastic
Bolt-Plastic
HAHY100029 In stock
Bolt-Plastic
Was £1.54 £1.28 Special Price £0.72 £0.60

  51 Spacer-Wheel. Rear
Spacer-Wheel. Rear
HAHY100030 Out of stock
Spacer-Wheel. Rear
£1.43 £1.19

  53 Spring-Balance. Counter
Spring-Balance. Counter
HA100080 Out of stock
Spring-Balance. Counter
£1.24 £1.03

  54 Cleat-Cable
Cleat-Cable
HA100105 Out of stock
Cleat-Cable
£3.86 £3.22

  55 Block-Terminal
Block-Terminal
HAHY100077 Out of stock
Block-Terminal
£1.43 £1.19

  56 Washer
Washer
HAHY100079 Out of stock
Washer
£1.43 £1.19

  57 Vent Mesh Grille
Vent Mesh Grille
HA111-0075 Out of stock
Vent Mesh Grille
£6.62 £5.52

  58 Clip-Cable
Clip-Cable
HA100023 Out of stock
Clip-Cable
£1.45 £1.21

  59 Washer
Washer
HA100106 Out of stock
Washer
£1.24 £1.03

  60 Main Lead
Main Lead
HAHY100135 Out of stock
Main Lead
£49.90 £41.58

  61 Decal Caution
Decal Caution
HA111-0084 Out of stock
Decal Caution
£2.36 £1.97


Description

Hayter Envoy 36 - 100D

Serial No: 100D260000001 - 100D260999999

Mainframe Assembly - Parts Diagram
