Hayter Cab For Ride-On Products - 917P - Fittings

Name: Hayter Cab For Ride-On Products - 917P - Fittings
SKU: cab for ride on products psei77 fittings-group
Price: 1.22 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Cab For Ride-On Products - 917P - Fittings

Description

Hayter Cab For Ride-On Products - 917P

Serial No: 917P001001 - 917P001013

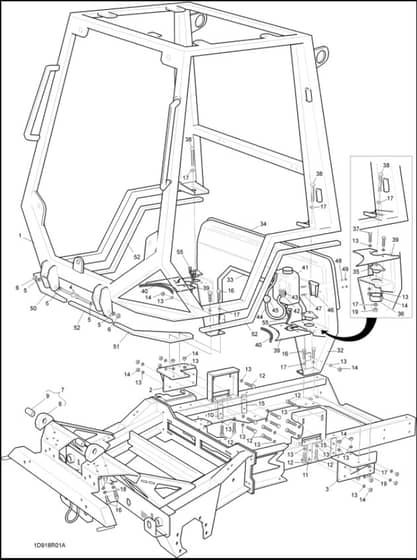

Fittings - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA919002G Out of stock	Bracket - Cab Support W/A R.H.	£193.80 £161.50
3	HA919003G Out of stock	Bracket - Cab Support W/A L.H.	£193.80 £161.50
4	HAZBH1P100U Out of stock	Bolt	£193.80 £161.50
5	HA09491 Out of stock	Washer-Plain	£1.66 £1.38
6	HA09456 Out of stock	Nut	£1.63 £1.36
8	HA919007G Out of stock	Block - Cab Pivot	£193.80 £161.50
9	HA919008 Out of stock	Mount - Isolating	£193.80 £161.50
10	HA918014G Out of stock	Plate - Backing Front R.H.	£193.80 £161.50
11	HA918015G Out of stock	Plate - Backing Front L.H.	£193.80 £161.50
13	HA09479 Out of stock	Washer-Plain	£1.62 £1.35
14	HA09447 In stock	Nut	£1.63 £1.36
15	HA918016G Out of stock	Plate - Backing Rear	£193.80 £161.50
16	HAZDH1L035U Out of stock	Bolt - Hex Hd M12 x 35	£2.02 £1.68
17	HAHY09485 Out of stock	Washer-Plain	£1.63 £1.36
19	HAZNN1L000U Out of stock	Nut - Nyloc M12	£1.63 £1.36
20	HA74-07-043 Out of stock	Seat Belt Static	£193.80 £161.50
26	HAHY09222 In stock	Nut Unf 7/16" Nyl Ins T Type	£1.60 £1.33
28	HA09631 Out of stock	Bolt	£1.63 £1.36
29	HAZNH1H000U Out of stock	Nut M8 Plain	£1.63 £1.36
30	HA09475 Out of stock	Washer	£1.63 £1.36
31	HA09442 Out of stock	Nut	£1.63 £1.36
34	HA70-07-070 Out of stock	Strip-Protection	£193.80 £161.50
37	HA09611 Out of stock	Bolt-HH	£1.63 £1.36
39	HA919009 Out of stock	Infill - Cab	£193.80 £161.50
44	HA74-07-084 Out of stock	Tube - 4mm I/D Washer	£193.80 £161.50
46	HA74-07-098 Out of stock	Bracket - Washer Bottle.	£193.80 £161.50
47	HAZDH1E020U Out of stock	Screw-HH	£1.94 £1.62
49	HA09470 Out of stock	Washer	£1.46 £1.22
50	HA915022 Out of stock	Seal - Front Lower Trim R.H.	£193.80 £161.50
51	HA915021 Out of stock	Seal - Front Lower Trim L.H.	£193.80 £161.50
54	HA924616 Out of stock	Lens - Wiper / Washer	£193.80 £161.50
55	HA915070 Out of stock	Harness - Wiper / Washer	£193.80 £161.50
56	HA70-09-025 Out of stock	Fuse-5A	£193.80 £161.50
