Hayter Ambassador 2 - 064 (064-007067 - 064-099999) - Transmission Assembly

Description

Hayter Ambassador 2 - 064

Serial No: 064-007067 - 064-099999

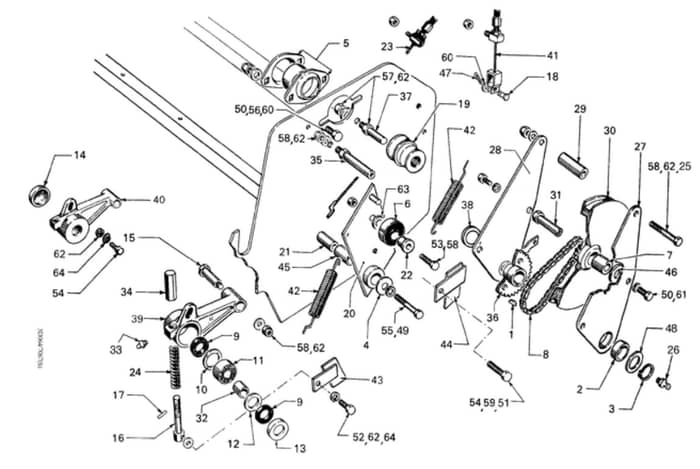

Transmission Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA1662 In stock	Key-Woodruff	£1.46 £1.22
7	HAHY3070 Out of stock	Oilite Bush 3/81/21.1/4	£3.22 £2.68
9	HA03078 Out of stock	Seal Felt 1 7/16 x 7/8 x 3/16	£6.08 £5.07
10	HA3079 Out of stock	Washer Spacer	£31.67 £26.39
11	HA3080 Out of stock	Front Wheel Ass-Y.	£53.64 £44.70
18	HA4265 Out of stock	Pin Clevis	£4.73 £3.94
21	HA4692 Out of stock	Sleeve Bearing Plate	£9.10 £7.58
25	HA09091 Out of stock	Bolt Unf 5/16 x 2.1/4 S Qual	£1.32 £1.10
26	HA10-11-017 Out of stock	Nipple Bsp 1/8 Hyd Straight	£2.12 £1.77
29	HA4700 Out of stock	Spacer Roller Dr Pulley Plate	£11.18 £9.32
37	HA4710 Out of stock	Pin Reel Drive Belt	£5.50 £4.58
39	HA4719 Out of stock	Arm Reel Support N/S	£72.60 £60.50
40	HA4720 Out of stock	Arm Reel Support O/S	£72.60 £60.50
43	HA4726 Out of stock	Closer Reel Slot	£44.54 £37.12
45	HA4730 Out of stock	Bush 5/8 x 3/4 x 1 Oilite	£2.22 £1.85
47	HA09303 Out of stock	1/2"x3/32" Split Pin	£1.63 £1.36
48	HA09295 Out of stock	Washer 1 x 1.7/8 x 15G Plain	£1.56 £1.30
49	HA09273 In stock	Washer-Spring	£1.62 £1.35
50	HA09036 Out of stock	Setscrew Unf 1/4 x 1/2 S Qual	£1.40 £1.17
51	HA09271 Out of stock	Washer-Plain	£1.63 £1.36
54	HA09068 Out of stock	Setscrew Unf 5/16 x 5/8 S Qual	£1.63 £1.36
55	HA09121 Out of stock	Bolt	£1.63 £1.36
56	HA09201 Out of stock	Nut	£1.63 £1.36
57	HA09207 Out of stock	Nut	£1.63 £1.36
59	HA09216 Out of stock	Nut-Hex. Ni	£1.63 £1.36
60	HA09261 Out of stock	Washer-Plain	£1.63 £1.36
62	HA09266 Out of stock	Washer-Plain	£1.44 £1.20
63	HA09267 Out of stock	Washer-Plain	£1.62 £1.35
64	HA03469 Out of stock	Washer-Spring	£1.63 £1.36
