Hayter Ambassador 2 - 064 (064-007067 - 064-099999) - Mainframe Assembly

Name: Hayter Ambassador 2 - 064 (064-007067 - 064-099999) - Mainframe Assembly
SKU: ambassador 2 psei580 mainframe assembly-group
Price: 0.81 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Ambassador 2 - 064 (064-007067 - 064-099999) - Mainframe Assembly

Description

Hayter Ambassador 2 - 064

Serial No: 064-007067 - 064-099999

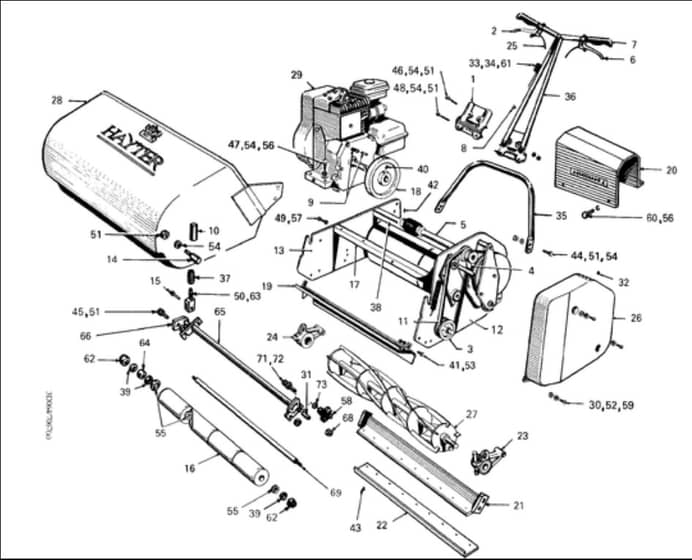

Mainframe Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	HA3094 Out of stock	Belt V Tso Terylene	£9.79 £8.16
8	HA3966 Out of stock	Spring - Clip	£1.18 £0.98
11	HA4672 Out of stock	Belt Marked Hayter 4672	£31.14 £25.95
12	HAHY5710 Out of stock	Plate Frame N/S	£280.13 £233.44
15	HA3101 Out of stock	Pin Clevis	£3.13 £2.61
22	HA3233 Out of stock	Bedknife 20.1/4"	£95.16 £79.30
23	HA4719 Out of stock	Arm Reel Support N/S	£72.60 £60.50
24	HA4720 Out of stock	Arm Reel Support O/S	£72.60 £60.50
30	HA4734 Out of stock	Screw Unf 1/4 x 1/2 Pan Hd	£0.97 £0.81
31	HAHY3070 Out of stock	Oilite Bush 3/81/21.1/4	£3.22 £2.68
33	HA5503 Out of stock	Throttle Contr 5918/L1	£30.05 £25.04
35	HAHY5660 Out of stock	Handlebar Lower	£39.71 £33.09
37	HA3045 Out of stock	Spring Height Adjuster	£13.32 £11.10
39	HA09280 Out of stock	Washer-Plain	£1.56 £1.30
42	HA09064 Out of stock	Setscrew Unf 5/16x3/8 Hex Skt	£1.63 £1.36
45	HA09068 Out of stock	Setscrew Unf 5/16 x 5/8 S Qual	£1.63 £1.36
47	HA09345 Out of stock	5/16" Unf x 1 1/2" Bolt	£1.56 £1.30
49	HA09114 Out of stock	3/8" Unf x 1" Setscrew	£1.63 £1.36
52	HA09261 Out of stock	Washer-Plain	£1.63 £1.36
54	HA09266 Out of stock	Washer-Plain	£1.44 £1.20
55	HA09454 Out of stock	Nut-Hex	£1.58 £1.32
56	HA03469 Out of stock	Washer-Spring	£1.63 £1.36
57	HA09273 In stock	Washer-Spring	£1.62 £1.35
58	HA226013 In stock	Triangular Handwheel	£6.80 £5.67
68	HA09216 Out of stock	Nut-Hex. Ni	£1.63 £1.36

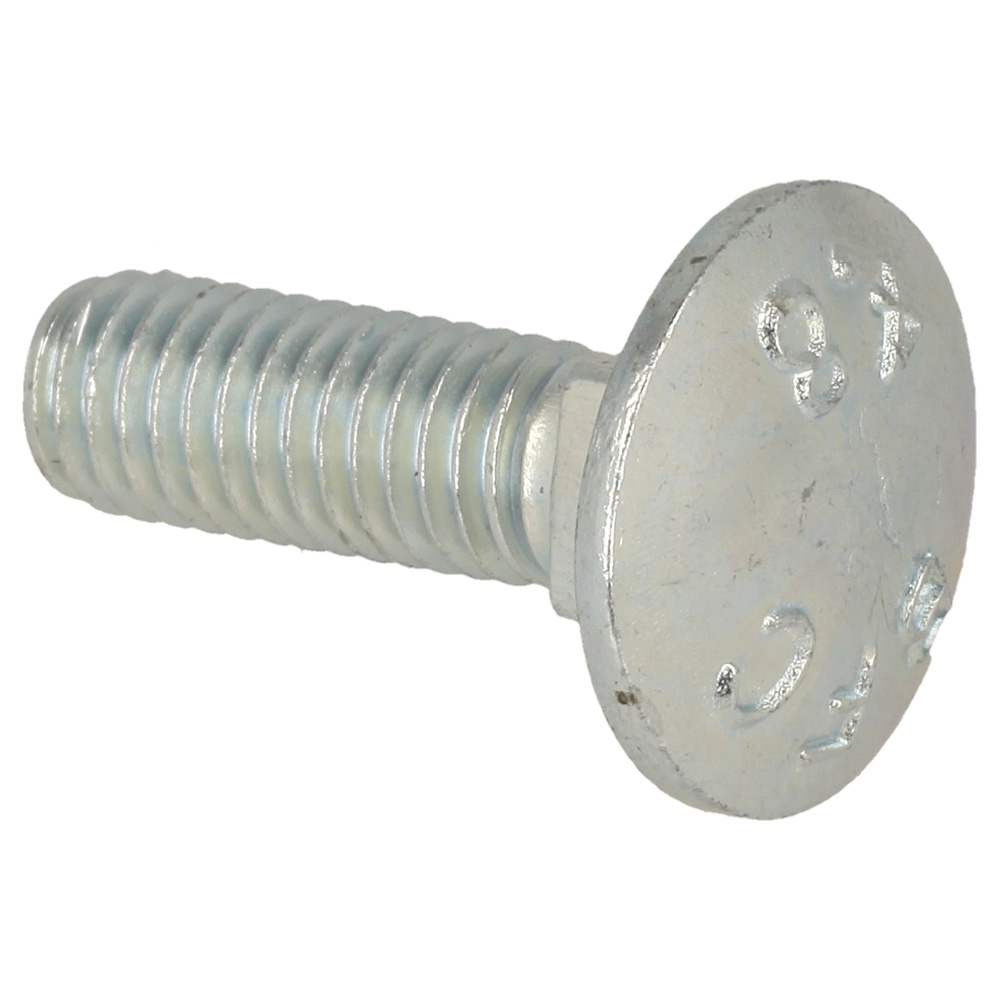

71	HA09373 Out of stock	Bolt-Coach	£1.52 £1.27
73	HA09475 Out of stock	Washer	£1.63 £1.36
