Genuine Stihl MS881 / B - Clutch, Oil pump, Chain brake

Genuine Stihl MS881 / B - Clutch, Oil pump, Chain brake
Genuine Stihl MS881 / B - Clutch, Oil pump, Chain brake

Description

Genuine Stihl MS881 / B - Clutch, Oil pump, Chain brake
Ref. Img. Part No. Details
  1 Clutch ((80 Nm))
Clutch ((80 Nm))
ST1124 160 2005 Out of stock
Clutch ((80 Nm))
£79.92 £66.60

  2 Clutch Shoe
Clutch Shoe
ST1124 162 0805 Out of stock
Clutch Shoe
£14.08 £11.73

  3 Retainer
Retainer
ST1124 162 3000 Out of stock
Retainer
£1.50 £1.25

  4 Tension Spring
Tension Spring
ST0000 997 5818 Out of stock
Tension Spring
£2.15 £1.79

  5 Needle Cage 12x17x13
Needle Cage 12x17x13
ST9512 933 3170 Out of stock
Needle Cage 12x17x13
£9.68 £8.07

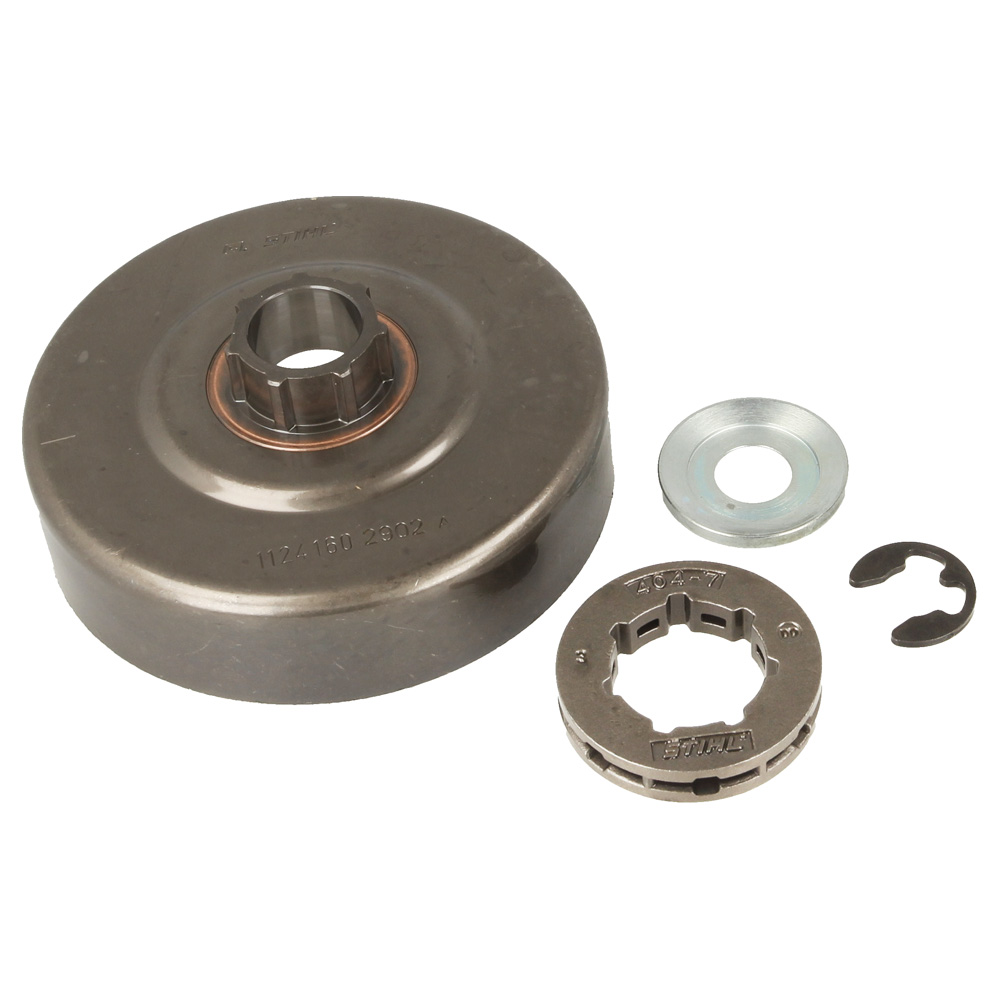

  6 Rim sprocket kit .404
Rim sprocket kit .404
ST1124 007 2500 Out of stock
Rim sprocket kit .404" 7T (Contains Items 7-9)
£60.84 £50.70

  7 Rim Sprocket 0.404
Rim Sprocket 0.404
ST0000 642 1207 Out of stock
Rim Sprocket 0.404" 7T
£13.57 £11.31

  8 Washer
Washer
ST0000 958 1236 Out of stock
Washer
£2.36 £1.97

  9 E-Clip 10x1.5
E-Clip 10x1.5
ST9460 624 1001 In stock
E-Clip 10x1.5
£0.37 £0.31

  10 Rim sprocket kit 3/8
Rim sprocket kit 3/8
ST1124 007 2501 Out of stock
Rim sprocket kit 3/8" 8T (Contains Items 8, 9, 11)
£60.84 £50.70

  11 Rim Sprocket 3/8
Rim Sprocket 3/8
ST0000 642 1216 Out of stock
Rim Sprocket 3/8" 8T
£13.57 £11.31

  12 Chain sprocket cover (Contains Item(s): 13 - 17)
Chain sprocket cover (Contains Item(s): 13 - 17)
ST1124 640 1709 Out of stock
Chain sprocket cover (Contains Item(s): 13 - 17)
£91.20 £76.00

  13 Guard
Guard
ST1124 656 1501 Out of stock
Guard
£17.40 £14.50

  14 Bumper Strip
Bumper Strip
ST1121 648 6610 In stock
Bumper Strip
£2.05 £1.71

  15 Cover Plate
Cover Plate
ST1124 656 2800 Out of stock
Cover Plate
£4.78 £3.98

  16 Self-tapping screw A4x10
Self-tapping screw A4x10
ST9076 478 2965 Out of stock
Self-tapping screw A4x10
£0.00 £0.00

  17 Nut
Nut
ST0000 995 0805 Out of stock
Nut
£4.32 £3.60

  18 Cover
Cover
ST1124 021 1121 Out of stock
Cover
£6.48 £5.40

  19 Spline Screw Is-M4x12 (Binding Thread.(3 Nm))
Spline Screw Is-M4x12 (Binding Thread.(3 Nm))
ST9022 313 0660 Out of stock
Spline Screw Is-M4x12 (Binding Thread.(3 Nm))
£0.86 £0.72

  20 Brake Band
Brake Band
ST1124 160 5400 Out of stock
Brake Band
£26.81 £22.34

  22 Tension Spring
Tension Spring
ST1124 160 5500 Out of stock
Tension Spring
£4.52 £3.77

  23 Hose 20mm / 13/16
Hose 20mm / 13/16
ST1125 162 8002 Out of stock
Hose 20mm / 13/16"
£3.52 £2.93

  24 Lever
Lever
ST1124 160 5000 Out of stock
Lever
£10.69 £8.91

  25 E-Clip 4
E-Clip 4
ST9460 624 0400 In stock
E-Clip 4
£0.48 £0.40

  26 Lever
Lever
ST1121 162 5010 Out of stock
Lever
£1.90 £1.58

  27 Spring
Spring
ST0000 997 0628 In stock
Spring
£1.45 £1.21

  28 Washer
Washer
ST1124 162 8901 Out of stock
Washer
£6.48 £5.40

  31 Worm Gear
Worm Gear
ST1124 640 7100 Out of stock
Worm Gear
£13.08 £10.90

  32 Oil pump (1.2 mm stroke) (Contains Items 34 - 39)
Oil pump (1.2 mm stroke) (Contains Items 34 - 39)
ST1124 640 3204 Out of stock
Oil pump (1.2 mm stroke) (Contains Items 34 - 39)
£159.24 £132.70

  33 Oil pump (1.6 mm stroke) (Contains Item(s): 34 - 38, 40)
Oil pump (1.6 mm stroke) (Contains Item(s): 34 - 38, 40)
ST1124 640 3206 Out of stock
Oil pump (1.6 mm stroke) (Contains Item(s): 34 - 38, 40)
£159.24 £132.70

  34 Bearing Bushing
Bearing Bushing
ST1125 641 9400 Out of stock
Bearing Bushing
£5.17 £4.31

  35 Washer
Washer
ST0000 958 0611 Out of stock
Washer
£1.26 £1.05

  36 Compression Spring
Compression Spring
ST0000 997 0629 Out of stock
Compression Spring
£1.26 £1.05

  37 O-Ring 4x2
O-Ring 4x2
ST9646 945 0160 Out of stock
O-Ring 4x2
£0.50 £0.42

  38 Roll Pin 2x10
Roll Pin 2x10
ST9380 620 1090 Out of stock
Roll Pin 2x10
£0.40 £0.33

  41 Spline Screw Is-M4x12 (Micro-Encapsulated With Binding Thread.(3.5 Nm))
Spline Screw Is-M4x12 (Micro-Encapsulated With Binding Thread.(3.5 Nm))
ST9022 346 0658 Out of stock
Spline Screw Is-M4x12 (Micro-Encapsulated With Binding Thread.(3.5 Nm))
£0.86 £0.72

  42 Sealing Ring B4x2
Sealing Ring B4x2
ST1122 649 5000 Out of stock
Sealing Ring B4x2
£1.00 £0.83

  43 Inner Side Plate
Inner Side Plate
ST1124 664 1001 Out of stock
Inner Side Plate
£13.08 £10.90

  45 Outer Side Plate
Outer Side Plate
ST1124 664 1100 Out of stock
Outer Side Plate
£8.06 £6.72

  46 Self-Tapping Screw M3x8
Self-Tapping Screw M3x8
ST9039 488 0340 Out of stock
Self-Tapping Screw M3x8
£0.76 £0.63

  47 Spur Gear / Chain Adjusting Screw Kit
Spur Gear / Chain Adjusting Screw Kit
ST1124 007 1008 Out of stock
Spur Gear / Chain Adjusting Screw Kit
£13.70 £11.42

  48 O-Ring 7x1.5
O-Ring 7x1.5
ST9646 945 0490 Out of stock
O-Ring 7x1.5
£0.50 £0.42

  49 Tensioner Slide
Tensioner Slide
ST1124 640 1900 Out of stock
Tensioner Slide
£4.00 £3.33

  50 Support
Support
ST1124 664 4500 Out of stock
Support
£2.92 £2.43

  51 Spring Washer
Spring Washer
ST1124 664 5300 Out of stock
Spring Washer
£2.29 £1.91

  52 Cover Plate
Cover Plate
ST1124 664 2210 Out of stock
Cover Plate
£4.18 £3.48

  53 Thrust Pad
Thrust Pad
ST1124 664 1400 Out of stock
Thrust Pad
£1.50 £1.25

  55 Spline Screw Is-M6x18 (Binding Thread.(7.5 Nm))
Spline Screw Is-M6x18 (Binding Thread.(7.5 Nm))
ST9022 341 1310 Out of stock
Spline Screw Is-M6x18 (Binding Thread.(7.5 Nm))
£1.00 £0.83

  54 Deflector
Deflector
ST1124 664 3600 Out of stock
Deflector
£4.02 £3.35

  56 Hand Guard (Contains Items 59-61)
Hand Guard (Contains Items 59-61)
ST1124 790 9101 Out of stock
Hand Guard (Contains Items 59-61)
£63.00 £52.50

  59 Bushing
Bushing
ST1124 792 5505 Out of stock
Bushing
£3.78 £3.15

  60 Bushing
Bushing
ST1124 792 5500 Out of stock
Bushing
£4.02 £3.35

  61 Spline Screw Is-M5x35 (Binding Thread.(7 Nm))
Spline Screw Is-M5x35 (Binding Thread.(7 Nm))
ST9022 341 1080 Out of stock
Spline Screw Is-M5x35 (Binding Thread.(7 Nm))
£1.39 £1.16

  63 Bumper Spike
Bumper Spike
ST1124 664 0502 Out of stock
Bumper Spike
£15.20 £12.67

  65 Chain Catcher ((6 Nm))
Chain Catcher ((6 Nm))
ST1124 650 7700 Out of stock
Chain Catcher ((6 Nm))
£8.20 £6.83

  66 Hexagon Head Screw M6x16
Hexagon Head Screw M6x16
ST9008 319 1280 In stock
Hexagon Head Screw M6x16
£0.48 £0.40

  67 Lock Nut M6 ((7.5 Nm))
Lock Nut M6 ((7.5 Nm))
ST9214 320 0900 In stock
Lock Nut M6 ((7.5 Nm))
£0.46 £0.38

  69 Chain Sprocket Cover
Chain Sprocket Cover
ST1124 640 1702 Out of stock
Chain Sprocket Cover
£70.68 £58.90

  70 Guard
Guard
ST1124 656 1505 Out of stock
Guard
£15.97 £13.31

  71 Self-Tapping Screw 3.9x13
Self-Tapping Screw 3.9x13
ST9099 021 2770 Out of stock
Self-Tapping Screw 3.9x13
£0.74 £0.62

  72 Nut M10
Nut M10
ST0000 955 0903 Out of stock
Nut M10
£2.89 £2.41
