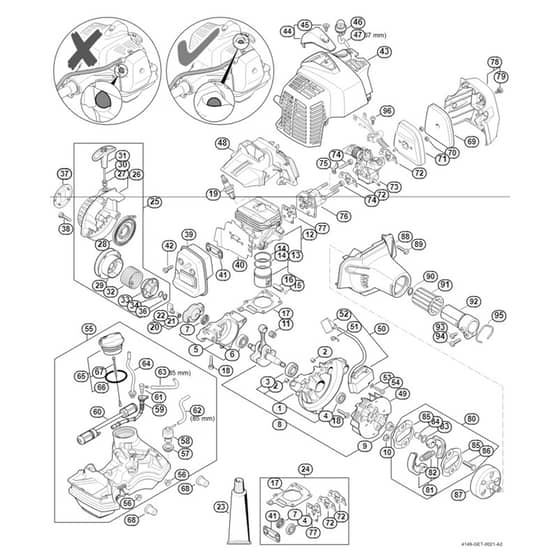

Genuine Stihl HL92 C-E / B - Engine up to Serial Number 514159667

Name: Genuine Stihl HL92 C-E / B - Engine up to Serial Number 514159667
SKU: HL92_C-E_B-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl HL92 C-E / B - Engine up to Serial Number 514159667

Description

Genuine Stihl HL92 C-E / B - Engine up to serial number 514159667

Be the first to review this product

0 product questions

	Part No.	Details
1	ST4149 020 2601 Out of stock	Crankcase, Fan Side (Contains Items 2-4)	£76.44 £63.70
2	ST0000 988 8600 In stock	Sleeve	£1.20 £1.00
3	ST9503 003 0215 Out of stock	Grooved Ball Bearing 6304	£12.47 £10.39
4	ST9640 003 1195 In stock	Oil Seal 12x22x5	£5.78 £4.82
5	ST4149 020 2903 Out of stock	Crankcase (Contains Items 6, 7)	£75.24 £62.70
6	ST9503 003 0102 Out of stock	Grooved Ball Bearing 6000	£12.47 £10.39
7	ST9640 003 0955 In stock	Oil Seal 10x20x4	£4.78 £3.98
8	ST4149 030 0403 Out of stock	Crankshaft	£176.28 £146.90
9	ST0000 955 0802 In stock	Collar nut M8x1	£1.28 £1.07
10	ST9220 260 0900 Out of stock	Hexagon Nut M6	£0.50 £0.42
11	ST9512 003 1834 Out of stock	Needle Cage 8x11x10	£6.79 £5.66
12	ST4149 020 1201 In stock	Cylinder with Piston Ø 33mm (Contains Items 13 - 16, 18)	£46.33 £38.61
13	ST4149 030 2003 Out of stock	Piston Ø 33mm	£40.49 £33.74
14	ST4242 034 3000 Out of stock	Piston Ring Ø 33x1.2mm	£4.91 £4.09
15	ST9463 650 0805 In stock	Snap Ring 8x0.7	£0.58 £0.48
16	ST4241 034 1500 Out of stock	Piston Pin 8x5x22	£7.04 £5.87
17	ST4149 029 2301 Out of stock	Cylinder Gasket	£3.52 £2.93
18	ST9075 478 4159 In stock	(Also 38, 89) Pan Head Self-Tapping Screw Is-D5x24	£0.86 £0.72
19	ST0000 400 7011 In stock	NGK Spark Plug (CMR6H)	£5.22 £4.35
20	ST4140 190 2010 In stock	Driver	£11.29 £9.41
21	ST0000 998 0612 In stock	Torsion Spring	£1.26 £1.05
22	ST4133 195 7201 In stock	Pawl	£2.35 £1.96
23	ST0783 830 2000 In stock	Tube Of Sealant HT Red	£18.34 £15.28
24	ST4149 007 1600 Out of stock	Set Of Gaskets	£13.74 £11.45
25	ST4149 190 4000 In stock	Rewind Starter	£51.42 £42.85
26	ST4149 190 0400 Out of stock	Starter Cover	£15.84 £13.20
27	ST9416 868 6650 In stock	Rivet 6.5x0.5x8.8	£1.31 £1.09
28	ST4149 190 0600 In stock	Rewind Spring	£9.49 £7.91
29	ST4149 195 0400 Out of stock	Rope Rotor	£9.46 £7.88
30	ST4137 195 8200 In stock	Starter Rope Ø 2.7x910mm	£3.37 £2.81
31	ST4140 195 3400 In stock	Starter Grip	£3.91 £3.26
32	ST4149 195 3500 In stock	Spring	£4.69 £3.91
33	ST4149 195 2000 In stock	Carrier	£2.81 £2.34
34	ST0000 958 0923 In stock	Washer	£1.09 £0.91
36	ST9455 621 0750 In stock	Circlip 9x1	£0.76 £0.63
37	ST4243 967 1501 Out of stock	Model Plate HL 92 C	£5.04 £4.20
39	ST4149 140 0600 Out of stock	Muffler	£27.42 £22.85
40	ST4149 141 3201 Out of stock	Cooling Plate	£5.04 £4.20
41	ST4149 149 0600 Out of stock	Muffler Gasket	£2.14 £1.78
42	ST9075 478 4085 In stock	Pan Head Self-Tapping Screw Is-D5x18 ((9 Nm))	£1.09 £0.91
43	ST4149 080 1603 Out of stock	Shroud	£15.73 £13.11
44	ST4149 080 0400 Out of stock	Cover	£5.39 £4.49
45	ST0000 951 1110 Out of stock	(Also 79) Screw M5x12 (5 Nm)	£3.13 £2.61
46	ST0000 350 6201 Out of stock	Fuel Pump	£11.88 £9.90
47	ST0000 930 2802 In stock	(Also 62) Hose 2.2x5.4mm x 1 M. R1	£4.01 £3.34
48	ST4149 080 0901 Out of stock	Air Guide Shroud	£9.30 £7.75
49	ST4149 400 1200 Out of stock	Flywheel	£63.60 £53.00
50	ST4243 400 1301 Out of stock	Ignition Module	£133.38 £111.15
51	ST0000 998 0604 In stock	Spark Plug Contact Spring	£1.31 £1.09
52	ST0000 405 1007 Out of stock	Spark Plug Boot	£7.19 £5.99
53	ST9291 021 0100 In stock	Washer 4.3	£0.48 £0.40
54	ST9075 478 3022 Out of stock	Pan Head Self-Tapping Screw Is-D4x20 ((4 Nm))	£0.86 £0.72
55	ST4149 350 0411 In stock	Fuel Tank (Contains Items 56-67)	£67.32 £56.10
56	ST9991 003 5087 In stock	Sleeve 7.5x6.8	£0.64 £0.53
57	ST4223 353 9201 Out of stock	Grommet	£1.63 £1.36
58	ST4149 350 5800 Out of stock	Tank Vent	£11.05 £9.21
59	ST4147 358 0800 In stock	Hose	£4.72 £3.93
60	ST0000 007 3600 Out of stock	(Also 64) Set of Pickup Bodies	£13.08 £10.90
61	ST4242 353 2600 Out of stock	Elbow Connector	£2.92 £2.43
63	ST0000 937 5006 In stock	Hose 2.2x5.4mm x 1 M. R5	£27.18 £22.65
65	ST0000 350 0527 In stock	Filler Cap (Contains Items 66, 67)	£7.40 £6.17
66	ST9645 951 3890 Out of stock	O-Ring 35x3-Fpm 80	£1.90 £1.58
67	ST0000 350 0900 Out of stock	Rope	£1.18 £0.98
68	ST4180 352 8100 Out of stock	Insert	£2.15 £1.79
69	ST4149 120 1800 In stock	Filter	£3.00 £2.50
70	ST9210 261 0700 Out of stock	Hexagon Nut M5	£0.48 £0.40
71	ST4149 140 2800 Out of stock	Filter Housing	£12.74 £10.62
72	ST4149 129 0901 In stock	Gasket	£2.40 £2.00
73	ST4149 120 0600 In stock	Carburettor RC2-S243E	£77.64 £64.70
74	ST9075 478 4175 Out of stock	Pan Head Self-Tapping Screw Is-D5x28 ((7 Nm))	£1.15 £0.96
75	ST4149 431 2100 Out of stock	Connector Tag	£1.76 £1.47
76	ST4149 120 2300 Out of stock	Spacer Flange	£18.36 £15.30
77	ST4149 129 0900 Out of stock	Gasket	£2.52 £2.10
78	ST4149 140 1003 In stock	Filter Cover	£21.20 £17.67
80	ST4149 160 2250 Out of stock	Clutch (Contains Items 81-86)	£34.32 £28.60
81	ST4149 160 2000 Out of stock	Clutch	£28.43 £23.69
82	ST0000 997 6101 In stock	Tension Spring	£2.05 £1.71
83	ST0000 958 1000 In stock	Washer 16x10x0.5	£1.09 £0.91
84	ST0000 961 0601 In stock	Ring	£2.77 £2.31
85	ST4180 162 1000 In stock	Cover Washer	£2.36 £1.97
86	ST0000 951 0600 Out of stock	Hexagon Head Screw M6 (12 Nm)	£1.51 £1.26
87	ST4149 160 2901 Out of stock	Clutch Drum	£35.34 £29.45
88	ST4149 080 1800 Out of stock	Fan Housing	£28.60 £23.83
90	ST9455 621 0850 Out of stock	Circlip 10x1	£0.76 £0.63
91	ST4149 791 9300 Out of stock	Rubber Insert	£9.14 £7.62
92	ST4149 790 7201 In stock	Sleeve	£13.39 £11.16
93	ST9075 478 4095 Out of stock	Pan Head Self-Tapping Screw Is-D5x12	£0.86 £0.72
94	ST9022 371 1020 In stock	Spline Screw Is-M5x20 (5.5 Nm)	£0.97 £0.81
95	ST9457 621 4481 Out of stock	Circlip	£1.90 £1.58
96	ST9074 477 4130 In stock	Pan Head Self-Tapping Screw Is-P5x16 (3 Nm)	£1.00 £0.83
