Genuine Stihl FS120 / R - Carburetor C1Q-S51, C1Q-S36 (09.2003)

Name: Genuine Stihl FS120 / R - Carburetor C1Q-S51, C1Q-S36 (09.2003)
SKU: FS120_R-group
Price: 0.51 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl FS120 / R - Carburetor C1Q-S51, C1Q-S36 (09.2003)

Description

Genuine Stihl FS120 / R - Carburetor C1Q-S51, C1Q-S36 (09.2003)

Be the first to review this product

0 product questions

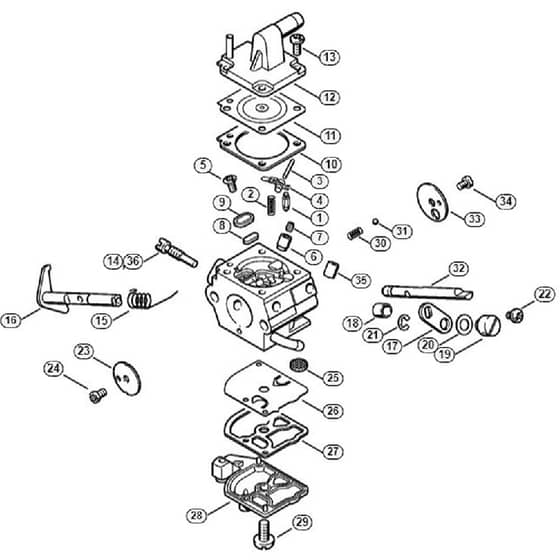

	Part No.	Details
0	ST4134 120 0651 Out of stock	Carburettor C1Q-S51C (Contains Items 1-34)	£129.07 £107.56
1	STZ000 018 Z000 Out of stock	Inlet Needle	£9.63 £9.63
2	ST1120 122 3004 Out of stock	Spring	£2.47 £2.06
3	ST1120 121 9200 Out of stock	Spindle	£1.37 £1.14
4	ST1125 121 5000 Out of stock	Inlet Control Lever	£3.56 £2.97
6	ST4137 122 5100 Out of stock	Outlet Valve	£12.53 £10.44
5	ST1120 122 6600 Out of stock	Collar Screw	£4.48 £3.73
7	ST1130 121 5601 Out of stock	Fixed Jet 0.44	£15.00 £12.50
8	ST4119 121 0700 Out of stock	Cup Plug	£3.86 £3.22
9	ST4129 121 0700 Out of stock	Cup Plug	£3.84 £3.20
10	ST4129 129 0902 Out of stock	Metering Gasket	£2.35 £1.96
11	ST0000 121 4700 Out of stock	Metering Diaphragm	£21.72 £18.10
12	ST4134 121 0801 Out of stock	End Cover	£18.71 £15.59
13	ST1120 122 6601 Out of stock	Collar Screw	£4.48 £3.73
14	ST1130 122 6300 Out of stock	Idle Speed Screw	£11.69 £9.74
15	ST1123 122 3000 Out of stock	Spring	£2.47 £2.06
16	ST4134 120 7100 Out of stock	Throttle Shaft With Lever	£18.49 £15.41
17	ST4134 123 7300 Out of stock	Lever	£3.46 £2.88
18	ST4134 122 5000 Out of stock	Spacer Sleeve	£1.10 £0.92
19	ST4128 121 8900 Out of stock	Pin	£15.00 £12.50
20	ST4137 121 8600 Out of stock	Washer	£1.13 £0.94
21	ST1120 122 9000 Out of stock	E-Clip	£2.26 £1.88
22	ST9079 319 0280 Out of stock	Flat Head Screw M3x3.5	£0.61 £0.51
23	ST4134 121 3301 Out of stock	Throttle Shutter	£4.74 £3.95
24	ST1120 122 7400 Out of stock	Round Head Screw	£4.72 £3.93
25	ST1123 121 7800 Out of stock	Strainer	£3.52 £2.93
26	ST1129 121 4800 Out of stock	Pump Diaphragm	£16.36 £13.63
27	ST1123 129 0905 Out of stock	Pump Gasket	£2.35 £1.96
28	ST4128 121 0800 Out of stock	End Cover	£18.71 £15.59
29	ST1120 122 7800 Out of stock	Oval Head Screw	£4.72 £3.93
30	ST4119 122 3002 Out of stock	Spring	£2.47 £2.06
31	ST4119 122 4200 Out of stock	Ball	£1.72 £1.43
32	ST4134 121 3000 Out of stock	Choke Shaft	£17.69 £14.74
33	ST4128 121 2900 Out of stock	Choke Shutter	£4.75 £3.96
34	ST1125 122 7403 Out of stock	Round Head Screw	£4.72 £3.93
35	ST4134 121 5402 Out of stock	Valve Jet	£10.51 £8.76
0	ST4134 007 1060 Out of stock	Set of Carburettor Parts (Contains Items 1, 2, 4, 10, 11, 25-27)	£50.72 £42.27
