Genuine Stihl BR500 / F - Carburetor 4282/10

Name: Genuine Stihl BR500 / F - Carburetor 4282/10
SKU: BR500_F-group
Price: 0.51 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl BR500 / F - Carburetor 4282/10

Description

Genuine Stihl BR500 / F - Carburetor 4282/10

Be the first to review this product

0 product questions

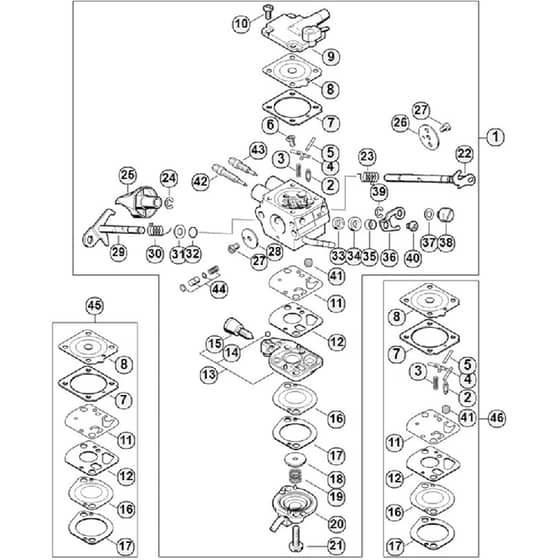

	Part No.	Details
1	ST4282 120 0610 Out of stock	Carburettor 4282/10 (Contains Items 2-44)	£214.46 £178.72
2	STZ000 018 Z000 Out of stock	Inlet Needle	£9.63 £9.63
3	ST1120 122 3004 Out of stock	Spring	£2.47 £2.06
4	ST1125 121 5000 Out of stock	Inlet Control Lever	£3.56 £2.97
5	ST1120 121 9200 Out of stock	Spindle	£1.37 £1.14
6	ST1120 122 6600 Out of stock	Collar Screw	£4.48 £3.73
7	ST4229 129 0901 Out of stock	Metering Gasket	£2.35 £1.96
8	ST4180 121 4700 In stock	Metering Diaphragm	Was £16.36 £13.63 Special Price £10.90 £9.08
9	ST4282 121 0800 Out of stock	End Cover	£18.71 £15.59
10	ST1120 122 6601 Out of stock	Collar Screw	£4.48 £3.73
11	ST4180 121 4800 Out of stock	Pump Diaphragm	£16.36 £13.63
12	ST4180 129 0901 Out of stock	Pump Gasket	£2.35 £1.96
13	ST4180 120 2601 Out of stock	Pump Cover (Contains Items 14, 15 )	£13.49 £11.24
14	ST1125 122 4200 Out of stock	Clamp	£1.72 £1.43
15	ST4180 122 6200 Out of stock	Idle Speed Screw	£11.69 £9.74
16	ST4180 121 4801 Out of stock	Pump Diaphragm	£16.36 £13.63
17	ST4180 129 0903 Out of stock	Pump Gasket	£2.35 £1.96
18	ST4180 121 8600 Out of stock	Washer	£1.15 £0.96
19	ST4180 122 3001 Out of stock	Spring	£2.47 £2.06
20	ST4180 121 0801 Out of stock	End Cover	£18.71 £15.59
21	ST4180 122 7101 Out of stock	Screw	£6.06 £5.05
22	ST4282 121 3000 Out of stock	Choke Shaft	£22.57 £18.81
23	ST4282 122 3005 Out of stock	Spring	£2.47 £2.06
24	ST4282 122 9000 Out of stock	E-Clip	£2.26 £1.88
25	ST4282 182 9500 In stock	Choke Knob	£3.64 £3.03
26	ST4282 121 2900 Out of stock	Choke Shutter	£4.75 £3.96
27	ST1125 122 7403 Out of stock	Round Head Screw	£4.72 £3.93
28	ST4282 121 3300 Out of stock	Throttle Shutter	£4.75 £3.96
29	ST4282 120 7100 Out of stock	Throttle Shaft With Lever	£18.92 £15.77
30	ST4282 122 3004 Out of stock	Spring	£2.47 £2.06
31	ST4180 121 8601 Out of stock	Washer	£2.92 £2.43
32	ST4180 122 3601 Out of stock	Sealing Ring	£6.49 £5.41
33	ST4238 122 3600 Out of stock	Sealing Ring	£6.49 £5.41
34	ST4238 121 9400 Out of stock	Ring	£4.26 £3.55
35	ST4282 122 5000 Out of stock	Spacer Sleeve	£1.10 £0.92
36	ST4282 121 3500 Out of stock	Throttle Lever	£7.02 £5.85
37	ST4137 121 8600 Out of stock	Washer	£1.13 £0.94
38	ST4128 121 8901 Out of stock	Pin	£9.36 £7.80
39	ST1120 122 9000 Out of stock	E-Clip	£2.26 £1.88
40	ST9079 319 0280 Out of stock	Flat Head Screw M3x3.5	£0.61 £0.51
41	ST1120 121 7800 Out of stock	Strainer	£3.52 £2.93
42	ST4282 122 6801 Out of stock	Low Speed Screw	£11.69 £9.74
43	ST4282 122 6705 Out of stock	High Speed Screw	£11.69 £9.74
44	ST4282 120 9702 Out of stock	Pump Piston Kit	£24.00 £20.00
45	ST4282 007 1700 Out of stock	Set Of Carburettor Parts (Contains Items 7, 8, 11, 12, 16, 17)	£48.47 £40.39
46	STZ010 001 K016 Out of stock	Carburettor Repair Kit RB-251 (Contains Items 2-5, 7, 8, 11, 12, 16, 17, 41)	£76.24 £63.53
