Freedom 38e_SD - 2022 - 2T0660483/M22 - Mountfield Ride On Mower Steering Diagram

Name: Freedom 38e_SD - 2022 - 2T0660483/M22 - Mountfield Ride On Mower Steering Diagram
SKU: freedom_38e_sd_2t0660483_m22_steering-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

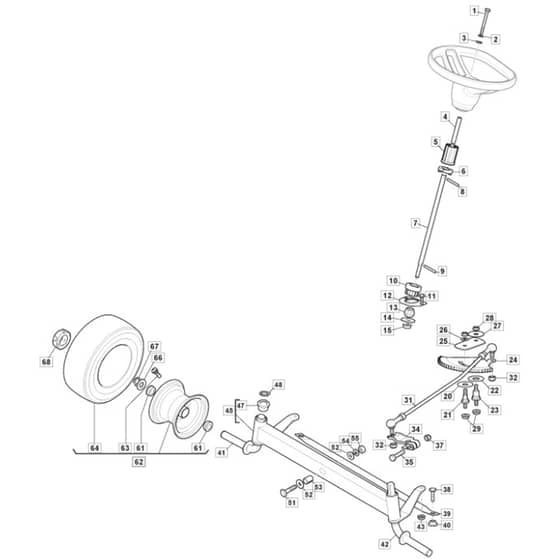

Freedom 38e_SD - 2022 - 2T0660483/M22 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield Freedom 38e_SD Parts Diagram

Product Name - Freedom 38e-SD

Model Year - 2022

Model Type - SDNS 98 LI 48 V1

Art.N - 2T0660483/M22

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112692100/0 Out of stock	Screw	£2.68 £2.23
2	MO112540260/0 Out of stock	Washer	£1.48 £1.23
4	MO125160105/0 Out of stock	Spacer	£9.64 £8.03
5	MO325785552/0 Out of stock	Support	£19.09 £15.91
6	MO325038008/0 Out of stock	Bushing	£1.66 £1.38
7	MO125520018/0 Out of stock	Steering Column	£22.76 £18.97
8	MO112620300/0 In stock	Spring Pin 6X50	£1.74 £1.45
9	MO112622650/0 Out of stock	Dowel Pin	£1.61 £1.34
10	MO125570003/0 Out of stock	Pinion	£8.17 £6.81
11	MO127943051/0 Out of stock	Screw	£1.74 £1.45
12	MO325785213/1 Out of stock	Support	£1.91 £1.59
13	MO325743000/0 In stock	Joint	£2.54 £2.12
14	MO112521370/0 Out of stock	Washer	£1.48 £1.23
15	MO112436030/0 Out of stock	Plate	£1.74 £1.45
20	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
21	MO125510173/0 Out of stock	Pin	£1.87 £1.56
22	MO125670023/0 Out of stock	Washer	£1.74 £1.45
23	MO125510165/0 Out of stock	Pin	£4.55 £3.79
24	MO325735519/0 Out of stock	Steering Sector	£33.10 £27.58
25	MO325547233/0 Out of stock	Plate	£3.31 £2.76
26	MO112369500/0 Out of stock	Elastic Washer	£1.34 £1.12
27	MO122160400/0 In stock	Elastic Disc	£1.74 £1.45
28	MO112155010/0 Out of stock	Nut	£2.00 £1.67
31	MO382000566/2 In stock	Steering Rod	£35.65 £29.71
32	MO112156602/0 In stock	Nut	£1.34 £1.12
34	MO382318323/0 In stock	Steering Control Lever	£7.24 £6.03
35	MO112692395/2 In stock	Screw	£3.08 £2.57
37	MO112155020/0 Out of stock	Nut	£1.61 £1.34
38	MO125510103/0 Out of stock	Pin	£1.48 £1.23
39	MO325840029/0 Out of stock	Tie Rod	£10.19 £8.49
40	MO325038007/0 Out of stock	Bushing	£1.66 £1.38
41	MO382230373/1 In stock	Right Stub Axle 15"	£53.47 £44.56
42	MO382230375/1 Out of stock	Left Stub Axle 15"	£53.47 £44.56
43	MO112155000/0 In stock	Nut	£1.48 £1.23
45	MO382034029/0 Out of stock	Rod	£101.84 £84.87
47	MO125034002/1 Out of stock	Bushing	£3.61 £3.01
48	MO112001010/0 Out of stock	Benzing Ring	£1.74 £1.45
51	MO112692695/0 Out of stock	Screw	£1.48 £1.23
52	MO112523100/0 Out of stock	Washer	£1.87 £1.56
53	MO125160016/1 Out of stock	Spacer	£5.89 £4.91
54	MO112587100/0 Out of stock	Grower	£1.48 £1.23
55	MO112295300/0 Out of stock	Nut	£1.48 £1.23
61	MO125122200/2 In stock	Bearing	£11.24 £9.37
62	MO382680093/0 Out of stock	Wheel Assy 15" 15" - P512 . Light Grey Rimm	£120.95 £100.79
62	MO382680102/0 Out of stock	Wheel Assy 15" - P512 . Dark Grey Rimm	£106.51 £88.76
63	MO125950000/0 Out of stock	Valve	£5.09 £4.24
64	MO125590019/0 Out of stock	Tyre 15X6.00-6 P512 Wanda 15"	£64.27 £53.56
66	MO125670005/2 Out of stock	Washer	£3.89 £3.24
68	MO322110233/0 In stock	Hub Cap [Black]	£1.66 £1.38
