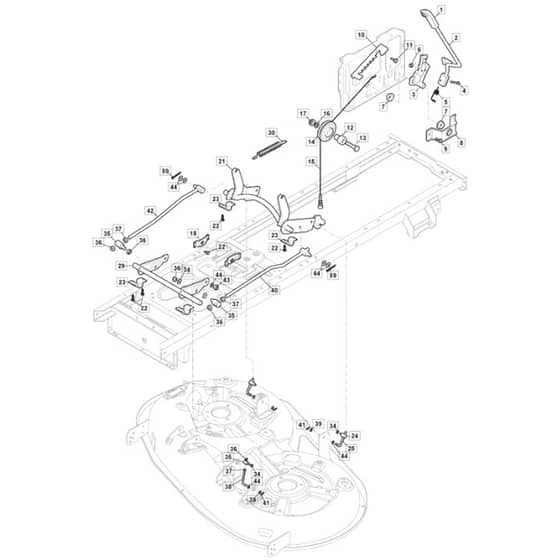

Freedom 38e_SD - 2022 - 2T0660483/M22 - Mountfield Ride On Mower Deck Lifting Diagram

Freedom 38e_SD - 2022 - 2T0660483/M22 - Mountfield Ride On Mower Deck Lifting Diagram
Freedom 38e_SD - 2022 - 2T0660483/M22 - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield Freedom 38e_SD Parts Diagram

Product Name - Freedom 38e-SD

Model Year - 2022

Model Type - SDNS 98 LI 48 V1

Art.N - 2T0660483/M22

Ref. Img. Part No. Details
  1 Knob
Knob
MO325394533/0 Out of stock
Knob
£3.06 £2.55

  2 Lever
Lever
MO382318229/0 In stock
Lever
Was £15.28 £12.73 Special Price £9.79 £8.16

  3 Lifting Axle Assy
Lifting Axle Assy
MO382318231/1 Out of stock
Lifting Axle Assy
£6.62 £5.52

  4 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.48 £1.23

  5 Spring
Spring
MO125430261/0 Out of stock
Spring
£1.34 £1.12

  6 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  7 Bushing
Bushing
MO325038006/0 Out of stock
Bushing
£1.66 £1.38

  8 Support
Support
MO325785297/0 Out of stock
Support
£5.86 £4.88

  10 Steering Sector
Steering Sector
MO325735515/0 Out of stock
Steering Sector
£7.64 £6.37

  11 Screw
Screw
MO125943009/0 Out of stock
Screw
£1.55 £1.29

  12 Screw
Screw
MO112793701/0 Out of stock
Screw
£1.48 £1.23

  13 Bushing
Bushing
MO125040636/1 Out of stock
Bushing
£2.68 £2.23

  14 Pulley
Pulley
MO125601579/0 Out of stock
Pulley
£2.68 £2.23

  15 Wire
Wire
MO382004629/0 Out of stock
Wire
£11.99 £9.99

  16 Washer
Washer
MO112523060/0 In stock
Washer
£1.48 £1.23

  17 Nut
Nut
MO112293201/0 In stock
Nut
£1.61 £1.34

  18 Fulcrum Clamp
Fulcrum Clamp
MO325774757/0 Out of stock
Fulcrum Clamp
£7.90 £6.58

  21 Rear Lifting Axle
Rear Lifting Axle
MO382000705/0 Out of stock
Rear Lifting Axle
£31.82 £26.52

  22 Screw
Screw
MO112735599/0 Out of stock
Screw
£1.48 £1.23

  23 Plate
Plate
MO325547231/1 Out of stock
Plate
£4.20 £3.50

  24 Pin
Pin
MO125510007/2 Out of stock
Pin
£5.35 £4.46

  25 Pin
Pin
MO125840041/0 Out of stock
Pin
£5.35 £4.46

  29 Front Lifting Axle
Front Lifting Axle
MO382000697/0 Out of stock
Front Lifting Axle
£18.66 £15.55

  30 Spring
Spring
MO125430218/1 Out of stock
Spring
£5.50 £4.58

  34 Washer
Washer
MO325670008/1 Out of stock
Washer
£1.66 £1.38

  36 Nut
Nut
MO112156602/0 In stock
Nut
£1.34 £1.12

  37 Nut
Nut
MO112295200/0 Out of stock
Nut
£1.34 £1.12

  38 Tie Rod
Tie Rod
MO125840012/1 Out of stock
Tie Rod
£13.66 £11.38

  40 Connecting Rod. Left
Connecting Rod. Left
MO382000699/0 Out of stock
Connecting Rod. Left
£11.46 £9.55

  41 Cotter Pin
Cotter Pin
MO124487998/0 Out of stock
Cotter Pin
£1.48 £1.23

  42 Connecting Rod. Right
Connecting Rod. Right
MO382000701/0 Out of stock
Connecting Rod. Right
£11.21 £9.34

  59 Split Pin 3 X 20
Split Pin 3 X 20
MO112141418/0 In stock
Split Pin 3 X 20
£1.48 £1.23


Description

Mountfield Freedom 38e_SD Parts Diagram

Product Name - Freedom 38e-SD

Model Year - 2022

Model Type - SDNS 98 LI 48 V1

Art.N - 2T0660483/M22
