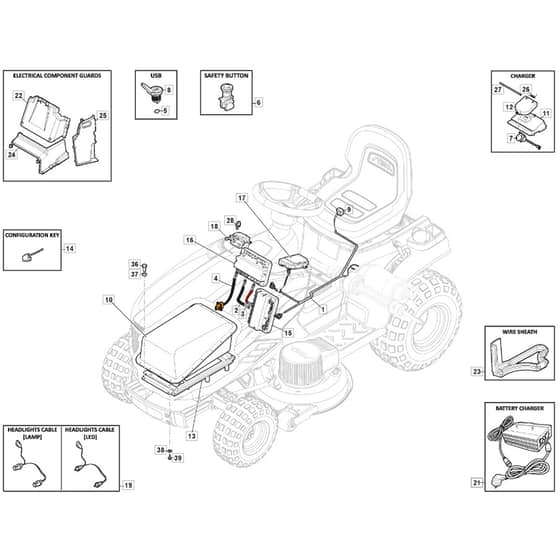

Freedom 38e_SD - 2021 - 2T0660483/M21 - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield Freedom 38e_SD Parts Diagram

Product Name - Freedom 38e-SD

Model Year - 2021

Model Type - SDNS 98 Li 48 V1

Art.N - 2T0660483/M21

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182040236/1 Out of stock	Wiring Harness	£165.50 £137.92
2	MO125065045/0 Out of stock	Negative Power Traction Cable	£17.93 £14.94
3	MO125065046/0 Out of stock	Positive Power Traction Cable	£17.93 £14.94
4	MO125065048/0 Out of stock	Battery Power Soft Cable	£186.13 £155.11
5	MO325774774/0 Out of stock	Usb Anti-Rotating Plate	£2.93 £2.44
6	MO187040332/0 Out of stock	Harness	£109.49 £91.24
7	MO125065047/1 Out of stock	Charger Connection Cable	£83.02 £69.18
9	MO119410633/0 Out of stock	Microswitch	£5.94 £4.95
11	MO325785589/0 Out of stock	Charger Plug Support	£9.02 £7.52
12	MO325207295/0 Out of stock	Black Charger Socket Cover	£3.56 £2.97
13	MO382785315/0 Out of stock	Battery Holder	£56.02 £46.68
14	MO118361033/0 Out of stock	Program Configuration Key	£18.91 £15.76
17	MO382722460/1 Out of stock	Electronic Card Assy	£184.60 £153.83
18	MOREPLA0000143 Out of stock	Electronic Card Assy	£109.49 £91.24
19	MO182040186/0 Out of stock	Headlights Cable [Led] For Lamp Version	£10.19 £8.49
21	MO182180179/3 Out of stock	Battery Charger 5A (Uk) 5Ah - BS plugg	£273.71 £228.09
22	MO325600139/0 Out of stock	Upper Guard	£9.94 £8.28
23	MO325600143/0 Out of stock	Wire Sheath	£4.20 £3.50
24	MO325600141/0 Out of stock	Right Protection	£8.28 £6.90
25	MO325600142/0 Out of stock	Left Protection	£6.49 £5.41
26	MO125430296/1 Out of stock	Spring	£1.66 £1.38
27	MO125510183/0 Out of stock	Fulcrum Pin	£1.48 £1.23
36	MO112792611/0 Out of stock	Screw	£1.48 £1.23
37	MO112155000/0 In stock	Nut	£1.48 £1.23
38	MO112540260/0 Out of stock	Washer	£1.48 £1.23
39	MO112793701/0 Out of stock	Hex-Head Screw M8 X 30	£1.48 £1.23
