Freedom 28e - 2022 - 2T0250483/M22T - Mountfield Ride On Mower Frame Diagram

Freedom 28e - 2022 - 2T0250483/M22T - Mountfield Ride On Mower Frame Diagram
Freedom 28e - 2022 - 2T0250483/M22T - Mountfield Ride On Mower Frame Diagram

Description

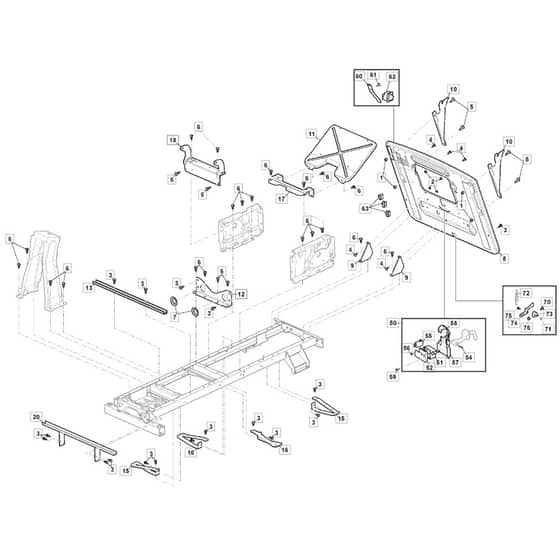

Mountfield Freedom 28e Parts Diagram

Product Name - Freedom 28e

Model Year - 2022

Model Type - R72 Li 48 V1

Art.N - 2T0250483/M22T

Ref. Img. Part No. Details
  1 Nut
Nut
MO112155000/0 In stock
Nut
£1.48 £1.23

  2 Nut
Nut
MO112292102/0 In stock
Nut
£1.61 £1.34

  3 Screw
Screw
MO112735599/0 Out of stock
Screw
£1.48 £1.23

  4 Screw
Screw
MO112815202/0 Out of stock
Screw
£1.30 £1.08

  5 Screw
Screw
MO112818700/0 In stock
Screw
£1.48 £1.23

  6 Screw
Screw
MO125943009/0 Out of stock
Screw
£1.55 £1.29

  7 Grommet
Grommet
MO325260012/0 Out of stock
Grommet
£6.24 £5.20

  8 Rear Plate
Rear Plate
MO327543065/0 Out of stock
Rear Plate
£159.13 £132.61

  9 Bracket Rear Plate Lower Support
Bracket Rear Plate Lower Support
MO327772257/0 Out of stock
Bracket Rear Plate Lower Support
£5.09 £4.24

  10 Grasscatcher Fulcrum Support
Grasscatcher Fulcrum Support
MO327772259/0 Out of stock
Grasscatcher Fulcrum Support
£15.53 £12.94

  11 Controller Support R72
Controller Support R72
MO327772273/0 Out of stock
Controller Support R72
£35.65 £29.71

  12 Seat Support Reinforcement Plate To S.N 22JA3RON001881
Seat Support Reinforcement Plate To S.N 22JA3RON001881
MO327772281/0 Out of stock
Seat Support Reinforcement Plate To S.N 22JA3RON001881
£10.19 £8.49

  12 Seat Support Reinforcement Plate From S.N 22JA3RON001882
Seat Support Reinforcement Plate From S.N 22JA3RON001882
MO327772281/1 Out of stock
Seat Support Reinforcement Plate From S.N 22JA3RON001882
£9.88 £8.23

  13 Front Foot Rest Holder R72
Front Foot Rest Holder R72
MO327787094/1CF Out of stock
Front Foot Rest Holder R72
£29.98 £24.98

  15 Right Batteries Box Support R72
Right Batteries Box Support R72
MO327787137/0 Out of stock
Right Batteries Box Support R72
£9.29 £7.74

  16 Left Batteries Box Support R72
Left Batteries Box Support R72
MO327787138/0 Out of stock
Left Batteries Box Support R72
£9.29 £7.74

  17 Rear Link Support Bar
Rear Link Support Bar
MO327820105/0 Out of stock
Rear Link Support Bar
£23.04 £19.20

  18 Seat Support From S.N 22JA3RON004241
Seat Support From S.N 22JA3RON004241
MO382820151/3 Out of stock
Seat Support From S.N 22JA3RON004241
£22.21 £18.51

  18 Seat Support To S.N 22JA3RON004240
Seat Support To S.N 22JA3RON004240
MO382820151/2 Out of stock
Seat Support To S.N 22JA3RON004240
£23.04 £19.20

  20 Ctf Foot Rest Support Assy R72
Ctf Foot Rest Support Assy R72
MO384783077/0 Out of stock
Ctf Foot Rest Support Assy R72
£52.07 £43.39

  50 Micrograsscatch Ass.Y
Micrograsscatch Ass.Y
MO384394754/0 Out of stock
Micrograsscatch Ass.Y
£31.38 £26.15

  51 Grassc.Full Micro Protection Tcj-F
Grassc.Full Micro Protection Tcj-F
MO125600041/0 Out of stock
Grassc.Full Micro Protection Tcj-F
£2.28 £1.90

  52 Grasscatcher Micro Prot Cover
Grasscatcher Micro Prot Cover
MO125600042/0 Out of stock
Grasscatcher Micro Prot Cover
£2.81 £2.34

  54 Pin
Pin
MO112400030/0 Out of stock
Pin
£1.74 £1.45

  55 Microswitch
Microswitch
MO119410605/1 In stock
Microswitch
£37.49 £31.24

  56 Screw
Screw
MO112731580/0 Out of stock
Screw
£1.48 £1.23

  57 Grassc.Full Micro Protection Tc 2000
Grassc.Full Micro Protection Tc 2000
MO125600047/0 Out of stock
Grassc.Full Micro Protection Tc 2000
£1.61 £1.34

  58 Empty Micro Grassc.Protection Cover
Empty Micro Grassc.Protection Cover
MO125600048/0 Out of stock
Empty Micro Grassc.Protection Cover
£1.48 £1.23

  59 Screw
Screw
MO112728450/0 In stock
Screw
£1.48 £1.23

  60 Spring
Spring
MO127430600/0 Out of stock
Spring
£2.68 £2.23

  62 Microswitch
Microswitch
MO119410622/1 In stock
Microswitch
£6.29 £5.24

  63 Fairlead
Fairlead
MO133320506/0 Out of stock
Fairlead
£1.34 £1.12

  70 Screw
Screw
MO112789008/0 In stock
Screw
£1.74 £1.45

  71 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  72 Spring
Spring
MO125430282/1 Out of stock
Spring
£1.74 £1.45

  73 Bracket
Bracket
MO325755061/0 Out of stock
Bracket
£2.42 £2.02

  74 Clamp
Clamp
MO325774533/0 Out of stock
Clamp
£4.45 £3.71

  75 Pin
Pin
MO125510080/2 Out of stock
Pin
£1.34 £1.12

  76 Low Self-Locking Nut M5 Uni7474 Acc.6S
Low Self-Locking Nut M5 Uni7474 Acc.6S
MO112154330/0 Out of stock
Low Self-Locking Nut M5 Uni7474 Acc.6S
£1.48 £1.23


Description

Mountfield Freedom 28e Parts Diagram

Product Name - Freedom 28e

Model Year - 2022

Model Type - R72 Li 48 V1

Art.N - 2T0250483/M22T
