Billy Goat F902S - Force Blower Main Diagram

Name: Billy Goat F902S - Force Blower Main Diagram
SKU: f902s_force_blower_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat F902S - Force Blower Main Diagram

Description

F902S Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
7	BG8177013 Out of stock	Washer Lock	£0.78 £0.65
8	BG8041052 Out of stock	Screw Cap 3/8-16X1 1/2 Zp	£1.24 £1.03
10	BG8171003 Out of stock	Washer 5/16 Flatwasher Z/P	£0.78 £0.65
11	BG8160002 Out of stock	Nylon Insert Locknut 5/16-18	£0.94 £0.78
12	BG8041031 Out of stock	Screwcap 5/16-18 X 175 Zp	£0.94 £0.78
13	BG8041008 Out of stock	Screwcap 1/4-20 X 1 1/2	£0.94 £0.78
14	BG900455 Out of stock	Nut Flange 1/4-20	£1.08 £0.90

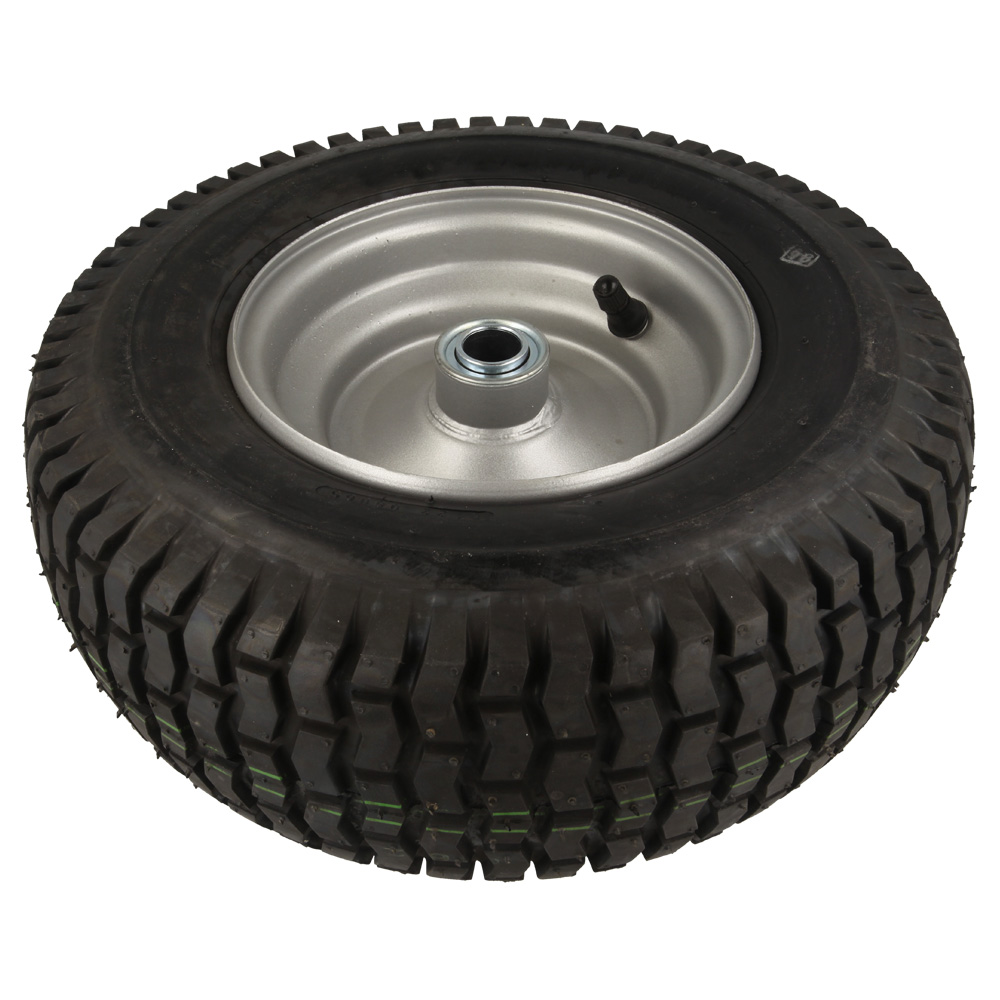

15	BG440054 Out of stock	Wheel & Tire 13" X 5" Pneumatic	£109.86 £91.55

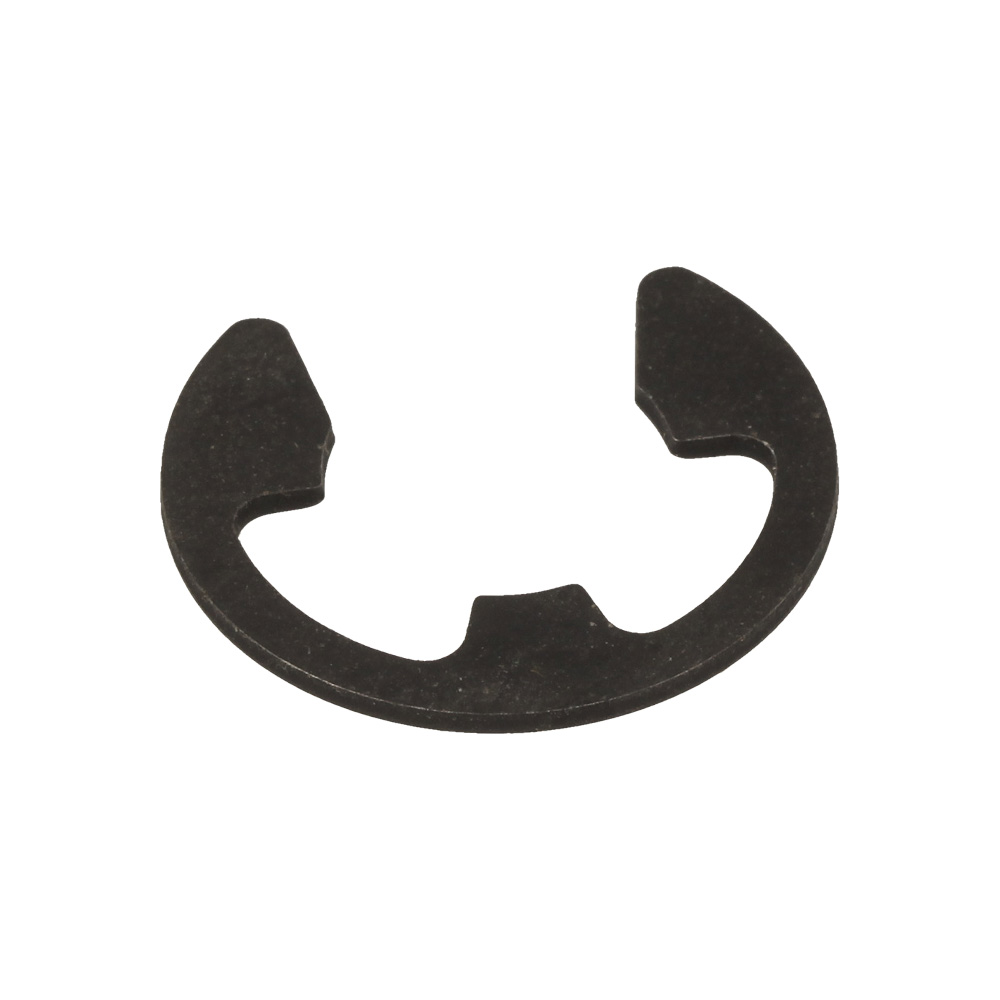

16	BG850230 Out of stock	Ring Retaining 3/4	£0.78 £0.65

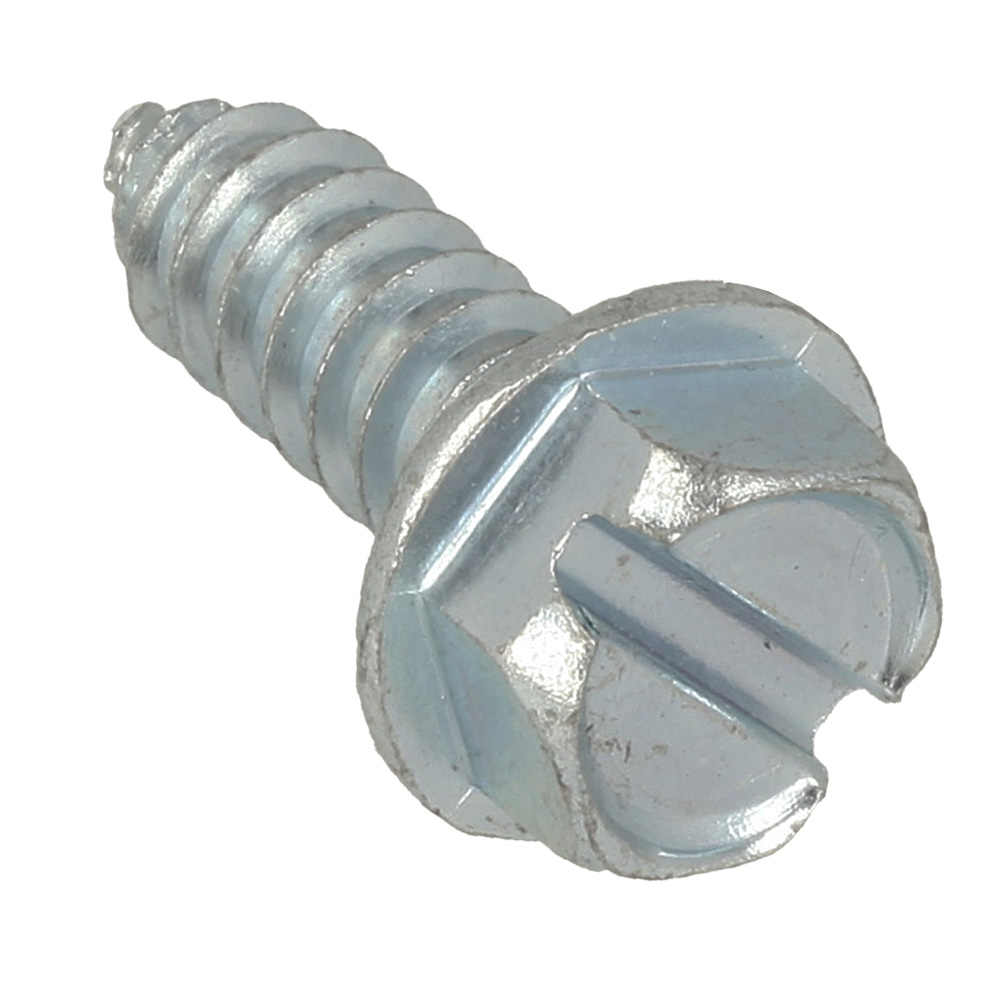

17	BG8122082 Out of stock	Screw Self-Tap 5/16 Nc X 3/4 Hex	£1.08 £0.90

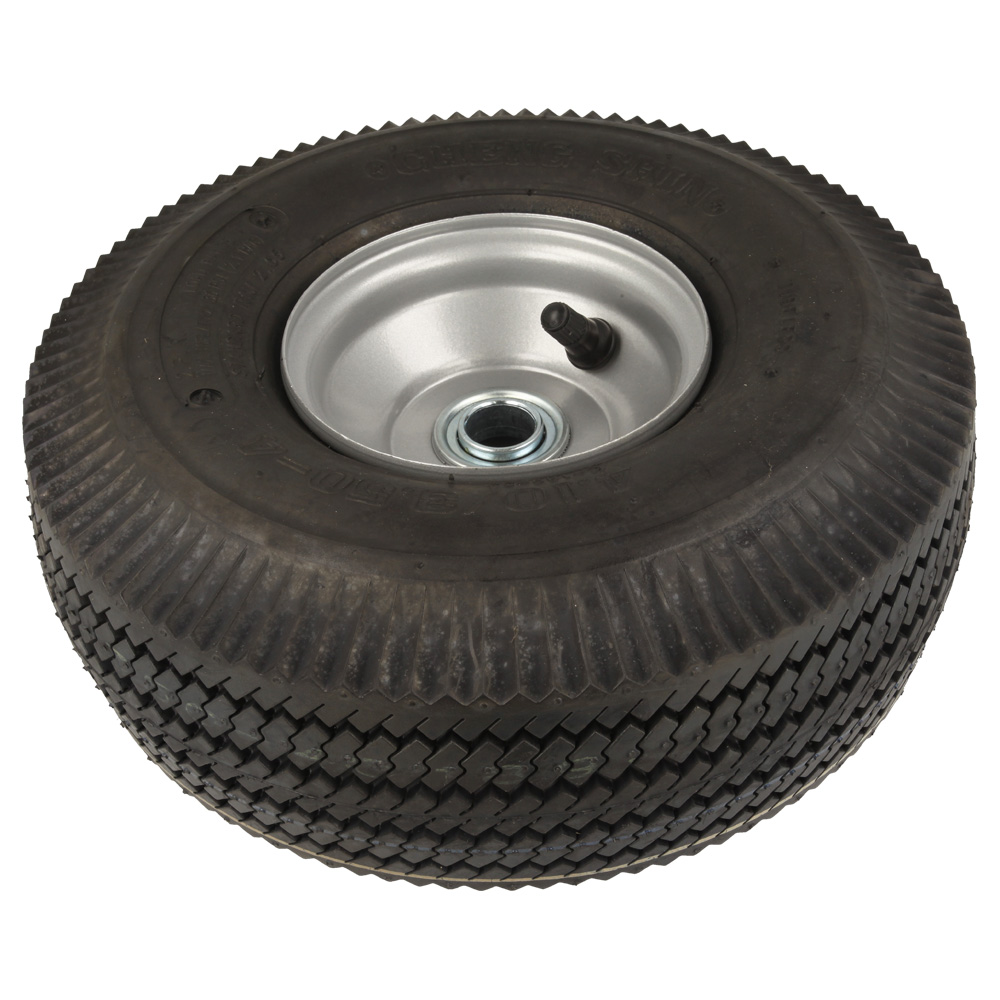

18	BG400295 Out of stock	Wheel Assy 10 " Pneumatic	£82.32 £68.60
22	BG8041240 Out of stock	Screwcap 1/2-13 X 9 1/2"	£8.72 £7.27
23	BG8172011 In stock	Washer Flat 1/2" Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
25	BG811230 Out of stock	Knob 3/8-16 Solid Hub	£8.40 £7.00
29	BG8160005 Out of stock	Nylon Insert Locknut 1/2-13	£0.94 £0.78
31	BG440013 Out of stock	Control Throttle	£48.18 £40.15
32	BG440014 Out of stock	Cable Throttle Control	£32.94 £27.45

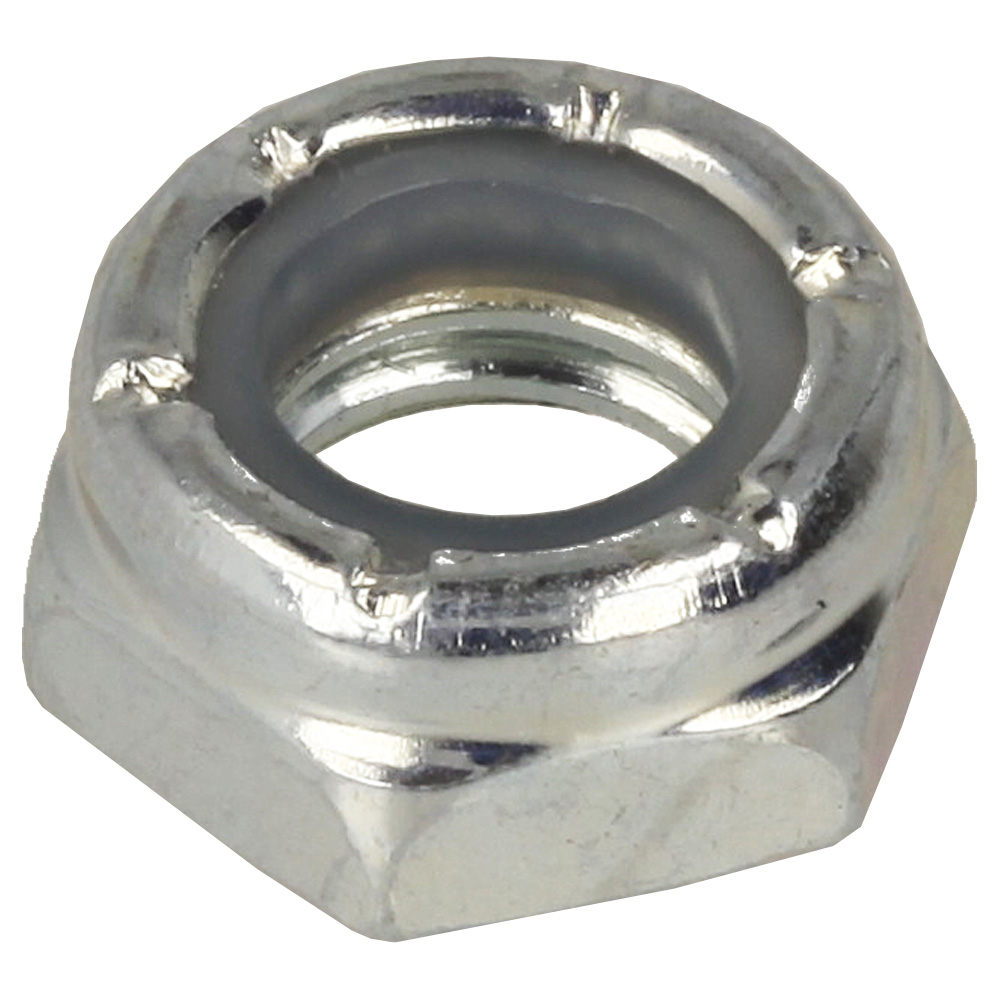

33	BG8161042 Out of stock	Nut Lock 3/8-16 Lt Wt Thin Zp	£0.94 £0.78
36	BG8041032 Out of stock	Screwcap 5/16"-18 X 2" Zp	£0.94 £0.78
38	BG440045-4 Out of stock	Divertor Front	£56.96 £47.47
39	BG8122064 Out of stock	Screw Sm #10-24X1/2" Drill Point	£1.08 £0.90
40	BG440236 Out of stock	Impeller Assembly 17"	£295.66 £246.38
41	BG440067-1-S Out of stock	Grill Front Blower	£76.24 £63.53
42	BG810656 Out of stock	Label Throttle Control	£3.58 £2.98
44	BG100346 Out of stock	Label Read	£3.58 £2.98
46	BG810736 Out of stock	Label Danger Flying Debris	£3.58 £2.98
47	BG440012 Out of stock	Grip 1-1/4" Id X 13"	£6.00 £5.00
50	BG9201128 Out of stock	Key 1/4" Sq X 325	£2.32 £1.93
53	BG8160001 Out of stock	Nut Lock 1/4"-20 Hex Zp	£0.94 £0.78
65	BG440117 Out of stock	Cable Assy	£32.22 £26.85
66	BG440121 Out of stock	Diverter Pivot Adaptor	£6.22 £5.18
67	BG440130 Out of stock	Spring Extension 0468 X 525	£7.78 £6.48
69	BG440124 Out of stock	Pin Clevis 1/4 X 3/4	£1.24 £1.03
70	BG440193 Out of stock	051 X 3/4" Hitch Pin Clip	£0.94 £0.78
71	BG440280 Out of stock	Eyebolt Pigtail 5/16"-18 X 1 1/4"	£6.06 £5.05
73	BG440146 Out of stock	Grip 1-1/4" Id X 95" Long	£8.72 £7.27
74	BG900407 Out of stock	Ty-Wrap	£0.78 £0.65
75	BG850238 Out of stock	Washer 765 Id X 125 Od X 06"	£1.08 £0.90
76	BG440055 Out of stock	Force Wheel Bearing 751 Id	£17.34 £14.45
83	BG791056 Out of stock	Plug	£1.24 £1.03
87	BG840082 Out of stock	Screw Plastite 1/4"-10 X 3/4" Hwh Zp	£1.24 £1.03
