Billy Goat DL2500S - DL Truck Loader Vacuum Main Diagram

Name: Billy Goat DL2500S - DL Truck Loader Vacuum Main Diagram
SKU: dl2500s_dl_truck_loader_vacuum_main-group
Price: 0.65 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

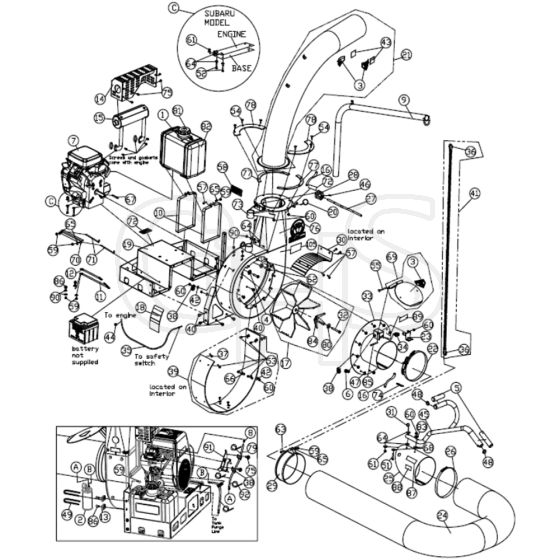

DL2500S Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	BG400424	Label Opei Warning	Out of stock	£3.71 £3.09
4	BG8177013	Washer Twisted Lock 7/16"	Out of stock	£0.78 £0.65
5	BG440146	Grip 1 1/4 Id X 95 Long	Out of stock	£8.72 £7.27
20	BG520004	Lynch Pin	Out of stock	£2.18 £1.82
22	BG791065	Clamp Quick Release 12"	Out of stock	£78.48 £65.40
24	BG791034-S	Hose 12" X 10' Intake	Out of stock	£897.80 £748.17
25	BG790149-S	Nozzle Intake 12" Formed	Out of stock	£124.50 £103.75
26	BG790150-01	Clamp Hose 12"	Out of stock	£15.24 £12.70
29	BG790153	Band Hose Boom 12" Formed	Out of stock	£74.70 £62.25
30	BG791020-S	Cut Off Loader	Out of stock	£140.04 £116.70
31	BG791081	Eye Bolt	Out of stock	£9.48 £7.90
34	BG791095	Plunge Switch	Out of stock	£46.68 £38.90
35	BG791096	Harness Wire Dl	Out of stock	£34.92 £29.10
39	BG791018-S	Interior Liner	Out of stock	£311.22 £259.35
40	BG791080	Washer Face Bolt	Out of stock	£1.28 £1.07
41	BG791117-S	Chain Hang Hose Dl	Out of stock	£53.84 £44.87
42	BG8171003	Washer 5/16" Flat Zp	Out of stock	£0.78 £0.65
43	BG810736	Label Flying Debris	Out of stock	£3.71 £3.09
45	BG791116-S	Handle Nozzle	Out of stock	£171.18 £142.65
48	BG791056	Plug Tube Insert 125 Od	Out of stock	£1.28 £1.07
51	BG8041032	Screwcap 5/16-18 X 2	Out of stock	£0.97 £0.81
54	BG8024040	Carriage Bolt 5/16X18X1	Out of stock	£0.97 £0.81
55	BG8024050	Bolt Carr 5/16 - 18 X 3 1/2	Out of stock	£0.97 £0.81
56	BG8024058	Carriage Bolt 3/8X16X1	Out of stock	£1.28 £1.07
59	BG8160001	Nut Lock 1/4"-20 Hex Z/P	Out of stock	£0.97 £0.81
61	BG8160003	Nut Lock 3/8	Out of stock	£0.97 £0.81
64	BG8171004	Washer Flat 3/8	Out of stock	£0.78 £0.65
65	BG8172007	Washer 1/4 Sae	Out of stock	£0.78 £0.65
66	BG8172008	Washer 5/16 Sae Zp	Out of stock	£0.78 £0.65
68	BG8172020	Washer 5/16 Fender	Out of stock	£0.78 £0.65
74	BG800365	Safety Pin	Out of stock	£2.40 £2.00
75	BG890359	Screw 1/4-20 X 5/8 Hwh	Out of stock	£1.40 £1.17
81	BG791158	Cap Tank Fuel 6 Gal	Out of stock	£54.78 £45.65
82	BG791157	Tank Fuel 6 Gal	Out of stock	£344.52 £287.10
84	BG791155	Debris Reducer Dl25	Out of stock	£93.36 £77.80
86	BG8041004	Screwcap 1/4-20 X 3/4	Out of stock	£0.97 £0.81
90	BG8171002	Washer 1/4" Flat Zp	Out of stock	£0.78 £0.65
92	BG900407	Ty-Wrap	Out of stock	£0.78 £0.65
