Countax Pgc - - 04 Main

Name: Countax Pgc - - 04 Main
SKU: countax_pgc_cseries___04-group
Price: 0.23 GBP
Availability: InStock

Description

Countax C Series

PGC - Power Grass Collector

From To -

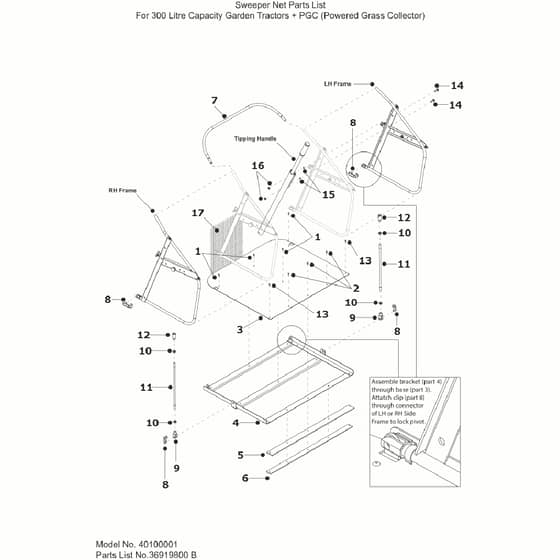

04 Main Assembly Parts Diagram

	Part No.	Details
1	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
2	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.30 £0.25
3	WE408800200 Out of stock	C Series Net P Clip & Base Ass	£133.78 £111.48
4	WE327812800 Out of stock	C Series Net Floor Welded Asse	£176.16 £146.80
5	WE14937101 Out of stock	Venturie PGC Rubber - C Series	£13.96 £11.63
6	WE30146800 Out of stock	PGC Scraper Plate	£11.62 £9.68
7	WE178974700 Out of stock	C Series Net Back Tube T007	£69.76 £58.13
8	WE108000500 In stock	10mm Spring Pin Short	£5.18 £4.32
9	WE108000600 Out of stock	10mm X 1.5 Clevis Short	£11.46 £9.55
10	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
11	WE183010402 Out of stock	Adjuster Link Rod	£32.40 £27.00
12	WE183024900 Out of stock	Quick Release Ball Joint	£20.78 £17.32
13	WE128000700 Out of stock	4.8 X 20mm Pop Rivet	£0.36 £0.30
14	WE019482500 Out of stock	Coach Bolt M8X20 Zinc Plated	£1.90 £1.58
15	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
16	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
