Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 19 Rear PTO

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

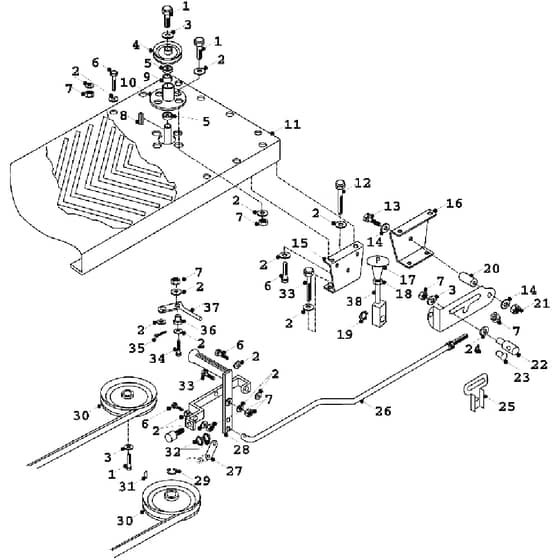

19 Rear Pto Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE02827600 Out of stock	Set Screw	£0.64 £0.53
2	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
3	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£0.22 £0.18
4	WE20870800 Out of stock	3 Pulley (Capitol)	£48.00 £40.00
5	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
7	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
8	WE09823900 In stock	Key No 61	£0.84 £0.70
9	WE31334800 Out of stock	Spacer PTO Centre	£14.28 £11.90
10	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
11	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
12	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.32 £1.10
14	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
15	WE30131600 Out of stock	Manual.Hydro Gearbox Bracket	£23.36 £19.47
19	WE07914800 Out of stock	Circlip (PGC Pulley & Shaft)	£0.60 £0.50
20	WE18833500 Out of stock	Pivot Plate (Park Brake)	£5.42 £4.52
21	WE04891400 In stock	Nyloc Nut1.4UNF	£0.60 £0.50
24	WE27104400 Out of stock	4.3 Bushel Bag Wrear Disch	£1.12 £0.93
27	WE25813801 In stock	Safety Switch Spring	£5.44 £4.53
29	WE07823800 Out of stock	Circlip 5.8 External	£0.90 £0.75
30	WE20870702 Out of stock	7 PTO Pulley	£48.74 £40.62
32	WE44813400 Out of stock	Pull Safety Switch	£27.62 £23.02
33	WE01821100 In stock	Bolt 5.16UNF X 2.1.2 HT Z.P	Was £0.70 £0.58 Special Price £0.50 £0.42
34	WE01820800 Out of stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.62 £0.52
35	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.24 £0.20
36	WE32725600 Out of stock	Gear Select Plate	£15.48 £12.90
37	WE541120600 Out of stock	Deck Tension Lever Lasered	£8.96 £7.47
