Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 17 Seat And Rear Body

Name: Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 17 Seat And Rear Body
SKU: k125k15_01011991_01011992_17-group
Price: 0.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 17 Seat And Rear Body

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

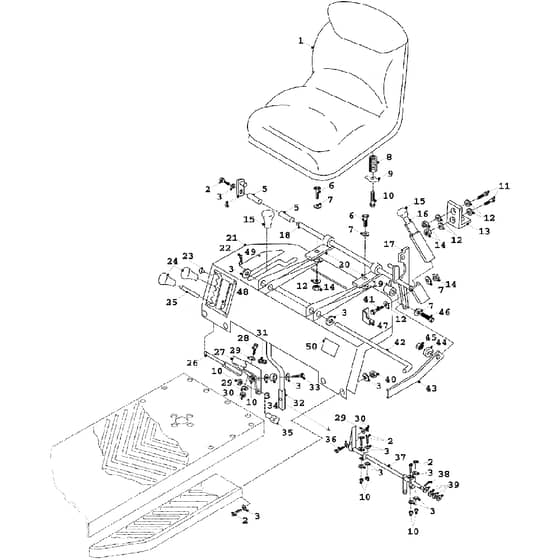

17 Seat And Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405354400 Out of stock	Kit Milsco To Seat Conversion Kit	£297.56 £247.97
2	WE02827600 Out of stock	Set Screw	£0.64 £0.53
3	WE02827700 In stock	Set Screw	Was £0.30 £0.25 Special Price £0.13 £0.11
4	WE32704800 Out of stock	PTO Pivot End	£20.62 £17.18
5	WE18831500 Out of stock	PTO End Tube	£4.70 £3.92
7	WE08822800 Out of stock	Washer 3.8 T4 Z.P	£0.30 £0.25
8	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
9	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
10	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
12	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
13	WE29200101 Out of stock	Tow Bracket	£55.28 £46.07
14	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
15	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
17	WE30139200 Out of stock	Sweeper Lift Hook	£18.98 £15.82
21	WE07823700 Out of stock	3mm L Type R Clip (Large)	£1.18 £0.98
22	WE32701700 Out of stock	Rear Chassis Box Assembley	£145.06 £120.88
23	WE12823600 Out of stock	Pop Rivet 1.2 X 3.16	£0.76 £0.63
24	WE14810400 Out of stock	Control Knob (Throttle Cable)	£9.90 £8.25
26	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
27	WE32708601 Out of stock	PTO Lever Plate	£22.68 £18.90
28	WE01820500 Out of stock	Bolt 14UNF X 1.12	£0.64 £0.53
29	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
30	WE04891400 In stock	Nyloc Nut1.4UNF	£0.60 £0.50
31	WE25813801 In stock	Safety Switch Spring	£5.44 £4.53
32	WE32702600 Out of stock	Gear Change Lever Assy	£42.58 £35.48
33	WE01820700 Out of stock	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.52 £0.43
34	WE31302500 Out of stock	Spacer 20mm X 5.16Id	£3.38 £2.82
35	WE18806100 Out of stock	Trunion (PTO Engage)	£7.46 £6.22
37	WE32700400 Out of stock	Gear Change Crossover Assy	£94.70 £78.92
38	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.24 £0.20
39	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.60 £0.50
41	WE01821600 Out of stock	Bolt 3.8 X 2.1.2	£1.08 £0.90
43	WE29200300 Out of stock	Sweeper Link Arm	£14.08 £11.73
44	WE189502700 Out of stock	Spacer 12.7Od. 10.2 Id . 9mm L	£1.06 £0.88
45	WE049381500 Out of stock	38 UNF Half Nut Bright Zinc Finish	£0.40 £0.33
50	WE35803600 Out of stock	Gear Select Label	£4.04 £3.37
