Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 15 Front Axel

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

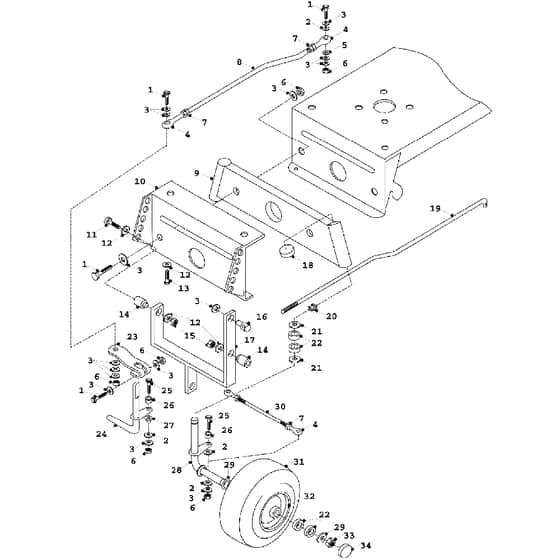

15 Front Axel Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE01821500 Out of stock	Bolt 3.8UNF X 2.1.4 HT Z.P	£2.36 £1.97
2	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£7.22 £6.02
3	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
4	WE52801200 Out of stock	Rose Joint 3.8 X 3.8UNF Female	£46.68 £38.90
5	WE189513700 Out of stock	X.W Series 15mm Rose Joint Spa	£2.44 £2.03
6	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
7	WE049381500 Out of stock	38 UNF Half Nut Bright Zinc Finish	£0.40 £0.33
8	WE18806300 Out of stock	Steering Link Rod	£18.58 £15.48
9	WE32700500 Out of stock	Axle Beam Assy (K)	£189.72 £158.10
10	WE27102900 Out of stock	Rotating Blades	£33.90 £28.25
11	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.32 £1.10
12	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
13	WE02827600 Out of stock	Set Screw	£0.64 £0.53
15	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
17	WE402002000 Out of stock	Kit Front Cradle (Replaces MK3 Version)	£112.88 £94.07
18	WE27122900 Out of stock	A & C330 Front Axle RH Slinger	£6.40 £5.33
19	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
20	WE07921200 In stock	19mm External Circlip C1A1400.	£0.36 £0.30
21	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
22	WE10802200 Out of stock	Front Wheel Bearing	£23.44 £19.53
23	WE32702500 Out of stock	Steering Arm Assy	£45.24 £37.70
24	WE18801000 Out of stock	Stub Axle Assy R.H	£69.52 £57.93
25	WE01821700 Out of stock	Tie Rod 204456	£1.96 £1.63
26	WE31302400 Out of stock	Rose Joint Boss	£8.98 £7.48
27	WE31337100 Out of stock	Rose Joint Shoulder Boss (Long	£19.84 £16.53
28	WE18800900 Out of stock	Stub Axle Assy L.H	£67.30 £56.08
29	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.60 £0.50
30	WE31801300 Out of stock	3.8 UNF - Track Rod	£0.00 £0.00
33	WE04822400 Out of stock	Nyloc Nut 1.2UNC	£0.62 £0.52
