Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 13 Chassis And PTO Drive

Name: Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 13 Chassis And PTO Drive
SKU: k125k15_01011991_01011992_13-group
Price: 0.20 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 13 Chassis And PTO Drive

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

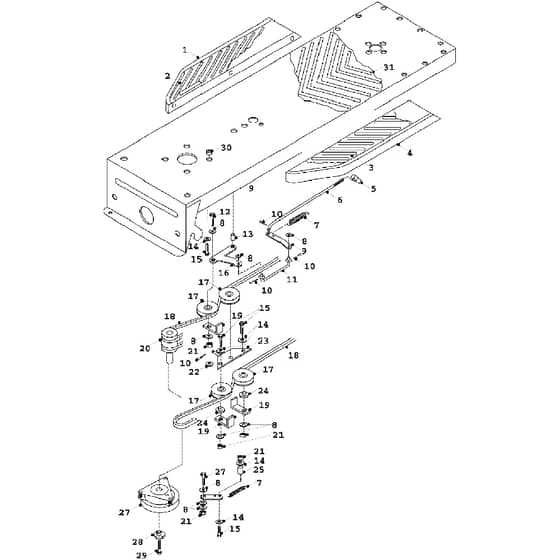

13 Chassis And Pto Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	WE18806100 Out of stock	Trunion (PTO Engage)	£7.46 £6.22
6	WE31805700 Out of stock	PTO Engage Rod	£22.24 £18.53
7	WE25812201 Out of stock	Brake Return Spring	£8.20 £6.83
8	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
9	WE27103800 Out of stock	Back Plate Assy 4.3 Bushel Sc	£4.68 £3.90
10	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.24 £0.20
11	WE32701500 Out of stock	Link Barpto Drive Assy	£19.52 £16.27
12	WE01820700 Out of stock	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.52 £0.43
13	WE52824700 Out of stock	Oilite Bush	£5.42 £4.52
14	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
15	WE01848700 Out of stock	3.8UNC X 1 1.4 Bolt BZP	£1.64 £1.37
17	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
18	WE2281110A In stock	Transmission Belt	£48.74 £40.62
19	WE307187100 Out of stock	Belt Keeper	£8.02 £6.68
20	WE31335700 Out of stock	Engine Pulley	£183.82 £153.18
21	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
22	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.60 £0.50
23	WE32706402 Out of stock	Jockey Pulley Plate C.W 528247	£39.86 £33.22
24	WE18831600 In stock	Spacer Jockey Wheel	£4.68 £3.90
25	WE31302500 Out of stock	Spacer 20mm X 5.16Id	£3.38 £2.82
27	WE44815200 Out of stock	Electric Clutch 20.50	£399.48 £332.90
28	WE183016800 Out of stock	2050 Engine Pulley Cap	£13.86 £11.55
29	WE01822000 Out of stock	Bolt 7.16 X 5 UNF Self Col. Pr	£6.80 £5.67
