Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 09 Steering Console

Name: Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 09 Steering Console
SKU: k125k15_01011991_01011992_09-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - From 01-01-1991 To 01-01-1992 - 09 Steering Console

Description

Countax K Series

K12.5 K15 - Tractor

From 01-01-1991 To 01-01-1992

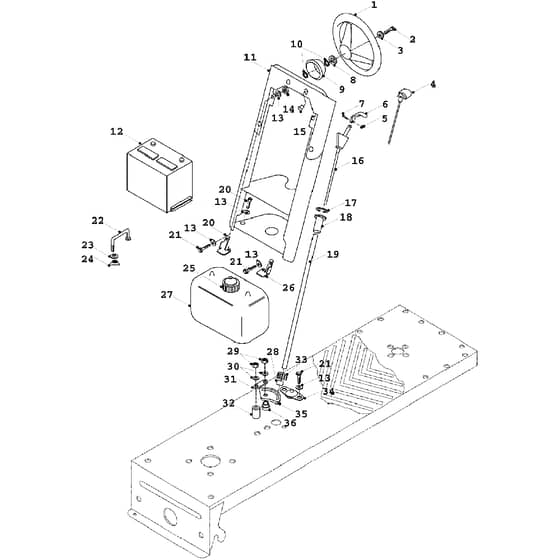

09 Steering Console Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE149591300 Out of stock	Steering Wheel Assy (2013)	£98.96 £82.47
2	WE02819600 In stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
3	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£3.20 £2.67
4	WE52810300 In stock	Choke Control	£27.48 £22.90
5	WE04885900 In stock	Nut	£0.90 £0.75
6	WE14810400 Out of stock	Control Knob (Throttle Cable)	£9.90 £8.25
7	WE02821800 Out of stock	Frame Weldment Cl125 520025H	£0.22 £0.18
10	WE088004000 In stock	M10 Internal Shakeproof Washer	£0.60 £0.50
13	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
14	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
15	WE12824100 Out of stock	Pop Rivet 4mm X12mm	£0.34 £0.28
16	WE528004501 Out of stock	Throttle Cable Single Cylinder	£43.62 £36.35
17	WE07823400 In stock	E Clip 1.2	£0.86 £0.72
18	WE149588800 Out of stock	Steering Column Upper Bush	£4.52 £3.77
19	WE31328400 Out of stock	Steering Column C-Series	£77.52 £64.60
20	WE307187400 Out of stock	2002 Fuel Tank Brkt	£9.82 £8.18
21	WE02827600 Out of stock	Set Screw	£0.64 £0.53
22	WE313008500 Out of stock	Battery Clamp	£22.78 £18.98
23	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
24	WE04822600 Out of stock	Wingnut 1.4Bsw	£0.98 £0.82
25	WE01538400 In stock	Fuel Cap	£16.57 £13.81
27	WE20870800 Out of stock	3 Pulley (Capitol)	£48.00 £40.00
28	WE08822700 In stock	Washer 5.8 T3 Lp	Was £0.58 £0.48 Special Price £0.42 £0.35
29	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
30	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
32	WE31337500 Out of stock	Steering Support Boss	£18.08 £15.07
33	WE31302300 Out of stock	Steering Pinion	£117.34 £97.78
34	WE10801700 Out of stock	Column Lower Bearing	£35.17 £29.31
35	WE18801400 Out of stock	15T K.C Series Steering Quadra	£167.52 £139.60
36	WE31337400 Out of stock	Steering Rack Pivot	£17.68 £14.73
