Description

Countax K Series

K12.5 K15 - Tractor

From To -

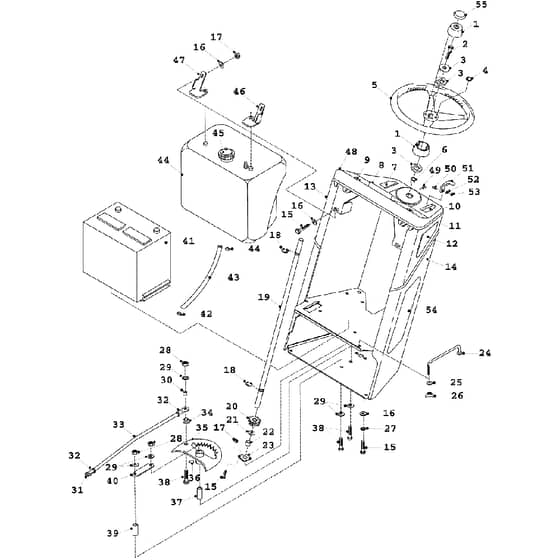

30 K15K18 Console Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	WE02819600 Out of stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
4	WE08869700 Out of stock	1.4 Starlock Washer	£0.56 £0.47
5	WE149591300 Out of stock	Steering Wheel Assy (2013)	£98.96 £82.47
6	WE149588800 Out of stock	Steering Column Upper Bush	£4.52 £3.77
7	WE52907500 Out of stock	Dashboard Decal Non He	£5.78 £4.82
14	WE27708400 Out of stock	Console Assy	£127.06 £105.88
15	WE02827600 Out of stock	Set Screw	£0.64 £0.53
17	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
18	WE07823400 In stock	E Clip 1.2	£0.86 £0.72
19	WE31328400 Out of stock	Steering Column C-Series	£77.52 £64.60
20	WE31302300 Out of stock	Steering Pinion	£117.34 £97.78
21	WE08822700 In stock	Washer 5.8 T3 Lp	Was £0.58 £0.48 Special Price £0.42 £0.35
22	WE18401500 Out of stock	Steering Rod Spacer	£10.20 £8.50
23	WE10801700 Out of stock	Column Lower Bearing	£35.17 £29.31
24	WE313008500 Out of stock	Battery Clamp	£22.78 £18.98
25	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
26	WE04822600 Out of stock	Wingnut 1.4Bsw	£0.98 £0.82
27	WE088003800 In stock	M8 Internally Serrated Shakepr	£0.60 £0.50
28	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
29	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
30	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£7.22 £6.02
31	WE10872600 In stock	10mm Rod End	£27.42 £22.85
32	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
33	WE18806300 Out of stock	Steering Link Rod	£18.58 £15.48
34	WE189513700 Out of stock	X.W Series 15mm Rose Joint Spa	£2.44 £2.03
35	WE18801400 Out of stock	15T K.C Series Steering Quadra	£167.52 £139.60
36	WE11808600 Out of stock	Grease Nipple	£0.92 £0.77
37	WE31337400 Out of stock	Steering Rack Pivot	£17.68 £14.73
38	WE01821600 Out of stock	Bolt 3.8 X 2.1.2	£1.08 £0.90
39	WE31337500 Out of stock	Steering Support Boss	£18.08 £15.07
42	WE11867100 Out of stock	Hose Clip (Spring Type)	£0.90 £0.75
43	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
43	WE14803200 Out of stock	Fuel Feed Pipe 80059	£10.66 £8.88
44	WE14803000 Out of stock	Fuel Tank	£59.42 £49.52
45	WE01538400 In stock	Fuel Cap	£16.57 £13.81
46	WE307187400 Out of stock	2002 Fuel Tank Brkt	£9.82 £8.18
48	WE14859100 Out of stock	Console	£45.64 £38.03
49	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
50	WE02826300 In stock	M4 X 12 Pozi Pan S.S Zinc Plat	£0.19 £0.16
51	WE14810400 Out of stock	Control Knob (Throttle Cable)	£9.90 £8.25
