Countax K12.5 K15 - - 21 Peerless Transmission

Name: Countax K12.5 K15 - - 21 Peerless Transmission
SKU: k125k15___21-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - - 21 Peerless Transmission

Description

Countax K Series

K12.5 K15 - Tractor

From To -

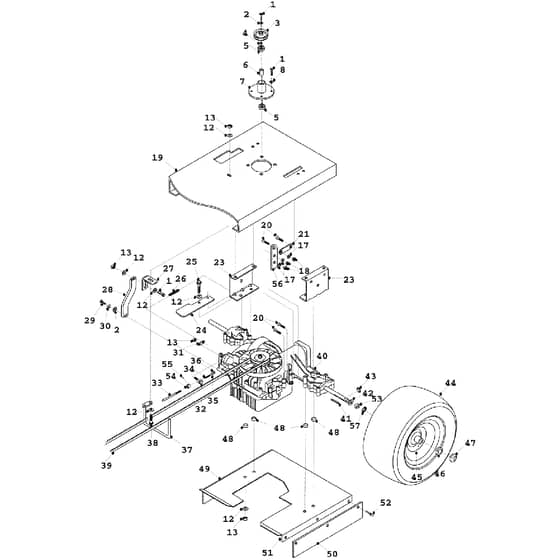

21 Peerless Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE02827600 Out of stock	Set Screw	£0.64 £0.53
2	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£0.22 £0.18
3	WE20870800 Out of stock	3 Pulley (Capitol)	£48.00 £40.00
4	WE31306200 Out of stock	PTO End Spacer	£6.22 £5.18
5	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
6	WE31334800 Out of stock	Spacer PTO Centre	£14.28 £11.90
7	WE40835800 Out of stock	PTO Bearing Housing MK3 Comp.	£219.46 £182.88
8	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
12	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
13	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
17	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
18	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
19	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
20	WE01926100 Out of stock	Butt To Nose Connector 07331	£0.42 £0.35
23	WE30131600 Out of stock	Manual.Hydro Gearbox Bracket	£23.36 £19.47
25	WE01854700 Out of stock	Bolt 5.16X3 1.2In UNF	£1.08 £0.90
26	WE25813801 In stock	Safety Switch Spring	£5.44 £4.53
27	WE30137700 Out of stock	Torque Bracket	£19.72 £16.43
28	WE32728200 Out of stock	Torque Arm (Peerless)	£28.92 £24.10
29	WE02822100 Out of stock	Screw 5.16 Tri-Lock	£4.44 £3.70
30	WE31302800 Out of stock	Spacer 7mm X 5.16Id	£5.88 £4.90
32	WE18326700 Out of stock	Rider Brake Rod Trunnion Hydro	£8.32 £6.93
33	WE32729500 Out of stock	Brake Rod (Peerless Hydro)	£26.74 £22.28
34	WE25808300 Out of stock	Brake Rod Spring	£2.50 £2.08
35	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
36	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
37	WE32728400 Out of stock	Belt Restraint Assy (Peerless)	£7.32 £6.10
38	WE02819600 Out of stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
39	WE22919900 Out of stock	Dayco A76 Super 2 Hydrostatic	£60.80 £50.67
41	WE09830700 Out of stock	Keyrear Wheel	£5.54 £4.62
42	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
43	WE07823200 Out of stock	E Clip 3.4	£0.88 £0.73
44	WE19802302 Out of stock	P322 18X9508 Wanda	£124.84 £104.03
46	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
47	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
48	WE31302500 Out of stock	Spacer 20mm X 5.16Id	£3.38 £2.82
49	WE30144100 Out of stock	Transaxle Deflector (Peerless)	£39.60 £33.00
50	WE14868900 Out of stock	Rubber Flap (T.Axle Deflector)	£11.70 £9.75
51	WE30144200 Out of stock	Transaxle Defector Strip Manua	£2.26 £1.88
52	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.30 £0.25
53	WE31323500 Out of stock	H.E Lift Bar Spacer	£8.62 £7.18
55	WE02920400 Out of stock	5.16 X 5.8 UNC Grubscrew	£0.96 £0.80
