Countax K12.5 K15 - - 20 K55 Tuff Torq Transmission

Name: Countax K12.5 K15 - - 20 K55 Tuff Torq Transmission
SKU: k125k15___20-group
Price: 0.10 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax K12.5 K15 - - 20 K55 Tuff Torq Transmission

Description

Countax K Series

K12.5 K15 - Tractor

From To -

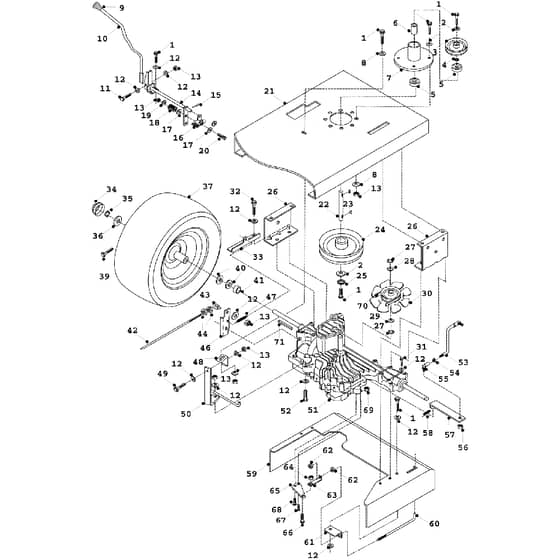

20 K55 Tuff Torq Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE02827600 Out of stock	Set Screw	£0.64 £0.53
2	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£0.22 £0.18
3	WE20870800 Out of stock	3 Pulley (Capitol)	£48.00 £40.00
4	WE31306200 Out of stock	PTO End Spacer	£6.22 £5.18
5	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
6	WE31334800 Out of stock	Spacer PTO Centre	£14.28 £11.90
7	WE40835800 Out of stock	PTO Bearing Housing MK3 Comp.	£219.46 £182.88
8	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
9	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
10	WE32702600 Out of stock	Gear Change Lever Assy	£42.58 £35.48
11	WE01820800 Out of stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.62 £0.52
12	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
13	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
14	WE32724300 Out of stock	Tuff Torq Gear Crossover Assy	£94.70 £78.92
15	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.24 £0.20
16	WE30137800 Out of stock	Friction Plate (Tuff Torq Hydr	£23.36 £19.47
18	WE25808300 Out of stock	Brake Rod Spring	£2.50 £2.08
21	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
22	WE31306000 Out of stock	PTO Shaft	£59.84 £49.87
23	WE09823900 In stock	Key No 61	£0.84 £0.70
24	WE20870702 Out of stock	7 PTO Pulley	£48.74 £40.62
25	WE088003800 In stock	M8 Internally Serrated Shakepr	£0.60 £0.50
26	WE30131600 Out of stock	Manual.Hydro Gearbox Bracket	£23.36 £19.47
28	WE089526200 In stock	Washer M14 Form A	Was £0.20 £0.17 Special Price £0.12 £0.10
30	WE40505401 In stock	K55 Pulley & Fan Kit	£71.82 £59.85
31	WE01821100 In stock	Bolt 5.16UNF X 2.1.2 HT Z.P	Was £0.70 £0.58 Special Price £0.50 £0.42
32	WE01854700 Out of stock	Bolt 5.16X3 1.2In UNF	£1.08 £0.90
33	WE30138600 Out of stock	Brake Stop Plate	£8.26 £6.88
34	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
35	WE07921200 In stock	19mm External Circlip C1A1400.	£0.36 £0.30
36	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
37	WE19802302 Out of stock	P322 18X9508 Wanda	£124.84 £104.03
39	WE14889200 Out of stock	Wheel Valve	£10.92 £9.10
40	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
41	WE31324900 Out of stock	17mm Wheel Spacer	£16.44 £13.70
42	WE32723900 Out of stock	Discontinued	£21.72 £18.10
43	WE18325000 Out of stock	Brake Rod Trunnion (Hydro)	£7.52 £6.27
44	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
46	WE30138500 Out of stock	Brake Extension Plate	£32.14 £26.78
47	WE25813801 In stock	Safety Switch Spring	£5.44 £4.53
48	WE30137700 Out of stock	Torque Bracket	£19.72 £16.43
49	WE02819600 Out of stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
50	WE32724400 Out of stock	Torque Arm (Tuff Torq)	£37.16 £30.97
53	WE31325400 Out of stock	Speed Select Rod (Tuff Torq Hy	£19.44 £16.20
55	WE32879600 Out of stock	Rider M8 Gear Select Ball Join	£21.94 £18.28
56	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
57	WE31206000 Out of stock	Speed Control Arm (Tuff Torq)	£23.74 £19.78
58	WE05916800 Out of stock	M6 Roll Pin	£2.98 £2.48
59	WE30138100 Out of stock	K55 Transaxle Deflector	£45.50 £37.92
60	WE18322800 Out of stock	Dump Valve Rod Tuff Torq	£9.42 £7.85
61	WE30138700 Out of stock	Discontinued When Stock Gone	£2.08 £1.73
62	WE04897500 In stock	1.4 UNC Nyloc	Was £0.28 £0.23 Special Price £0.20 £0.17
64	WE04891400 In stock	Nyloc Nut1.4UNF	£0.60 £0.50
66	WE02827700 In stock	Set Screw	Was £0.30 £0.25 Special Price £0.13 £0.11
68	WE01848700 Out of stock	3.8UNC X 1 1.4 Bolt BZP	£1.64 £1.37
69	WE04917100 Out of stock	M4 Nyloc Nut	£0.22 £0.18
70	WE22912300 In stock	Transmission Belt	£60.86 £50.72
71	WE09830700 Out of stock	Keyrear Wheel	£5.54 £4.62
