Countax K12.5 K15 - - 19 Hydrogear Transmission

Description

Countax K Series

K12.5 K15 - Tractor

From To -

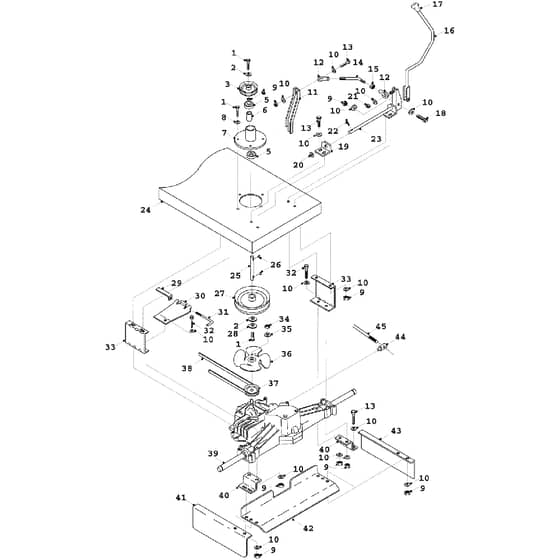

19 Hydrogear Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE02827600 Out of stock	Set Screw	£0.64 £0.53
2	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£0.22 £0.18
3	WE20870800 Out of stock	3 Pulley (Capitol)	£48.00 £40.00
4	WE31306200 Out of stock	PTO End Spacer	£6.22 £5.18
5	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
6	WE31334800 Out of stock	Spacer PTO Centre	£14.28 £11.90
7	WE40835800 Out of stock	PTO Bearing Housing MK3 Comp.	£219.46 £182.88
8	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
9	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
10	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
12	WE10896200 Out of stock	M8 X M8 Rod End R.H.Thread Fem	£23.60 £19.67
13	WE02819600 In stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
16	WE32719100 Out of stock	Hydro Lever	£81.74 £68.12
17	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
18	WE01820700 Out of stock	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.52 £0.43
20	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.60 £0.50
24	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
25	WE31306000 Out of stock	PTO Shaft	£59.84 £49.87
26	WE09823900 In stock	Key No 61	£0.84 £0.70
27	WE20870702 Out of stock	7 PTO Pulley	£48.74 £40.62
28	WE088003800 In stock	M8 Internally Serrated Shakepr	£0.60 £0.50
31	WE18322800 Out of stock	Dump Valve Rod Tuff Torq	£9.42 £7.85
32	WE01821100 In stock	Bolt 5.16UNF X 2.1.2 HT Z.P	Was £0.70 £0.58 Special Price £0.50 £0.42
33	WE30131600 Out of stock	Manual.Hydro Gearbox Bracket	£23.36 £19.47
34	WE04897700 Out of stock	1.2 Nyloc Nut	£0.62 £0.52
37	WE20894800 Out of stock	Hydro Gear Tx Pulley With Spli	£41.76 £34.80
38	WE22906300 Out of stock	Transmission Belt	£63.50 £52.92
44	WE18849900 Out of stock	PTO Engage Trunnion	£7.64 £6.37
