Countax K12.5 K15 - - 06 PTO And Transmission

Name: Countax K12.5 K15 - - 06 PTO And Transmission
SKU: k125k15___06-group
Price: 0.12 GBP
Availability: InStock

Description

Countax K Series

K12.5 K15 - Tractor

From To -

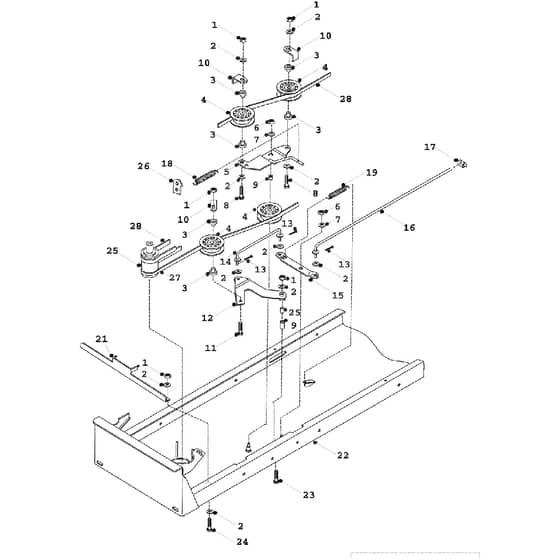

06 Pto And Transmission Assembly Parts Diagram

	Part No.	Details
1	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
2	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
3	WE18831600 In stock	Spacer Jockey Wheel	£4.68 £3.90
4	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
5	WE32706402 Out of stock	Jockey Pulley Plate C.W 528247	£39.86 £33.22
6	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
7	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
9	WE52824700 Out of stock	Oilite Bush	£5.42 £4.52
10	WE307187100 Out of stock	Belt Keeper	£8.02 £6.68
11	WE01820700 Out of stock	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.52 £0.43
13	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.24 £0.20
14	WE32701500 Out of stock	Link Barpto Drive Assy	£19.52 £16.27
15	WE27103800 Out of stock	Back Plate Assy 4.3 Bushel Sc	£4.68 £3.90
16	WE31805700 Out of stock	PTO Engage Rod	£22.24 £18.53
17	WE18806100 Out of stock	Trunion (PTO Engage)	£7.46 £6.22
18	WE25812201 Out of stock	Brake Return Spring	£8.20 £6.83
19	WE25849600 Out of stock	Belt Tension Spring	£8.20 £6.83
21	WE32707400 Out of stock	Clutch Restraint Bracket	£64.96 £54.13
22	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
24	WE02827600 Out of stock	Set Screw	£0.64 £0.53
25	WE31330500 Out of stock	Engine Pulleymag Stop Clutch	£166.46 £138.72
25	WE31335700 Out of stock	Engine Pulley	£183.82 £153.18
26	WE30118300 Out of stock	Brake Spring Plate	£7.64 £6.37
27	WE2281110A In stock	Transmission Belt	£48.74 £40.62
28	WE22912300 In stock	Tuff Torq A78 Clutch Belt Dayc	£60.86 £50.72
