Description

Countax K Series

K12.5 K15 - Tractor

From To -

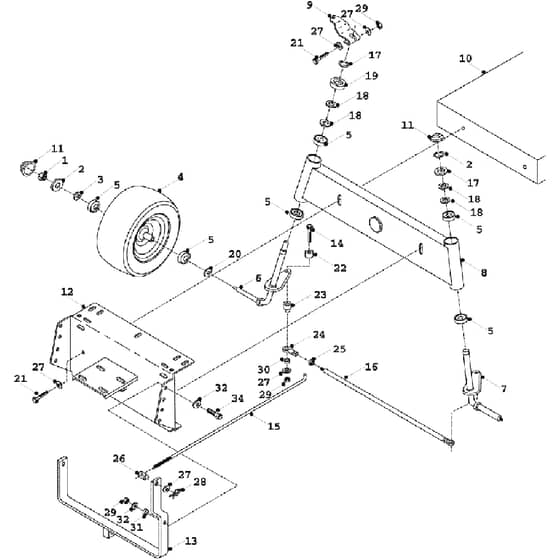

01 Front Axel Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE04822400 Out of stock	Nyloc Nut 1.2UNC	£0.62 £0.52
2	WE30128100 Out of stock	Hub Cap Washer Front Wheel	£1.92 £1.60
3	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.60 £0.50
4	WE19802302 Out of stock	P322 18X9508 Wanda	£124.84 £104.03
5	WE10802200 Out of stock	Front Wheel Bearing	£23.44 £19.53
6	WE18801000 Out of stock	Stub Axle Assy R.H	£69.52 £57.93
7	WE18800900 Out of stock	Stub Axle Assy L.H	£67.30 £56.08
8	WE32700500 Out of stock	Axle Beam Assy (K)	£189.72 £158.10
9	WE32702500 Out of stock	Steering Arm Assy	£45.24 £37.70
10	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
11	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
13	WE32701500 Out of stock	Link Barpto Drive Assy	£19.52 £16.27
14	WE01821700 Out of stock	Tie Rod 204456	£1.96 £1.63
15	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
16	WE31318300 In stock	M10 Track Rod	£34.78 £28.98
17	WE07921200 In stock	19mm External Circlip C1A1400.	£0.36 £0.30
18	WE30127900 In stock	Washer 32 X 19.5	£2.50 £2.08
19	WE27122900 Out of stock	A & C330 Front Axle RH Slinger	£6.40 £5.33
20	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
21	WE01821500 Out of stock	Bolt 3.8UNF X 2.1.4 HT Z.P	£2.36 £1.97
22	WE31302400 Out of stock	Rose Joint Boss	£8.98 £7.48
23	WE31337100 Out of stock	Rose Joint Shoulder Boss (Long	£19.84 £16.53
24	WE10872600 In stock	10mm Rod End	£27.42 £22.85
25	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
27	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
28	WE11836700 In stock	Rue Clip	£1.42 £1.18
29	WE04820200 In stock	Nyloc Nut 3.8UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
30	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£7.22 £6.02
32	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
34	WE02819600 In stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
