Countax Ibs Deck 42" - From 01-01-1996 To 01-01-1998 - 42 Ibs Deck

Name: Countax Ibs Deck 42" - From 01-01-1996 To 01-01-1998 - 42 Ibs Deck
SKU: countax_deck_ibsdeck42_01011996_01011998_42-group
Price: 0.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Ibs Deck 42" - From 01-01-1996 To 01-01-1998 - 42 Ibs Deck

Description

Countax IBS

IBS DECK 42" - Deck

From 01-01-1996 To 01-01-1998

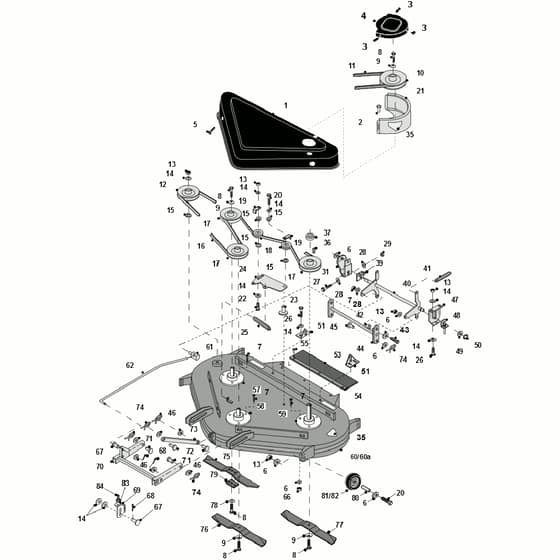

42 Ibs Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE148002402 Out of stock	Deck Lid Cover 42 Ibs	£127.80 £106.50
2	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£1.36 £1.13
3	WE4958 In stock	Firtree Fastener	£1.15 £0.96
4	WE149497400 Out of stock	Universal Deck Pulley Cover 20	£16.46 £13.72
5	WE02913100 In stock	6 X 8 Pozi S.S S.Tap	£0.25 £0.21
6	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
7	WE028001000 In stock	M8 X 16 M.Screw BZP	£0.70 £0.58
8	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30	£0.94 £0.78
9	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£9.86 £8.22
10	WE20870202 Out of stock	7 Deck Drive Pulley	£70.08 £58.40
11	WE22871200 In stock	Cutter Belt	£42.02 £35.02
12	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£19.44 £16.20
13	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
14	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£1.36 £1.13
15	WE18831600 In stock	Spacer Jockey Wheel	£32.98 £27.48
16	WE22870000 In stock	Cutter Deck Belt	£103.44 £86.20
17	WE20869502 In stock	5Internal Pulley.Keyway	£58.34 £48.62
18	WE20811500 In stock	PTO Jockey Pulley	£23.90 £19.92
19	WE307187100 Out of stock	Belt Keeper	£14.53 £12.11
20	WE028663200 Out of stock	M8X70mm Hex Bolt Zinc & Clear	£0.70 £0.58
21	WE327180100 Out of stock	Hgm.Ibs Deck Pulley Cover Driv	£97.80 £81.50
22	WE018001800 In stock	Bolt M8 X 50mm	£2.56 £2.13
23	WE183853800 Out of stock	Universal Jockey Pivot Spacer	£31.21 £26.01
24	WE32731000 In stock	Belt Tension Plate 96	£63.96 £53.30
25	WE25906200 In stock	Deck Tension Spring	£20.51 £17.09
26	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
27	WE018002400 Out of stock	M10 X 55 Hex Head Bolt	£0.70 £0.58
29	WE04886100 In stock	M10 Nyloc Nut	£0.72 £0.60
31	WE301122401 Out of stock	C Series Deck Lift Arm 20 Whee	£22.34 £18.62
35	WE148002600 Out of stock	Mulcher Deck Liner Inner 38	£208.80 £174.00
36	WE09921900 Out of stock	Key 1.4 X 1 Rounded	£0.40 £0.33
37	WE31328301 Out of stock	Deck Drive Pulley Spacer	£51.37 £42.81
39	WE307189601 Out of stock	2003 Rear Deck Hanging Brkt	£30.76 £25.63
40	WE328954100 Out of stock	C Series He Rear Deck Lift Cra	£218.64 £182.20
41	WE25885300 Out of stock	Deck Assist Spring	£13.19 £10.99
42	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£10.21 £8.51
43	WE018005700 Out of stock	Hx Hd Bolt Zink Plt & Clear Pa	£0.88 £0.73
44	WE549129100 Out of stock	Brkt Rear Deck Lift Link	£44.88 £37.40
45	WE31337200 In stock	Deck Lift Pin (Rear)	£14.06 £11.72
46	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
47	WE301143700 Out of stock	Hex Adjuster Deck Level Bracke	£27.04 £22.53
48	WE327029300 Out of stock	Rear Deck Cradle Adjuster Brkt	£6.20 £5.17
49	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
50	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
51	WE541039100 Out of stock	Rear Deck Bracket 4 mm	£15.70 £13.08
53	WE14868900 Out of stock	Rubber Flap (T.Axle Deflector)	£11.70 £9.75
54	WE541113000 Out of stock	Sweeper & Combi Deck Flap Stri	£27.04 £22.53
55	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 103	£1.36 £1.13
57	WE40503607 In stock	Bearing Housing Assy Short Sha	£111.00 £92.50
59	WE40503507 In stock	Deck Bearing Housing Assy Long	£119.40 £99.50
60	WE32726500 Out of stock	42 Ibs Deck Shell From 1998 On	£1,455.60 £1,213.00
61	WE189497500 Out of stock	2002 Tractor Deck Level Trunio	£16.79 £13.99
62	WE18805900 Out of stock	Height Adjuster Rod	£28.34 £23.62
67	WE31339401 In stock	Deck Swing Lift Pin 1.2 X 46.5	£12.38 £10.32
68	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
69	WE301040000 Out of stock	20.50 Deck Lever Bracket	£41.90 £34.92
70	WE32703701 Out of stock	Deck Carry Cradle Assembly Fro	£188.04 £156.70
71	WE31336800 In stock	Deck Lift Pin (Front)	£33.32 £27.77
72	WE31338200 In stock	Deck Push Rod Pin	£14.77 £12.31
73	WE29203900 Out of stock	Deck Bar 36	£55.51 £46.26
74	WE11836700 In stock	Rue Clip	£1.21 £1.01
75	WE16869202 In stock	15 Blade. R.H	£21.14 £17.62
76	WE16869102 In stock	Blade 15	£23.64 £19.70
77	WE40505300 In stock	42 Blade Kit	£99.50 £82.92
78	WE088004000 In stock	M10 Internal Shakeproof Washer	£0.19 £0.16
79	WE27111200 In stock	Deck Pan Tab Washer	£4.99 £4.16
80	WE31337600 Out of stock	Scuff Wheel Hub. Belt Guard Sp	£49.25 £41.04
81	WE19905500 In stock	Anti Scalp Wheel 1.2 Bore (Box	£16.92 £14.10
82	WE149495800 In stock	Antiscalp Wheel-March 2000	£24.02 £20.02
83	WE189501800 Out of stock	Deck Level Hex Adjuster Nut -	£17.60 £14.67
