Countax Ibs Deck 36" - From 01-01-1995 To 01-01-1996 - 36 Ibs Deck

Name: Countax Ibs Deck 36" - From 01-01-1995 To 01-01-1996 - 36 Ibs Deck
SKU: countax_deck_ibsdeck36_01011995_01011996_36-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Ibs Deck 36" - From 01-01-1995 To 01-01-1996 - 36 Ibs Deck

Description

Countax IBS

IBS DECK 36" - Deck

From 01-01-1995 To 01-01-1996

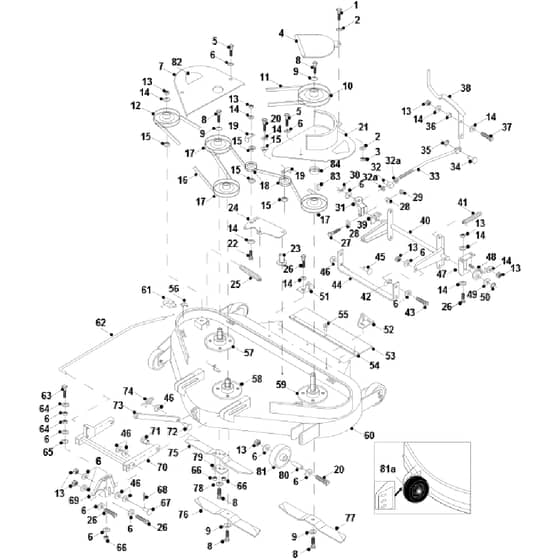

36 Ibs Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE02827700 In stock	Set Screw	£0.30 £0.25
2	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
3	WE04891400 Out of stock	Nyloc Nut1.4UNF	£0.60 £0.50
4	WE149497400 Out of stock	Universal Deck Pulley Cover 20	£16.46 £13.72
5	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
6	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
8	WE02825300 In stock	Bolt 3.8 X 1 1.4 UNF	£0.98 £0.82
9	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£9.86 £8.22
10	WE20870202 Out of stock	7 Deck Drive Pulley	£70.08 £58.40
11	WE22949800 In stock	Cutter Belt	£40.64 £33.87
12	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£19.44 £16.20
13	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
15	WE18831600 In stock	Spacer Jockey Wheel	£32.98 £27.48
16	WE22869800 In stock	Cutter Deck Belt	£99.48 £82.90
17	WE20869502 In stock	5Internal Pulley.Keyway	£58.34 £48.62
18	WE20811500 In stock	PTO Jockey Pulley	£23.90 £19.92
19	WE307187100 Out of stock	Belt Keeper	£14.53 £12.11
20	WE01821200 In stock	Bolt 5.16 X 2.3.4	£2.41 £2.01
22	WE01820800 Out of stock	Bolt 5.16 UNF X 1 3.4 BZP	£0.62 £0.52
23	WE183853800 Out of stock	Universal Jockey Pivot Spacer	£31.21 £26.01
24	WE32731000 In stock	Belt Tension Plate 96	£63.96 £53.30
25	WE25906200 In stock	Deck Tension Spring	£20.51 £17.09
26	WE02827600 Out of stock	Set Screw	£0.64 £0.53
27	WE01821500 Out of stock	Bolt 3.8UNF X 2.1.4 HT Z.P	£2.36 £1.97
28	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
29	WE04820200 In stock	Nyloc Nut 3.8UNF	£0.48 £0.40
30	WE07823700 Out of stock	3mm L Type R Clip (Large)	£1.18 £0.98
31	WE301122401 Out of stock	C Series Deck Lift Arm 20 Whee	£22.34 £18.62
32	WE04822200 Out of stock	Locknut 5.16UNF Hex Z.P (32a)	£0.84 £0.70
32	WE18326700 Out of stock	Rider Brake Rod Trunnion Hydro	£8.32 £6.93
33	WE32703300 Out of stock	Deck Height Adjust Yoke	£118.20 £98.50
35	WE07846800 Out of stock	Circlip 3.8	£0.36 £0.30
36	WE18317400 Out of stock	Deck Height Pivot Boss	£9.74 £8.12
37	WE01820900 Out of stock	Bolt 5.16UNF X 2 Zinc.Clear Un	£0.94 £0.78
39	WE307189601 Out of stock	2003 Rear Deck Hanging Brkt	£30.76 £25.63
40	WE327361700 Out of stock	2003 Rear Deck Hanging Brktc-S	£114.14 £95.12
41	WE25885300 Out of stock	Deck Assist Spring	£13.19 £10.99
42	WE18302700 Out of stock	Spacer	£6.06 £5.05
43	WE01820600 Out of stock	Bolt 5.16UNF X 1.1.4 HT Z.P	£0.54 £0.45
45	WE31337200 In stock	Deck Lift Pin (Rear)	£14.06 £11.72
46	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
47	WE30709200 Out of stock	Rear Deck Level Bracket	£41.28 £34.40
48	WE30117601 Out of stock	Rear Deck Level Cam	£27.22 £22.68
49	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
50	WE07823200 Out of stock	E Clip 3.4	£0.88 £0.73
51	WE541039100 Out of stock	Rear Deck Bracket 4 mm	£15.70 £13.08
52	WE30121400 Out of stock	Rear Deck Hanger Bracket L.H	£21.28 £17.73
53	WE14868900 Out of stock	Rubber Flap (T.Axle Deflector)	£11.70 £9.75
54	WE541113000 Out of stock	Sweeper & Combi Deck Flap Stri	£27.04 £22.53
55	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 103	£1.36 £1.13
56	WE04852800 In stock	M8 Captive Nut	£1.27 £1.06
57	WE40503607 In stock	Bearing Housing Assy Short Sha	£111.00 £92.50
59	WE40503507 In stock	Deck Bearing Housing Assy Long	£119.40 £99.50
60	WE32726700 Out of stock	36 Ibs Deck Shell 1998 To 2008	£1,442.40 £1,202.00
61	WE189497900 Out of stock	2002 A Series Deck Level Truni	£21.41 £17.84
62	WE18805900 Out of stock	Height Adjuster Rod	£28.34 £23.62
63	WE028663200 Out of stock	M8X70mm Hex Bolt Zinc & Clear	£0.70 £0.58
65	WE08823500 Out of stock	Starloc Washer 5.16Id X 5.8Od	£0.60 £0.50
66	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
69	WE301040000 Out of stock	20.50 Deck Lever Bracket	£41.90 £34.92
70	WE32703701 Out of stock	Deck Carry Cradle Assembly Fro	£188.04 £156.70
71	WE31336800 In stock	Deck Lift Pin (Front)	£33.32 £27.77
72	WE31338200 In stock	Deck Push Rod Pin	£14.77 £12.31
74	WE11836700 In stock	Rue Clip	£1.21 £1.01
75	WE16929000 In stock	17.5 R H Blade	£31.60 £26.33
76	WE16869001 In stock	Blade 12 L.H Harden	£22.72 £18.93
77	WE40505200 Out of stock	36 & 38 Blade Kit	£96.76 £80.63
78	WE088004000 In stock	M10 Internal Shakeproof Washer	£0.19 £0.16
79	WE27111200 In stock	Deck Pan Tab Washer	£4.99 £4.16
80	WE31337600 Out of stock	Scuff Wheel Hub. Belt Guard Sp	£49.25 £41.04
81	WE149495800 In stock	Antiscalp Wheel-March 2000 (81a)	£24.02 £20.02
81	WE19905500 In stock	Anti Scalp Wheel 1.2 Bore (Box	£16.92 £14.10
82	WE35803300 Out of stock	Rider Deck Danger Decal	£8.26 £6.88
83	WE09830700 Out of stock	Keyrear Wheel	£4.58 £3.82
84	WE31328301 Out of stock	Deck Drive Pulley Spacer	£51.37 £42.81
