Countax E36 - From 01-05-2017 - 03B Front Axle

Name: Countax E36 - From 01-05-2017 - 03B Front Axle
SKU: e36_01052017_03b-group
Price: 0.23 GBP
Availability: InStock

Description

Countax E Series

E36 - Tractor

From 01-05-2017

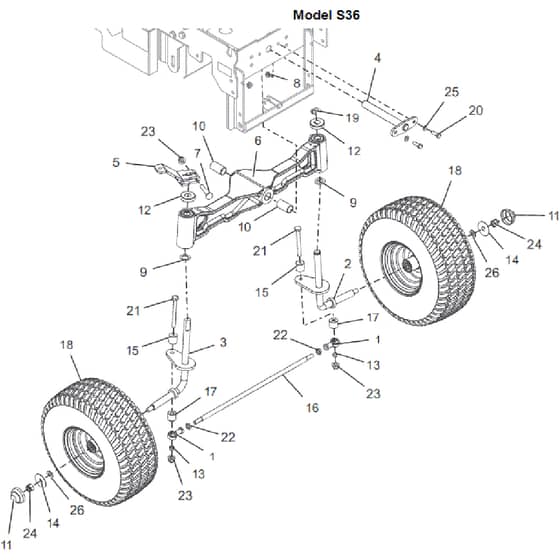

03B Front Axle Parts Diagram

	Part No.	Details
1	WE10872600 In stock	10mm Rod End	£21.04 £17.53
2	WE327015100 Out of stock	L.H Stub Axle	£122.28 £101.90
3	WE328962000 Out of stock	RH Stub Axle C Srs	£62.02 £51.68
4	WE329599100 Out of stock	Alpha Axle Pin Asm	£44.84 £37.37
5	WE329701300 Out of stock	Asm Steering Arm (E36)	£8.78 £7.32
6	WE408802800 Out of stock	Front Axle Casting Assy - Coun	£231.24 £192.70
7	WE018005000 Out of stock	M10 X 60mm Coach Bolt Zinc.Cl	£0.66 £0.55
8	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
9	WE081258200 Out of stock	32 X 20 X 1mm Galv Washer	£6.50 £5.42
10	WE109011600 Out of stock	Axle Bearing Plastic - Igus Ps	£17.41 £14.51
11	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
12	WE183006200 Out of stock	Stub Axle Spacer	£7.96 £6.63
13	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£10.21 £8.51
14	WE30128100 Out of stock	Hub Cap Washer Front Wheel	£4.75 £3.96
16	WE31318300 In stock	M10 Track Rod	£60.36 £50.30
17	WE31337100 Out of stock	Rose Joint Shoulder Boss (Long	£36.65 £30.54
18	WE405111000 Out of stock	Wheel Assy 15 Wanda 2Wd C-Ser	£149.98 £124.98
19	WE07823200 Out of stock	E Clip 3.4	£0.88 £0.73
20	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
21	WE019478300 Out of stock	Bolt 100mm X M10	£1.12 £0.93
22	WE04872100 Out of stock	M10 Locknut	£0.38 £0.32
23	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
24	WE049381100 Out of stock	M12 Nyloc Nut	£0.28 £0.23
25	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£1.36 £1.13
26	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
