Countax D23-50Ln - From 01-01-2010 To 01-02-2012 - Hydrostatic Transmission

Description

Countax D Series

D23-50LN - Tractor

From 01-01-2010 To 01-02-2012

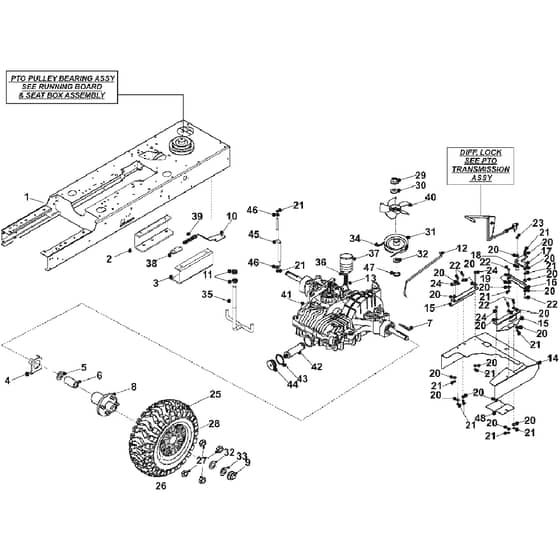

Hydrostatic Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327885600 Out of stock	Chassis (Yanmar)	£165.40 £137.83
2	WE307243100 Out of stock	D.K R.H 5mm Transaxle Bracket	£20.56 £17.13
3	WE307243000 Out of stock	D.K L.H 5mm Transaxle Bracket	£23.04 £19.20
4	WE307191901 Out of stock	K62 . 66 Transaxle Thrust Wash	£5.54 £4.62
5	WE089423500 Out of stock	Washer Transaxle	£3.24 £2.70
6	WE183018501 Out of stock	2050 Wheel Spacer	£13.62 £11.35
7	3666 Out of stock	Key 1.4 X 1.4	£5.54 £4.62
8	WE198001300 Out of stock	20.50 Rear Wheel Hub - Hukey-0	£58.04 £48.37
9	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
10	WE301119601 Out of stock	2050 Spring Finger Plate	£12.30 £10.25
11	WE049382500 Out of stock	M16 Half Nut BZP	£1.66 £1.38
12	WE313010600 Out of stock	20.50 Dump Valve Rod	£58.30 £48.58
13	WE178965501 Out of stock	Flexible Transaxle Reservoir P	£131.84 £109.87
14	WE301119700 Out of stock	20.50 Transaxle Deflector	£91.68 £76.40
15	WE301119500 Out of stock	20.50 Transaxle Grass Deflecto	£58.76 £48.97
16	WE301119300 Out of stock	20.50 Diff Lock Pedal Link Pla	£40.80 £34.00
17	WE301119200 Out of stock	20.50 Diff Lock Pedal Link Cra	£25.60 £21.33
18	WE18833700 Out of stock	Pivot (Deck Overlock)	£5.78 £4.82
19	WE31305100 Out of stock	PTO Plate Spacer	£7.96 £6.63
20	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
22	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
23	WE019478400 Out of stock	Bolt 110mm X M8	£1.14 £0.95
24	WE018003400 Out of stock	M8 X 90mm Hex Hd	£0.70 £0.58
25	WE198000400 Out of stock	20.50 Rear Tyre 23X10.5012Nhst	£244.06 £203.38
26	WE14889200 Out of stock	Wheel Valve	£10.92 £9.10
27	WE048000800 Out of stock	20.50 Wheel Nut	£2.64 £2.20
28	WE198000500 Out of stock	20.50 Rear Rim Assy	£150.46 £125.38
29	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
30	WE089418800 Out of stock	2050 Transaxle Fan Washer	£1.92 £1.60
31	WE20904400 In stock	20.50 Hydrostatic Box Pulley	£47.56 £39.63
33	WE07921200 In stock	19mm External Circlip C1A1400.	£0.36 £0.30
34	WE22950300 Out of stock	Grass Collector Belt	£24.90 £20.75
35	WE327890100 Out of stock	Diesel Yanmar PTO Belt Keep	£11.70 £9.75
37	WE148003300 Out of stock	K61.K71 Oil Reservoir Tank	£104.22 £86.85
38	WE301122000 Out of stock	A2050 Spring Tag	£5.50 £4.58
39	WE25813801 In stock	Safety Switch Spring	£5.44 £4.53
40	TT1A632085100 Out of stock	20.50 Hydro Cooling Fan	£21.04 £17.53
41	WE479389100 Out of stock	K66 Transaxle	£2,028.88 £1,690.73
45	WE183847700 Out of stock	Transaxle Steady (Diesel Yanma	£12.82 £10.68
46	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
47	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
48	WE307188800 Out of stock	K66 Transaxle Hydraulic Loop P	£9.56 £7.97
