Countax D18-50 - From 01-01-2007 To 01-01-2009 - 10 Seat

Name: Countax D18-50 - From 01-01-2007 To 01-01-2009 - 10 Seat
SKU: d1850_01012007_01012009_10-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax D18-50 - From 01-01-2007 To 01-01-2009 - 10 Seat

Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

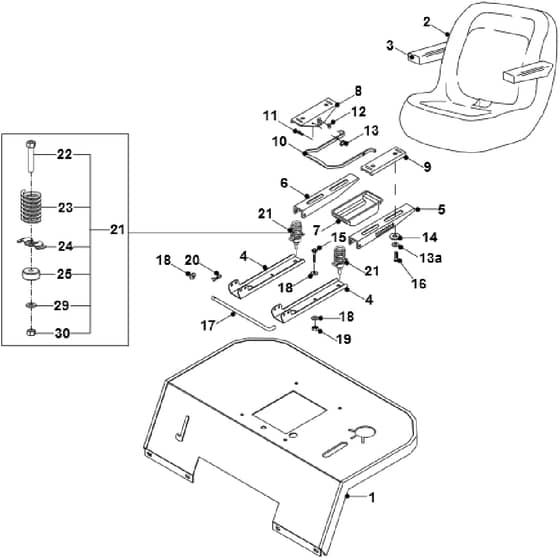

10 Seat Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE328957100 Out of stock	2003 Diesel Rearbody Welded As	£206.86 £172.38
2	WE405463500 Out of stock	Kita25 Seat Conversion Milsco To Seat	£522.32 £435.27
4	WE301985800 Out of stock	Seat Attachment Channel 2008	£53.36 £44.47
5	WE30117800 Out of stock	Adjustable Seat Channel L.H	£16.22 £13.52
6	WE30117700 Out of stock	Adjustable Seat Channel R.H	£16.22 £13.52
7	WE148003700 Out of stock	He Series Toolbox	£24.94 £20.78
9	WE30118000 Out of stock	Seat Plate Adjuster LH	£8.26 £6.88
10	WE30203100 Out of stock	Seat Handle	£7.76 £6.47
11	WE12855800 Out of stock	1.4 X 1.2 Steel Flat Hd Solid	£1.44 £1.20
12	WE25831100 Out of stock	Spring	£4.04 £3.37
13	WE08824200 Out of stock	Shakeproof Washer 1.4Id X 5.8O (13a)	£0.96 £0.80
13	WE07868700 Out of stock	1.4 Starloc Washer	£0.54 £0.45
14	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Wash	£0.28 £0.23
15	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
16	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
17	WE31301800 Out of stock	Seat Pivot Rod	£20.74 £17.28
18	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
19	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
20	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
21	WE405003200 Out of stock	Seat Spring Kit Assy	£8.90 £7.42
22	WE028003400 Out of stock	M10 X 40mm Socket Capscrew Zin	£0.82 £0.68
23	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
24	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
25	WE31330800 Out of stock	Spacer(He C-Series Seat Spring	£5.24 £4.37
29	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm T	£0.30 £0.25
30	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
