Countax D18-50 - From 01-01-2007 To 01-01-2009 - 1 Bonnet

Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

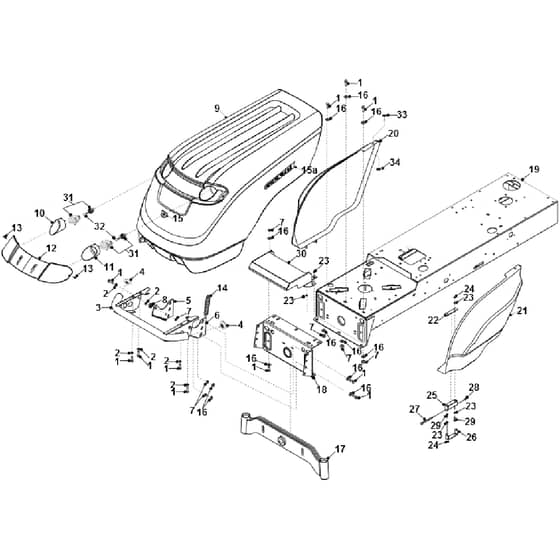

1 Bonnet Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
2	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
3	WE328956800 Out of stock	Stainless Bull Bar Dk & Jcb 04	£193.52 £161.27
4	WE148014400 Out of stock	Stainless Steel Bullbar Plasti	£1.14 £0.95
5	WE302015200 Out of stock	D1850 Bonnet Bracket Side Plat	£23.28 £19.40
6	WE302015300 Out of stock	D1850 Bonnet Bracket Side Plat	£10.46 £8.72
7	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
8	WE183017700 Out of stock	Foot Control Clutch Pedal Pivo	£4.24 £3.53
9	WE405008200 Out of stock	D Bonnet Assembly	£515.88 £429.90
10	WE148013600 Out of stock	C Series RH Light Can -2002	£2.90 £2.42
11	WE148013500 Out of stock	C Series LH Light Can -2002	£4.06 £3.38
12	WE148013400 Out of stock	C Series Bonnet Lens 2002	£33.68 £28.07
13	WE18005100 Out of stock	M4 X 16 Sckt Hd Counter Sunk S	£0.40 £0.33
14	WE25805200 Out of stock	Spring	£5.36 £4.47
15	WE359010100 Out of stock	Alluminium Brush Finish Count (15a)	£8.88 £7.40
16	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
17	WE327169300 Out of stock	D1850 Front Axle Welded Assy	£228.58 £190.48
18	WE327014600 Out of stock	Universal Front Axle Plate Ass	£125.50 £104.58
19	WE328957200 Out of stock	2003 Diesel Chassis Welded Ass	£501.10 £417.58
20	WE148015900 Out of stock	RH Side Panel For D1850 & K185	£161.54 £134.62
21	WE148015800 Out of stock	LH Side Panel For D1850 & K185	£82.58 £68.82
24	WE04885900 In stock	Nut	£0.90 £0.75
26	WE301142600 Out of stock	A+K Series Side Panel Hinge Lo	£4.74 £3.95
27	WE018005800 Out of stock	M6 X 85 Hex Head Bolt-Bright Z	£0.56 £0.47
28	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
29	WE02912200 Out of stock	M5 X 16 S.Screw	£0.42 £0.35
30	WE301059100 Out of stock	1850 Diesel Exhaust Heat Shiel	£90.68 £75.57
31	WE448008400 Out of stock	Light - C Series 2002 2Ba 008	£54.02 £45.02
32	WE448008500 Out of stock	Bulb - C Series 2002 Py21W	£2.06 £1.72
33	WE149501800 Out of stock	Dzus 1.4 Turn Alpha Console Wr	£1.36 £1.13
34	WE149500000 Out of stock	Dzus 1.4 Turn Retain Washer	£1.38 £1.15
