Countax D18-50 - From 01-01-2004 To 01-01-2007 - 9 Seat Box

Description

Countax D Series

D18-50 - Tractor

From 01-01-2004 To 01-01-2007

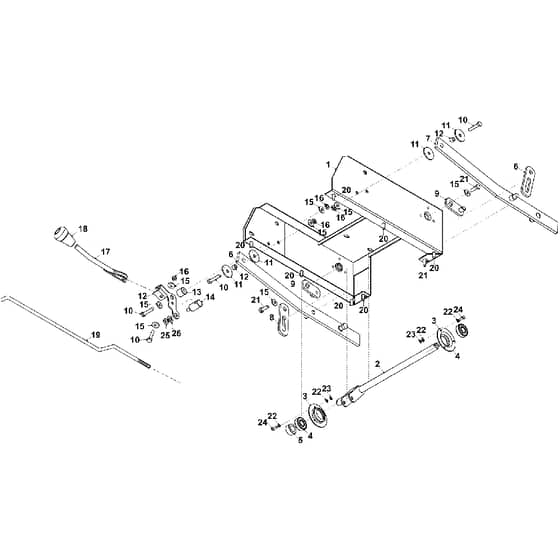

9 Seat Box Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327010400 Out of stock	20.50 Seat Box Assy	£94.78 £78.98
2	WE327009400 In stock	20.50 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
3	WE27106601 In stock	Bearing Housing 17mm	£28.68 £23.90
4	WE10845500 In stock	Bearing 6203Zz	£18.06 £15.05
5	WE31323500 Out of stock	H.E Lift Bar Spacer	£8.62 £7.18
6	WE32720300 Out of stock	H.E. Sweeper Lift Arm R.H	£60.34 £50.28
7	WE32721100 In stock	H.E. Sweper Lift Arm L.H	Was £60.34 £50.28 Special Price £43.44 £36.20
9	WE327171600 Out of stock	RH Sweep Lift Crossbar Con Pl	£21.38 £17.82
10	WE018003200 Out of stock	M8X40mm Bright Zinc Plate Bolt	£0.70 £0.58
11	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Wash	£0.28 £0.23
12	WE405110200 Out of stock	PTO Plate Upgrade Kit	£24.12 £20.10
13	WE31329200 In stock	C-Series Roller Plate Bush	£4.96 £4.13
14	WE18806100 Out of stock	Trunion (PTO Engage)	£7.46 £6.22
15	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
16	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
17	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
18	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
19	WE313010800 Out of stock	Rod	£62.12 £51.77
20	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
21	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
23	WE04885900 In stock	Nut	£0.90 £0.75
24	WE02912200 Out of stock	M5 X 16 S.Screw	£0.42 £0.35
25	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm T	£0.30 £0.25
26	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
