Countax Combi Deck 50" - 50 Combi Deck

Countax Combi Deck 50" - 50 Combi Deck
Countax Combi Deck 50" - 50 Combi Deck Countax Combi Deck 50" - 50 Combi Deck Countax Combi Deck 50" - 50 Combi Deck

Description

Countax Combi

COMBI DECK 50" - Deck

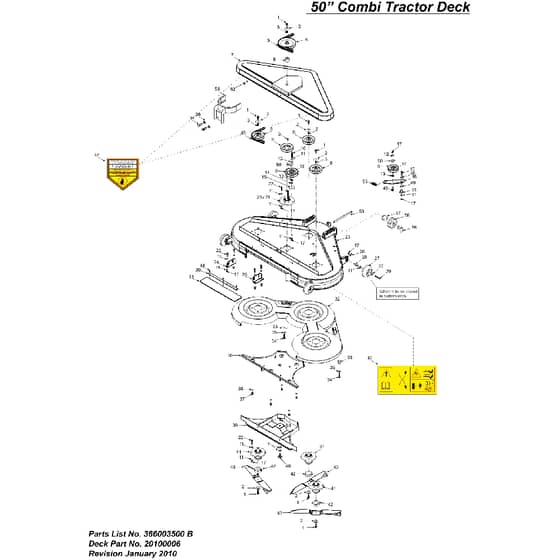

50 Combi Deck Parts Diagram

Ref. Img. Part No. Details
  1 Screw Hex Hd Din933 M10 X 30
Screw Hex Hd Din933 M10 X 30
WE028892300 In stock
Screw Hex Hd Din933 M10 X 30
£0.94 £0.78

  2 Dome Washer 1.3.4Od X 3.8Id X
Dome Washer 1.3.4Od X 3.8Id X
WE08819900 In stock
Dome Washer 1.3.4Od X 3.8Id X
£9.86 £8.22

  3 Key 1.4 X 1 Rounded
Key 1.4 X 1 Rounded
WE09921900 Out of stock
Key 1.4 X 1 Rounded
£2.70 £2.25

  4 7 Deck Drive Pulley
7 Deck Drive Pulley
WE20870202 Out of stock
7 Deck Drive Pulley
£55.14 £45.95

  5 Cutter Belt
Cutter Belt
WE22871200 In stock
Cutter Belt
£60.58 £50.48

  6 Deck Drive Pulley Spacer
Deck Drive Pulley Spacer
WE31328301 Out of stock
Deck Drive Pulley Spacer
£20.88 £17.40

  7 50 Deck Cover-Mul.Ibs
50 Deck Cover-Mul.Ibs
WE148991100 In stock
50 Deck Cover-Mul.Ibs
£129.90 £108.25

  8 5Internal Pulley.Keyway
5Internal Pulley.Keyway
WE20869502 In stock
5Internal Pulley.Keyway
£44.74 £37.28

  9 Deck Idler Pulley C.W Bearing
Deck Idler Pulley C.W Bearing
WE209044600 In stock
Deck Idler Pulley C.W Bearing
£19.44 £16.20

  10 Bolt M8 X 55
Bolt M8 X 55
WE028662600 Out of stock
Bolt M8 X 55
£0.64 £0.53

  11 Washer - M8 X 21 X 1.6
Washer - M8 X 21 X 1.6
WE088003700 In stock
Washer - M8 X 21 X 1.6
£0.60 £0.50

  12 Sweeper Jockey Cap
Sweeper Jockey Cap
WE31351100 Out of stock
Sweeper Jockey Cap
£7.08 £5.90

  13 Spacer Jockey Wheel
Spacer Jockey Wheel
WE18831600 In stock
Spacer Jockey Wheel
£4.68 £3.90

  14 P.T.O. Bridge Spacer H.E. Trac
P.T.O. Bridge Spacer H.E. Trac
WE31326100 Out of stock
P.T.O. Bridge Spacer H.E. Trac
£4.10 £3.42

  15 Tr D 98 Idler Pulley Spacer
Tr D 98 Idler Pulley Spacer
WE183004200 Out of stock
Tr D 98 Idler Pulley Spacer
£8.94 £7.45

  16 Bearing (PTO Housing)
Bearing (PTO Housing)
WE10811600 In stock
Bearing (PTO Housing)
£28.24 £23.53

  17 M8 Nyloc Nut
M8 Nyloc Nut
WE04920100 In stock
M8 Nyloc Nut
£0.28 £0.23

  18 50 Mulch Jockey Pulley Plate W
50 Mulch Jockey Pulley Plate W
WE327362400 Out of stock
50 Mulch Jockey Pulley Plate W
£38.64 £32.20

  19 50 Mulch Jockey Plate Pivot Sh
50 Mulch Jockey Plate Pivot Sh
WE189498400 Out of stock
50 Mulch Jockey Plate Pivot Sh
£10.70 £8.92

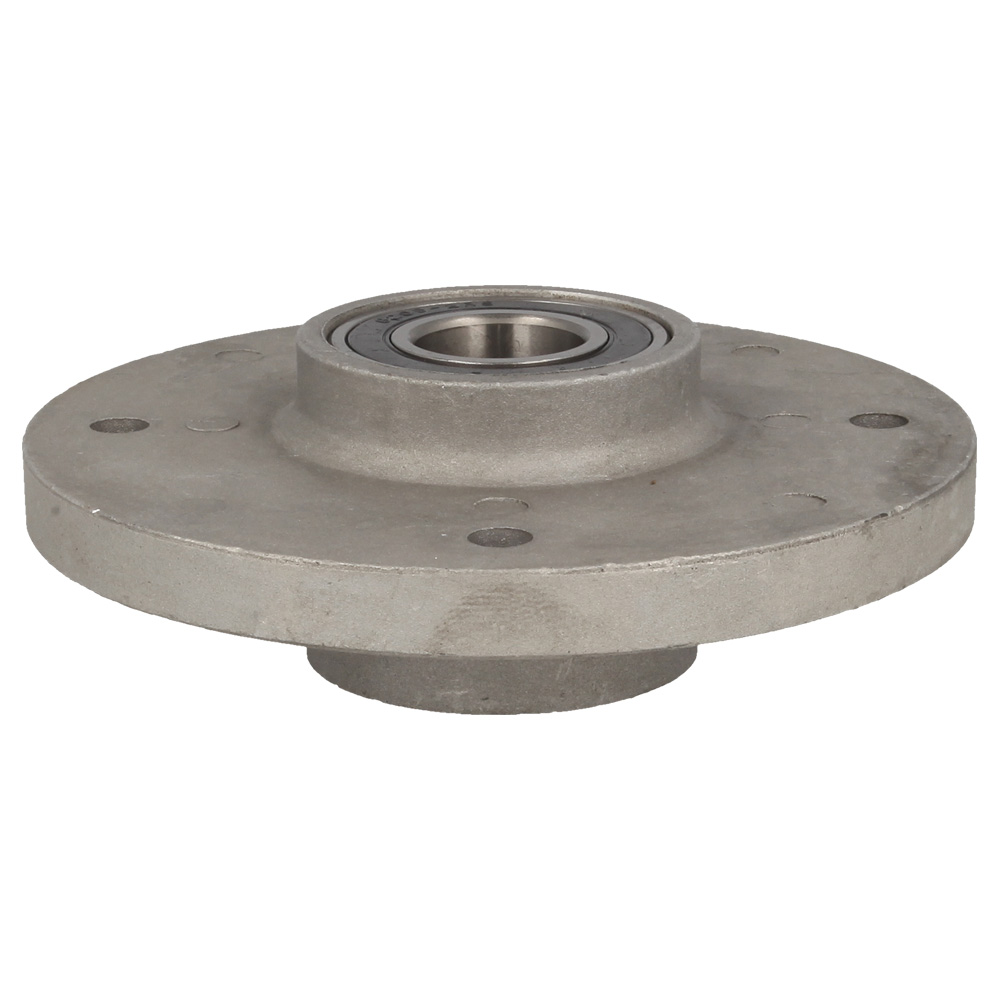

  20 Clutch Bearing Housing For 1 S
Clutch Bearing Housing For 1 S
WE10900300 Out of stock
Clutch Bearing Housing For 1 S
£87.94 £73.28

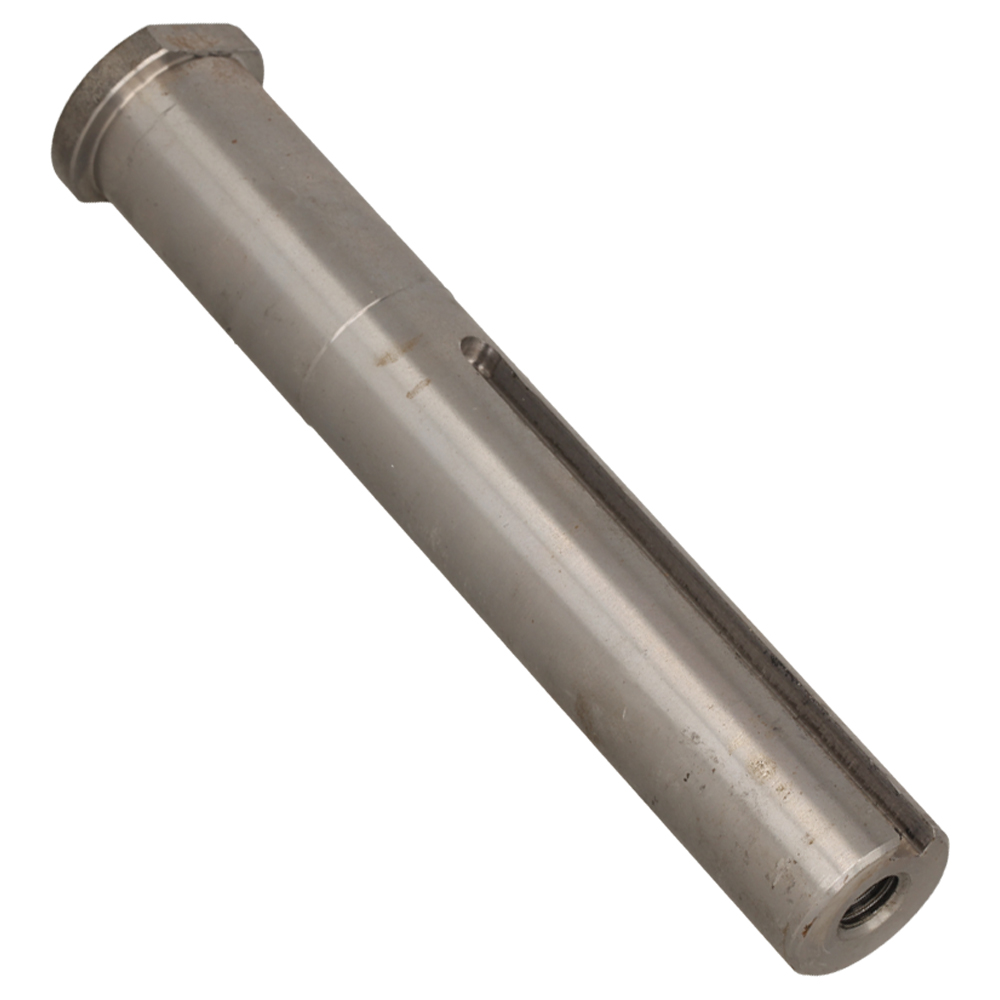

  21 50 Combi Deck Bearing Shaft
50 Combi Deck Bearing Shaft
WE183849701 Out of stock
50 Combi Deck Bearing Shaft
£55.50 £46.25

  22 M8 X 35mm Bolt Compressor
M8 X 35mm Bolt Compressor
WE01935700 Out of stock
M8 X 35mm Bolt Compressor
£0.70 £0.58

  23 50 Combi Deck Shell Welded Ass
50 Combi Deck Shell Welded Ass
WE327889000 Out of stock
50 Combi Deck Shell Welded Ass
£1,350.88 £1,125.73

  24 50 Ibs.Mulcher Deck Univ Brack
50 Ibs.Mulcher Deck Univ Brack
WE307186600 Out of stock
50 Ibs.Mulcher Deck Univ Brack
£19.20 £16.00

  25 50 Ibs.Mulcher Deck Univ Brack
50 Ibs.Mulcher Deck Univ Brack
WE307186700 Out of stock
50 Ibs.Mulcher Deck Univ Brack
£19.20 £16.00

  26 Washer M8 X 25 X 3 Unplated
Washer M8 X 25 X 3 Unplated
WE089418600 In stock
Washer M8 X 25 X 3 Unplated
£1.00 £0.83

  27 Antiscalp Wheel-March 2000
Antiscalp Wheel-March 2000
WE149495800 Out of stock
Antiscalp Wheel-March 2000
£23.22 £19.35

  28 Scuff Wheel Hub. Belt Guard Sp
Scuff Wheel Hub. Belt Guard Sp
WE31337600 Out of stock
Scuff Wheel Hub. Belt Guard Sp
£5.12 £4.27

  30 Sweeper & Combi Deck Flap Stri
Sweeper & Combi Deck Flap Stri
WE541113000 Out of stock
Sweeper & Combi Deck Flap Stri
£14.64 £12.20

  31 44 Combi Rubber Flap
44 Combi Rubber Flap
WE148989300 Out of stock
44 Combi Rubber Flap
£27.94 £23.28

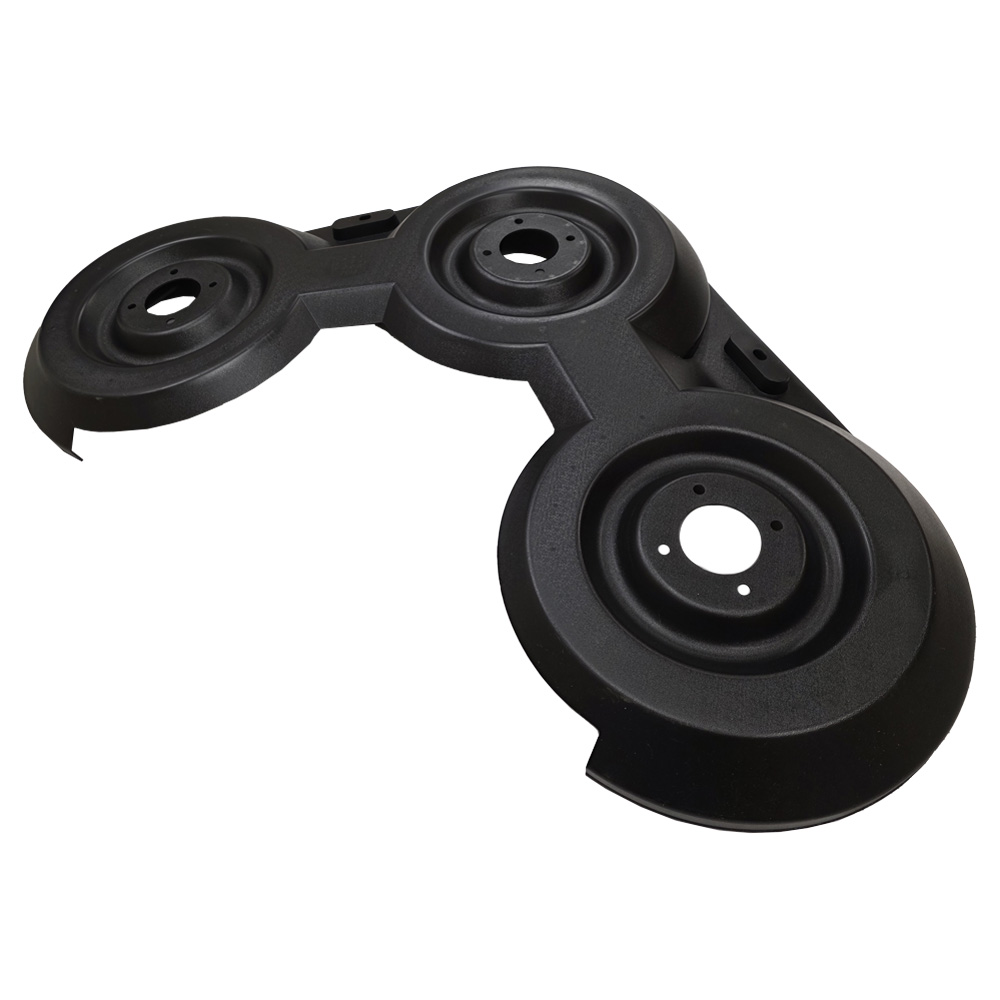

  32 50 Combi Deck Inner Liner
50 Combi Deck Inner Liner
WE148990200 Out of stock
50 Combi Deck Inner Liner
£211.84 £176.53

  34 Screw Hex Hd Din933 M8 X 20 G
Screw Hex Hd Din933 M8 X 20 G
WE028893500 In stock
Screw Hex Hd Din933 M8 X 20 G
£0.58 £0.48

  35 M8 Spring Washer Single Coil F
M8 Spring Washer Single Coil F
WE089420400 Out of stock
M8 Spring Washer Single Coil F
£0.64 £0.53

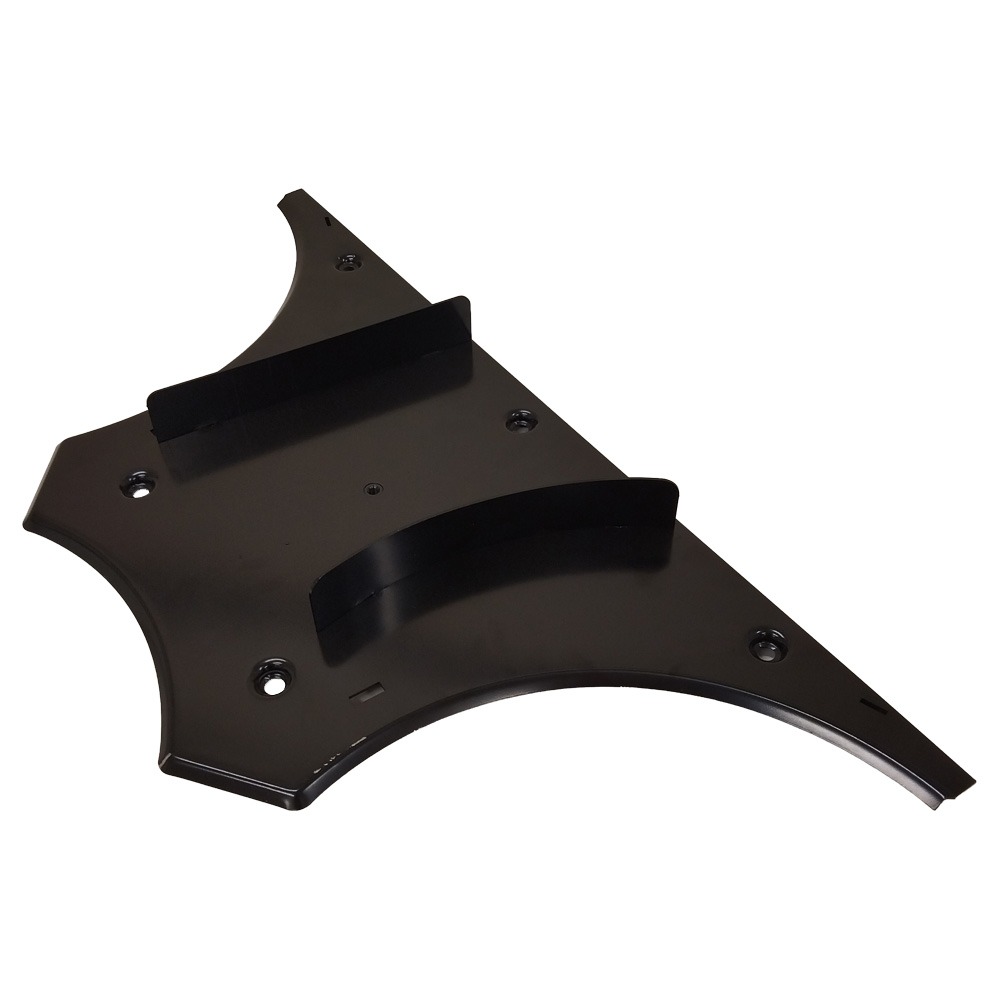

  36 50 Combi Clamp Plate
50 Combi Clamp Plate
WE327888401 Out of stock
50 Combi Clamp Plate
£146.98 £122.48

  37 M8 X 16 M.Screw BZP
M8 X 16 M.Screw BZP
WE028001000 In stock
M8 X 16 M.Screw BZP
£0.70 £0.58

  39 50 Top Stiffener Welded Assemb
50 Top Stiffener Welded Assemb
WE327888300 Out of stock
50 Top Stiffener Welded Assemb
£186.02 £155.02

  40 Handwheel 40mm.M8 462053
Handwheel 40mm.M8 462053
WE149552800 Out of stock
Handwheel 40mm.M8 462053
£15.88 £13.23

  41 Bearing Housing Assy Short Sha
Bearing Housing Assy Short Sha
WE40503607 In stock
Bearing Housing Assy Short Sha
£115.58 £96.32

  42 Deck Bearing Housing Slinger 2
Deck Bearing Housing Slinger 2
WE30831500 Out of stock
Deck Bearing Housing Slinger 2
£13.61 £11.34

  43 Blade 19Right
Blade 19Right
WE16938100 In stock
Blade 19Right
£43.78 £36.48

  44 Pop Rivet 4.8mm X 10mm
Pop Rivet 4.8mm X 10mm
WE12824400 Out of stock
Pop Rivet 4.8mm X 10mm
£0.54 £0.45

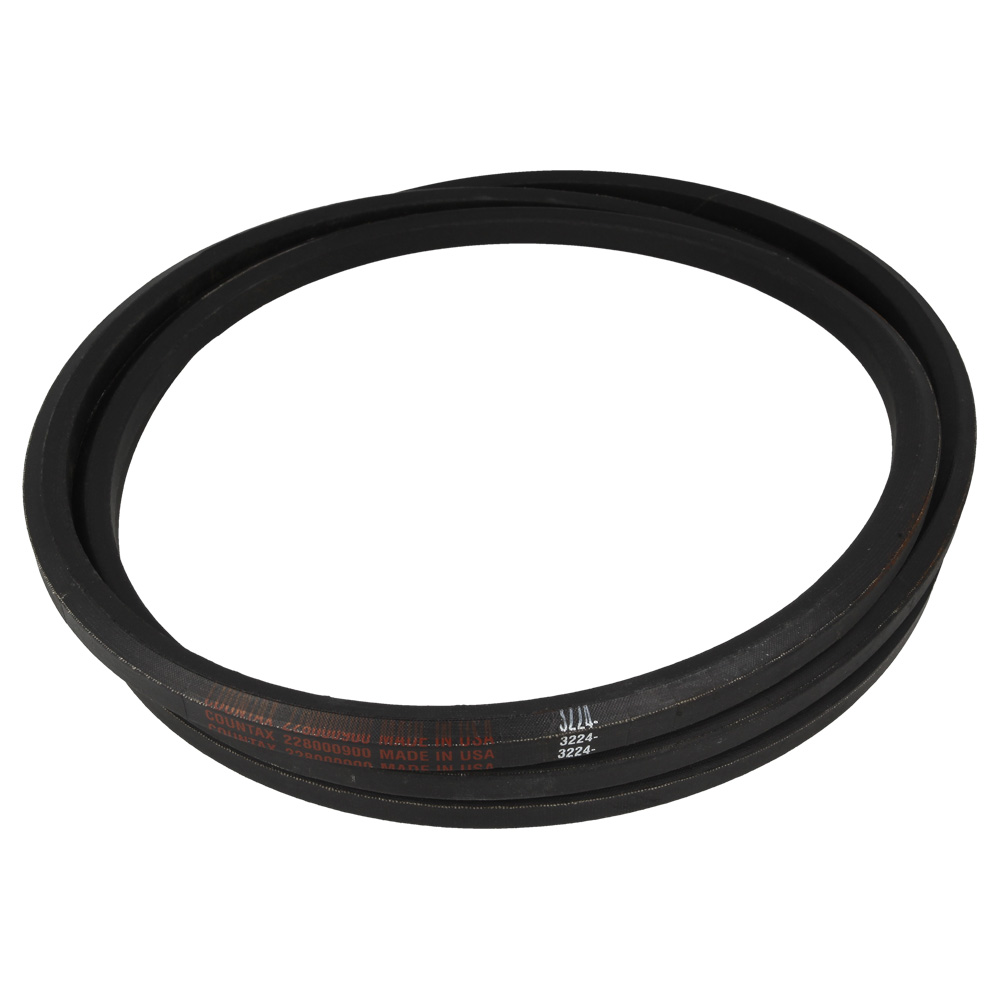

  45 Mulching / Combi Cutter Deck Belt
Mulching / Combi Cutter Deck Belt
WE228000900 In stock
Mulching / Combi Cutter Deck Belt
£111.96 £93.30

  46 Yellow Background Warning Labe
Yellow Background Warning Labe
WE358005900 Out of stock
Yellow Background Warning Labe
£6.94 £5.78

  47 Rider Deck Danger Decal
Rider Deck Danger Decal
WE35803300 Out of stock
Rider Deck Danger Decal
£8.26 £6.88

  48 Shield Wdecals 98083
Shield Wdecals 98083
WE02941000 Out of stock
Shield Wdecals 98083
£0.66 £0.55

  49 Rider Sintered Bush 16.64Lx15.
Rider Sintered Bush 16.64Lx15.
WE18341000 Out of stock
Rider Sintered Bush 16.64Lx15.
£2.50 £2.08

  50 Circlip 40mm
Circlip 40mm
WE07847600 Out of stock
Circlip 40mm
£1.76 £1.47

  51 M8 Internally Serrated Shakepr
M8 Internally Serrated Shakepr
WE088003800 In stock
M8 Internally Serrated Shakepr
£0.60 £0.50

  52 Self Drilling Screw Hex Head 4
Self Drilling Screw Hex Head 4
WE028001500 In stock
Self Drilling Screw Hex Head 4
£0.88 £0.73

  53 Mulch Deck Tension Bar 38
Mulch Deck Tension Bar 38
WE29203700 Out of stock
Mulch Deck Tension Bar 38
£27.82 £23.18

  54 50 Mulcher Deck Pulley Guard A
50 Mulcher Deck Pulley Guard A
WE327018901 Out of stock
50 Mulcher Deck Pulley Guard A
£50.18 £41.82

  55 Deck Tension Spring
Deck Tension Spring
WE25906200 In stock
Deck Tension Spring
£8.72 £7.27

  56 50 Decks Centre Scalp Bracket
50 Decks Centre Scalp Bracket
WE307022600 Out of stock
50 Decks Centre Scalp Bracket
£13.90 £11.58

  57 50 Deck Centre Scalp Wheel Fla
50 Deck Centre Scalp Wheel Fla
WE307022700 Out of stock
50 Deck Centre Scalp Wheel Fla
£20.42 £17.02

  58 Anti Scalp Wheel 1.2 Bore (Box
Anti Scalp Wheel 1.2 Bore (Box
WE19905500 In stock
Anti Scalp Wheel 1.2 Bore (Box
£22.06 £18.38


Description

Countax Combi

COMBI DECK 50" - Deck

50 Combi Deck Parts Diagram
