Countax C800 - From 01-01-2003 To 01-09-2003 - 17 Console Mk1 Pre 90326

Name: Countax C800 - From 01-01-2003 To 01-09-2003 - 17 Console Mk1 Pre 90326
SKU: c800_01012003_01092003_17-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C800 - From 01-01-2003 To 01-09-2003 - 17 Console Mk1 Pre 90326

Description

Countax C Series

C800 - Tractor

From 01-01-2003 To 01-09-2003

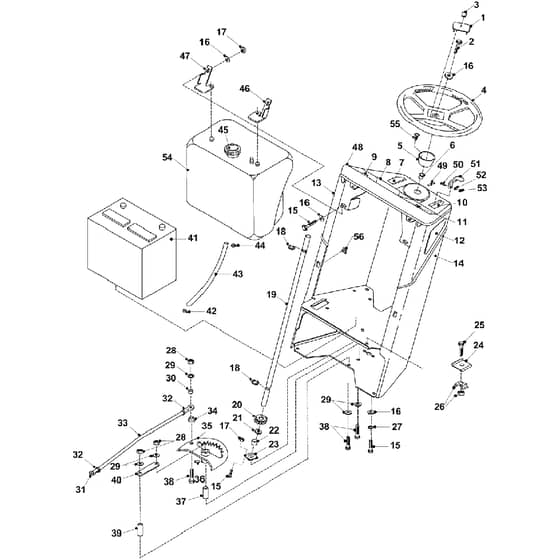

17 Console Assembly Mk1 Pre 90326 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	WE02819600 In stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
4	WE149591300 Out of stock	Steering Wheel Assy (2013)	£98.96 £82.47
6	WE149588800 Out of stock	Steering Column Upper Bush	£4.52 £3.77
14	WE27708700 Out of stock	Tractor Console	£127.06 £105.88
15	WE02827600 Out of stock	Set Screw	£0.64 £0.53
16	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
17	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
18	WE07823400 In stock	E Clip 1.2	£0.86 £0.72
19	WE31328400 Out of stock	Steering Column Cseries	£77.52 £64.60
20	WE31302300 Out of stock	Steering Pinion	£117.34 £97.78
21	WE08822700 In stock	Washer 58 T3 Lp	Was £0.58 £0.48 Special Price £0.42 £0.35
22	WE18401500 Out of stock	Steering Rod Spacer	£10.20 £8.50
23	WE10801700 Out of stock	Column Lower Bearing	£20.36 £16.97
25	WE02885800 In stock	Bolt M5 X 20mm	£0.40 £0.33
26	WE049382600 Out of stock	M5 Cage Nut 3mm Mat	£0.82 £0.68
27	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£0.60 £0.50
28	WE04820200 In stock	Nyloc Nut 38UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
29	WE08820100 In stock	Washer 38 T3 ZP	£0.14 £0.12
30	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
31	WE10872600 In stock	10mm Rod End	£27.42 £22.85
32	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
33	WE313007800 Out of stock	Tractor Steering Link Rod March 99	£19.30 £16.08
34	WE189513700 Out of stock	Xw Series 15mm Rose Joint Spacer	£2.44 £2.03
35	WE18801400 Out of stock	15T Kc Series Steering Quadrant	£167.52 £139.60
36	WE11808600 Out of stock	Grease Nipple	£0.92 £0.77
37	WE31337400 Out of stock	Steering Rack Pivot	£17.68 £14.73
38	WE01821600 Out of stock	Bolt 38 X 2.12	£1.08 £0.90
39	WE31337500 Out of stock	Steering Support Boss	£18.08 £15.07
42	WE11867100 Out of stock	Hose Clip (Spring Type)	£0.90 £0.75
43	WE14803200 Out of stock	Fuel Feed Pipe 80059	£10.66 £8.88
44	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
45	WE01538400 In stock	Fuel Cap	£16.57 £13.81
46	WE307187400 Out of stock	2002 Fuel Tank Brkt	£9.82 £8.18
48	WE14859100 Out of stock	Console	£45.64 £38.03
49	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
50	WE02826300 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	Was £0.19 £0.16 Special Price £0.14 £0.12
51	WE14810400 Out of stock	Control Knob (Throttle Cable)	£9.90 £8.25
53	WE04826400 Out of stock	M4 Nyloc T	£0.36 £0.30
54	WE14803000 Out of stock	Fuel Tank Without Hole	£59.42 £49.52
55	WE02913100 In stock	6 X 8 Pozi Ss Stap	£0.25 £0.21
