Countax C800 4Wd - From 01-12-2005 To 01-01-2006 - 1 Steering And Front Transmission

Description

Countax C Series

C800 4WD - Tractor

From 01-12-2005 To 01-01-2006

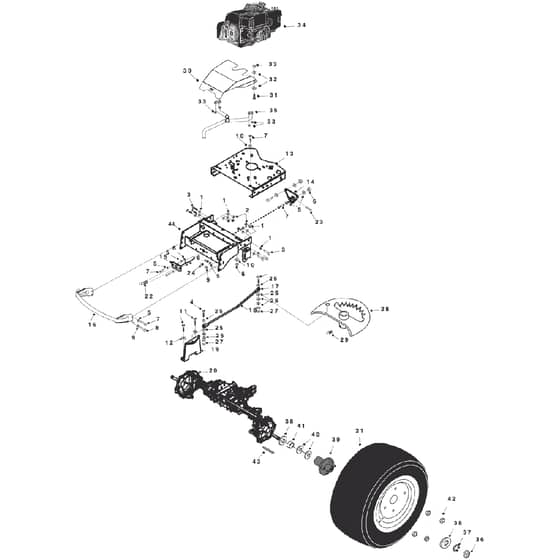

1 Steering And Front Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE088004500 Out of stock	M10 X 24 X 2 Tl Washer	£0.88 £0.73
2	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
3	WE028002300 Out of stock	M10 X 25 S.Screw BZP	£1.45 £1.21
4	WE018005300 Out of stock	M10 X 65mm Hex Head Bolt - BZP	£0.66 £0.55
5	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
6	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
9	WE088003700 In stock	Washer - M8 X 21 X 1.6	£0.60 £0.50
11	WE019480400 Out of stock	M12 X 35mm Set Screw BZP Hex H	£0.70 £0.58
12	WE089420900 Out of stock	M12 Spring Washer Single Coil	£0.26 £0.22
13	WE30836200 Out of stock	C Series 4Wd Chassis	£634.06 £528.38
14	WE32952600 Out of stock	C-Series Chas Frnt Pin Support	£44.98 £37.48
15	WE32952700 Out of stock	C-Series Chassis Front Pin Wel	£6.14 £5.12
16	WE327807600 Out of stock	Tractor Bullbar Assembly 08 To	£183.28 £152.73
17	WE108728000 Out of stock	M12 Rod Joint 20.50	£35.02 £29.18
18	WE313007800 Out of stock	Tractor Steering Link Rod - Ma	£19.30 £16.08
19	WE328961600 Out of stock	4Wd Steering Arm Assembly	£40.56 £33.80
20	WE480000100 Out of stock	Kxh7N Hfwd Transmission	£2,334.40 £1,945.33
21	WE198004400 Out of stock	C Series 4Wd Front 16 Tyre	£121.08 £100.90
23	WE05916800 Out of stock	M6 Roll Pin	£2.98 £2.48
24	WE04827500 In stock	Nyloc Nut 5.16 UNF	£0.36 £0.30
25	WE183012800 Out of stock	20.50 Steering Link Rod Spacer	£5.02 £4.18
26	WE088003600 In stock	Washer - M12 X 24 X 1.6	£0.60 £0.50
27	WE04938100 Out of stock	1.4 UNC Nut	£0.58 £0.48
28	WE327877200 Out of stock	4Wd Steering Quadrant Assembly	£290.40 £242.00
29	WE11808600 Out of stock	Grease Nipple	£0.92 £0.77
30	WE301147500 Out of stock	C Series C800 Heat Shield	£30.90 £25.75
31	WE028002900 Out of stock	Bolt M6X25 Plated	£0.58 £0.48
32	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
33	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
35	WE327026300 Out of stock	Honda Gxv530 & Gcv520 Exhaust	£110.78 £92.32
36	WE07823200 Out of stock	E Clip 3.4	£0.88 £0.73
38	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
39	WE198002000 Out of stock	Wheel Hub For 20 Wheel C.W Stu	£56.12 £46.77
40	WE08820100 In stock	Washer 3.8 T3 Z.P	£0.14 £0.12
41	WE31324900 Out of stock	17mm Wheel Spacer	£16.44 £13.70
42	WE048000800 Out of stock	20.50 Wheel Nut	£2.64 £2.20
43	WE09830700 Out of stock	Keyrear Wheel	£5.54 £4.62
44	WE32952500 Out of stock	C-Series 4Wd Chassis Front Wel	£210.36 £175.30
