Countax C800 4Wd - From 01-01-2006 To 01-01-2008 - 4 He Seat And Rear Body

Name: Countax C800 4Wd - From 01-01-2006 To 01-01-2008 - 4 He Seat And Rear Body
SKU: c8004wd_01012006_01012008_4h-group
Price: 0.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C800 4Wd - From 01-01-2006 To 01-01-2008 - 4 He Seat And Rear Body

Description

Countax C Series

C800 4WD - Tractor

From 01-01-2006 To 01-01-2008

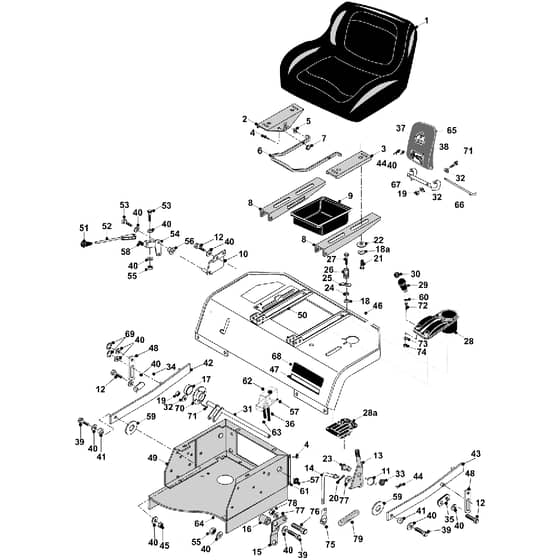

4 He Seat And Rear Body Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	WE30118000 Out of stock	Seat Plate Adjuster LH	£8.26 £6.88
4	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
5	WE25831100 Out of stock	Spring	£4.04 £3.37
6	WE30203100 Out of stock	Seat Handle	£7.76 £6.47
7	WE07868700 Out of stock	1.4 Starloc Washer	£0.54 £0.45
8	WE30117700 Out of stock	Adjustable Seat Channel R.H	£16.22 £13.52
9	WE14848500 Out of stock	Tool Tray	£24.70 £20.58
10	WE32722500 Out of stock	PTO Engage Bridge	£20.90 £17.42
11	WE258000600 Out of stock	Spring -Handbrake Block Torsio	£4.98 £4.15
12	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
13	WE321124300 Out of stock	C Series Handbrake Handle Weld	£51.92 £43.27
14	WE318961703 Out of stock	Universal Handbrake Rod	£35.62 £29.68
15	WE301137800 Out of stock	C Series Handbrake Chassis Jog	£21.28 £17.73
16	WE183027400 Out of stock	C Series H.Brake Chassis Joggl	£12.40 £10.33
17	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
18	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm T	£0.30 £0.25
18	WE08824200 Out of stock	Shakeproof Washer 1.4Id X 5.8O (18a)	£0.96 £0.80
19	WE04885900 In stock	Nut	£0.90 £0.75
20	WE06823300 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.24 £0.20
22	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Wash	£0.28 £0.23
23	WE31336800 Out of stock	Deck Lift Pin (Front)	£10.42 £8.68
24	WE31330800 Out of stock	Spacer(He C-Series Seat Spring	£5.24 £4.37
25	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
26	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
27	WE028003400 Out of stock	M10 X 40mm Socket Capscrew Zin	£0.82 £0.68
28	WE148013900 Out of stock	C Series 2002 Cup Holder	£22.42 £18.68
28	WE148014000 Out of stock	C Series 2002 Hanbrake Block (28a)	£11.62 £9.68
29	WE149557300 Out of stock	Handbrake Handle	£10.24 £8.53
30	WE359505100 Out of stock	H.Brake Handle Badge	£8.06 £6.72
31	WE327009400 In stock	20.50 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
32	WE088002800 In stock	M5 Washer Form C O.D 12.5mm	Was £0.54 £0.45 Special Price £0.23 £0.19
33	WE149498000 Out of stock	C Series Handbrake Mechanism N	£6.78 £5.65
35	WE327171700 Out of stock	LH Sweeper Crossbar Con Plate	£21.38 £17.82
36	WE149545600 Out of stock	4Wd Curved Rubber Return Pipe	£60.46 £50.38
37	WE35809500 Out of stock	PTO Danger Label	£5.98 £4.98
38	WE35891200 Out of stock	Sweeper Belt Decal (Symbols On	£5.70 £4.75
39	WE02941000 Out of stock	Shield Wdecals 98083	£0.66 £0.55
40	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£0.62 £0.52
41	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X	£7.22 £6.02
42	WE32720300 Out of stock	H.E. Sweeper Lift Arm R.H	£60.34 £50.28
43	WE32721100 In stock	H.E. Sweper Lift Arm L.H	Was £60.34 £50.28 Special Price £43.44 £36.20
44	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
45	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
46	WE327807600 Out of stock	Tractor Bullbar Assembly 08 To	£183.28 £152.73
47	WE35931701 Out of stock	107Cm 42 Decal 2003	£1.90 £1.58
48	WE30133500 Out of stock	H.E. Sweeper Lift Plate	£18.34 £15.28
49	WE327308500 Out of stock	Foot Control C Series Seatbox	£159.40 £132.83
50	WE301985800 Out of stock	Seat Attachment Channel 2008	£53.36 £44.47
51	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
52	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
53	WE018005700 Out of stock	Hx Hd Bolt Zink Plt & Clear Pa	£0.88 £0.73
54	WE405110200 Out of stock	PTO Plate Upgrade Kit	£24.12 £20.10
56	WE31305100 Out of stock	PTO Plate Spacer	£7.96 £6.63
57	WE148018500 Out of stock	Oil Reservoir 2.5Ltr 4Trac - C	£46.72 £38.93
60	WE148014300 Out of stock	M6 Socket Screw Cap	£0.62 £0.52
61	WE301140300 Out of stock	Stainless Steel Wearstrip	£8.04 £6.70
62	WE168T2024250 Out of stock	Vent Valve	£16.98 £14.15
63	WE149545500 Out of stock	Return Pipe Flared 4Wd Tractor	£51.04 £42.53
64	WE327023302 Out of stock	Chassis C-Series	£645.08 £537.57
65	WE149496300 Out of stock	PTO Flap - Tractor He (Pla	£42.48 £35.40
66	WE31301800 Out of stock	Seat Pivot Rod	£20.74 £17.28
67	WE542032800 Out of stock	Brkt PTO Flap A Series	£17.56 £14.63
69	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
70	WE27106601 In stock	Bearing Housing 17mm	£28.68 £23.90
71	WE019479500 In stock	M5 X 16mm Flang Butt Hd Sckt D	Was £0.41 £0.34 Special Price £0.24 £0.20
72	WE18000300 Out of stock	Bolt M6 X 20mm (Vac) ( Af037	£0.58 £0.48
73	WE08874300 In stock	1.4 T4 Hp Washer	£0.35 £0.29
74	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
75	WE10872600 In stock	10mm Rod End	£27.42 £22.85
76	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30	£0.94 £0.78
78	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
79	WE25906200 In stock	Deck Tension Spring	£8.72 £7.27
