Countax C80 - From A0328984 06-04-2016 - 13 Rear Transmission

Description

Countax C Series

C80 - Tractor

From A0328984 06-04-2016

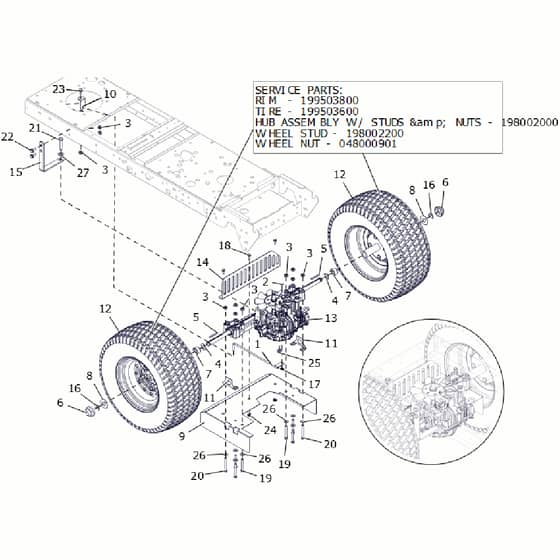

13 Rear Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE321123301 Out of stock	Cseries Dump Valve Lever Assembly	£15.98 £13.32
2	WE12855800 Out of stock	14 X 12 Steel Flat Hd Solid Rivet Zin	£1.44 £1.20
3	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
4	WE081258200 Out of stock	32 X 20 X 1mm Galv Washer	£6.50 £5.42
5	WE09830700 In stock	Keyrear Wheel	£4.06 £3.38
6	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
7	WE189498701 Out of stock	K46 Transaxle Spacer 2008	£10.30 £8.58
8	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
9	WE30307101 Out of stock	2001 Cseries Transaxle Deflector	£66.68 £55.57
10	WE307022200 Out of stock	Park Brake Switch Brkt Long	£8.20 £6.83
11	WE307191801 Out of stock	K46 Transaxle Thrust Washer	£6.00 £5.00
12	WE405111100 Out of stock	Wheel Assy20 Wanda 24Wd Cseries 2013	£199.40 £166.17
13	WE478000302 In stock	Hydrotx K46Cm 08	£1,153.26 £961.05
14	WE542030100 Out of stock	B Seriesrear Guard	£54.46 £45.38
15	WE549005200 Out of stock	Transmission Steady Bracket	£15.70 £13.08
16	WE07823200 Out of stock	E Clip 34	£0.88 £0.73
17	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
18	WE019484600 Out of stock	M6 X 20 Flange Bolts(Non Serrated)	£1.92 £1.60
19	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
20	WE028663200 Out of stock	M8X70mm Hex Bolt Zinc & Clear Passivate	£0.70 £0.58
21	WE018002400 Out of stock	M10 X 55 Hex Head Bolt	£0.70 £0.58
22	WE019483600 Out of stock	M8 X 20 Flange Bolt	£2.00 £1.67
23	WE019483500 Out of stock	M8 X 16 Flange Bolt	£1.08 £0.90
24	WE049381900 Out of stock	M6 X 3mm Captive Nut	£1.16 £0.97
25	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
26	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
27	WE088004500 Out of stock	M10 X 24 X 2 Tl Washer	£0.88 £0.73
