Countax C80 - From A0328984 06-04-2016 - 12 Chassis Belts

Description

Countax C Series

C80 - Tractor

From A0328984 06-04-2016

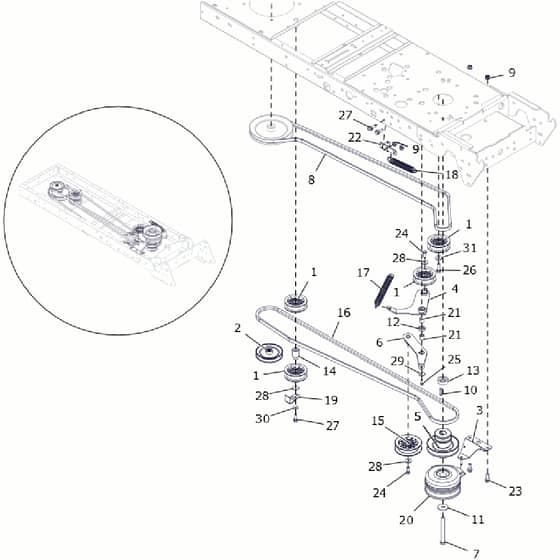

12 Chassis Belts Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
2	WE209046100 In stock	Asm Pulley Transaxle 101mm	£39.02 £32.52
3	WE328969500 Out of stock	Asm Clutch Retainer Front	£48.60 £40.50
4	WE329594700 Out of stock	Assy Tensioner Plate Lower	£50.88 £42.40
5	WE329603200 Out of stock	Asm 2Wd Engine Pulley	£173.06 £144.22
6	WE329604800 Out of stock	Asm Tensioner Transaxle	£66.82 £55.68
7	WE01831000 Out of stock	716 UNF X 4.5 Bolt	£6.52 £5.43
8	WE22951900 Out of stock	PTO Belt	£80.04 £66.70
9	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
10	WE09853401 Out of stock	Key14Sq X 1 14 American Spec Rounded	£2.00 £1.67
11	WE18312200 Out of stock	Engine Pulley Cap	£9.28 £7.73
12	WE183860700 Out of stock	Spacer Tensioner Plates	£5.48 £4.57
13	WE183862100 Out of stock	Spacer Engine Pulley	£4.58 £3.82
14	WE186008900 Out of stock	Post Rear Idler Retrofit	£9.46 £7.88
15	WE209046200 In stock	Pulley Plastic 4 Idler	£19.42 £16.18
16	WE22951800 Out of stock	Transmission Belt	£65.38 £54.48
17	WE25812201 Out of stock	Brake Return Spring	£8.20 £6.83
19	WE301123800 Out of stock	Joggled Belt Retaining Pulley Bracket	£11.04 £9.20
20	WE44936100 In stock	Elec.Clutch Magstop	£376.60 £313.83
21	WE52824700 Out of stock	Oilite Bush	£5.42 £4.52
22	WE549010300 Out of stock	Mount Drive Belt Spring	£5.02 £4.18
23	WE019484100 In stock	M8X25 Flange Bolt	£1.30 £1.08
24	WE028893500 Out of stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.90 £0.75
25	WE028662300 Out of stock	M6X16mm Set Screw	£0.64 £0.53
26	WE019483700 Out of stock	M8 X 30 Flange Bolt	£1.54 £1.28
27	WE029428400 Out of stock	M8X25Lg Hex Serrated Flange Screw	£1.36 £1.13
28	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
29	WE08845200 Out of stock	M6X25X1.5 mm Washer	£1.24 £1.03
30	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
31	WE08819800 In stock	Washer 516Id X 1Od Hd	£0.22 £0.18
