Countax C80 - From 01-07-2015 To 01-02-2016 - 3 Steering Section

Countax C80 - From 01-07-2015 To 01-02-2016 - 3 Steering Section
Countax C80 - From 01-07-2015 To 01-02-2016 - 3 Steering Section

Description

Countax C Series

C80 - Tractor

From 01-07-2015 To 01-02-2016

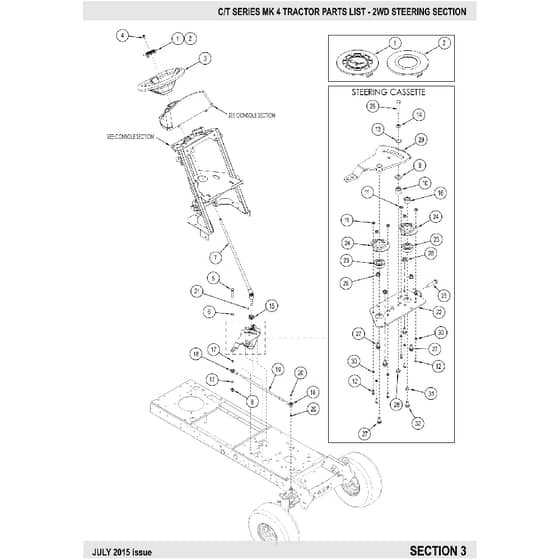

3 Steering Section Parts Diagram

Ref. Img. Part No. Details
  1 Steering Wheel Centre Cap Ctx (2013)
Steering Wheel Centre Cap Ctx (2013)
WE149591400 Out of stock
Steering Wheel Centre Cap Ctx (2013)
£6.66 £5.55

  2 Steering Wheel Centre Cap Echo (2013)
Steering Wheel Centre Cap Echo (2013)
WE149591700 Out of stock
Steering Wheel Centre Cap Echo (2013)
£6.66 £5.55

  3 Steering Wheel Assy (2013)
Steering Wheel Assy (2013)
WE149591300 Out of stock
Steering Wheel Assy (2013)
£98.96 £82.47

  4 M8 X 16 Flange Bolt
M8 X 16 Flange Bolt
WE019483500 Out of stock
M8 X 16 Flange Bolt
£1.08 £0.90

  5 M10 X 55 Hex Head Bolt
M10 X 55 Hex Head Bolt
WE018002400 Out of stock
M10 X 55 Hex Head Bolt
£0.70 £0.58

  6 Washer 10.8Id X 20.7Od X 2mm Thk
Washer 10.8Id X 20.7Od X 2mm Thk
WE088002400 Out of stock
Washer 10.8Id X 20.7Od X 2mm Thk
£0.30 £0.25

  7 Steering Column Welded Assembly
Steering Column Welded Assembly
WE329599600 Out of stock
Steering Column Welded Assembly
£133.68 £111.40

  8 M10 Flanged Nyloc Nut
M10 Flanged Nyloc Nut
WE049381600 Out of stock
M10 Flanged Nyloc Nut
£0.40 £0.33

  9 Nylon Washer
Nylon Washer
WE14850500 Out of stock
Nylon Washer
£1.76 £1.47

  10 Deck Height Pivot Boss
Deck Height Pivot Boss
WE18317400 Out of stock
Deck Height Pivot Boss
£6.60 £5.50

  12 M5 X 16 Sscrew
M5 X 16 Sscrew
WE02912200 Out of stock
M5 X 16 Sscrew
£0.42 £0.35

  13 Cseries Deck Lift Pivot Spacer
Cseries Deck Lift Pivot Spacer
WE183529500 Out of stock
Cseries Deck Lift Pivot Spacer
£4.66 £3.88

  14 Washer 516 T3 Lp Zinc Plated
Washer 516 T3 Lp Zinc Plated
WE08819500 Out of stock
Washer 516 T3 Lp Zinc Plated
£0.62 £0.52

  15 Steering Gear 2050 Cser Wwk1850
Steering Gear 2050 Cser Wwk1850
WE213112100 In stock
Steering Gear 2050 Cser Wwk1850
£72.38 £60.32

  16 Pinion Shaft Collar
Pinion Shaft Collar
WE186003200 In stock
Pinion Shaft Collar
£15.70 £13.08

  17 Track Rod End Spacer 12.7Od X 10Id X 7
Track Rod End Spacer 12.7Od X 10Id X 7
WE183016900 Out of stock
Track Rod End Spacer 12.7Od X 10Id X 7
£7.22 £6.02

  18 10mm Rod End
10mm Rod End
WE10872600 In stock
10mm Rod End
£27.42 £22.85

  19 Steering Link Long Alpha
Steering Link Long Alpha
WE183210500 Out of stock
Steering Link Long Alpha
£32.38 £26.98

  20 Steerng Rodend Spacer
Steerng Rodend Spacer
WE186003600 Out of stock
Steerng Rodend Spacer
£9.66 £8.05

  21 Key No 61
Key No 61
WE09823900 In stock
Key No 61
£0.84 £0.70

  22 Asm Steering Cassette Plate
Asm Steering Cassette Plate
WE329597700 Out of stock
Asm Steering Cassette Plate
£55.24 £46.03

  23 Front Wheel Bearing
Front Wheel Bearing
WE10802200 In stock
Front Wheel Bearing
£23.44 £19.53

  24 Tractor Pedal Cassette Bearing Housing
Tractor Pedal Cassette Bearing Housing
WE301048100 Out of stock
Tractor Pedal Cassette Bearing Housing
£30.60 £25.50

  25 M8X40mm Bright Zinc Plate Bolt
M8X40mm Bright Zinc Plate Bolt
WE018003200 Out of stock
M8X40mm Bright Zinc Plate Bolt
£0.70 £0.58

  26 Bolt M8 X 45mm (Vac)
Bolt M8 X 45mm (Vac)
WE02941000 Out of stock
Bolt M8 X 45mm (Vac)
£0.66 £0.55

  27 M8 X 16 Mscrew BZP
M8 X 16 Mscrew BZP
WE028001000 In stock
M8 X 16 Mscrew BZP
£0.70 £0.58

  28 M8 Flange Nut
M8 Flange Nut
WE049383700 Out of stock
M8 Flange Nut
£0.82 £0.68

  29 Asm Steering Quad
Asm Steering Quad
WE329596901 Out of stock
Asm Steering Quad
£154.72 £128.93

  31 M8 Internally Serrated Shakeproof Washe
M8 Internally Serrated Shakeproof Washe
WE088003800 Out of stock
M8 Internally Serrated Shakeproof Washe
£0.60 £0.50


Description

Countax C Series

C80 - Tractor

From 01-07-2015 To 01-02-2016

3 Steering Section Parts Diagram
