Countax C80 - From 01-06-2014 To 01-10-2014 - 10 Handbrake Pedal

Name: Countax C80 - From 01-06-2014 To 01-10-2014 - 10 Handbrake Pedal
SKU: c80_01062014_01102014_10-group
Price: 0.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C80 - From 01-06-2014 To 01-10-2014 - 10 Handbrake Pedal

Description

Countax C Series

C80 - Tractor

From 01-06-2014 To 01-10-2014

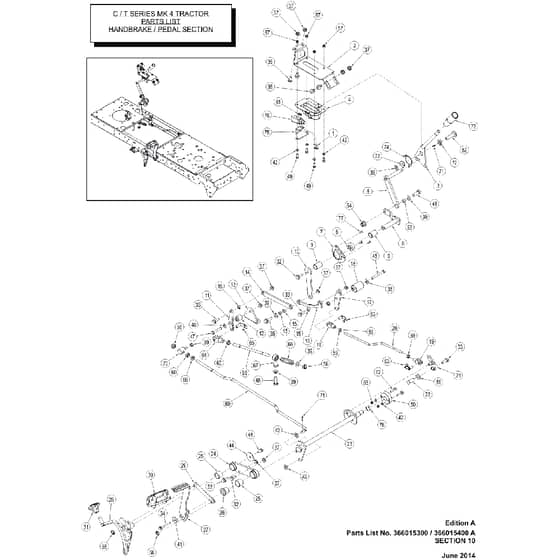

10 Handbrake Pedal Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE019479500 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	Was £0.41 £0.34 Special Price £0.24 £0.20
2	WE549112100 Out of stock	Handbrake Mount Bracket	£15.72 £13.10
3	WE329600800 Out of stock	Hand Brake Handle Asm	£54.36 £45.30
4	WE148014000 Out of stock	C Series 2002 Hanbrake Block	£11.62 £9.68
5	WE329601600 Out of stock	Hand Brake Connecting Rod Assembly	£19.12 £15.93
6	WE329597500 Out of stock	Asm Handbrake Lever Outer	£6.24 £5.20
7	WE301048100 In stock	Tractor Pedal Cassette Bearing Housing	£30.60 £25.50
8	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
9	WE183860300 Out of stock	Spacer Idler Pulley	£1.62 £1.35
10	WE542017300 Out of stock	Lever Inner Handbrake Pivot	£5.02 £4.18
11	WE549116300 Out of stock	Hand Brake Transaxle Pivot	£4.26 £3.55
12	WE18833700 Out of stock	Pivot (Deck Overlock)	£5.78 £4.82
13	WE549116200 Out of stock	Hand Brake Transaxle Bracket	£2.14 £1.78
14	WE549115200 Out of stock	Hand Brake Link Plate	£6.40 £5.33
15	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
16	WE549116000 Out of stock	Hand Brake Crank Link	£4.26 £3.55
17	WE549115000 Out of stock	Hand Brake Pivot Plate	£4.26 £3.55
18	WE186003500 Out of stock	Hand Brake Crank Boss	£5.94 £4.95
19	WE108001100 Out of stock	M8 Clevis Pin	£12.50 £10.42
20	WE174517900 Out of stock	Hand Brake Link Rod	£14.54 £12.12
21	WE329595000 Out of stock	Assy Locking Lever	£17.48 £14.57
22	WE184000500 Out of stock	Body Pivot Locking	£5.74 £4.78
23	WE329594800 Out of stock	Assy Crossshaft Pedal	£107.36 £89.47
24	WE329602300 Out of stock	Pedal Hub Asm	£34.98 £29.15
25	WE109011700 Out of stock	Chassis Pedal Boss Brg	£7.32 £6.10
26	WE183861300 Out of stock	Tube Support Pedal Drive	£10.22 £8.52
27	WE329594900 Out of stock	Assy Forward Pedal	£40.88 £34.07
28	WE329650200 Out of stock	Reverse Pedal Welded Asm	£63.10 £52.58
29	WE405080300 Out of stock	Pedal Cassette Link Assembly	£15.26 £12.72
30	WE148013700 Out of stock	C Series Fwd Large Pedal Rubber 2002	£15.14 £12.62
31	WE148013800 Out of stock	C Series Small Rev Pedal Rubber 2002	£13.38 £11.15
32	WE019483600 Out of stock	M8 X 20 Flange Bolt	£2.00 £1.67
33	WE019484100 In stock	M8X25 Flange Bolt	£1.30 £1.08
34	WE019484700 Out of stock	M6X55 Flange Non Serrated Hex Bolt	£0.70 £0.58
35	WE019483700 Out of stock	M8 X 30 Flange Bolt	£1.54 £1.28
36	WE019483500 Out of stock	M8 X 16 Flange Bolt	£1.08 £0.90
37	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
38	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
39	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
40	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
41	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
42	WE089422200 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.98 £0.82
44	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
45	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
46	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
47	WE02941000 Out of stock	Bolt M8 X 45mm (Vac)	£0.66 £0.55
48	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
49	WE028662300 Out of stock	M6X16mm Set Screw	£0.64 £0.53
50	WE189544100 Out of stock	Pedal Shaft End Hub Tractor 2013	£8.20 £6.83
51	WE14850500 Out of stock	Nylon Washer	£1.76 £1.47
52	WE31336800 In stock	Deck Lift Pin (Front)	£10.42 £8.68
53	WE189502700 Out of stock	Spacer 12.7Od 10.2 Id 9mm Long	£1.06 £0.88
54	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
55	WE048111000 Out of stock	M6 Grd 8 Nylon Self Lock Nuts Din 985	£0.96 £0.80
56	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
57	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
58	WE089418300 Out of stock	38 Starlock Washer	£1.44 £1.20
60	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
61	WE048001800 Out of stock	M5 Half Nut Black Finish	£0.90 £0.75
62	WE019485000 Out of stock	M6 X 25 Socket Cap Screw Steel Zinc Tri	£0.62 £0.52
63	WE108001200 Out of stock	8mm Spring Pin	£10.96 £9.13
64	WE108000600 Out of stock	10mm X 1.5 Clevis Short	£11.46 £9.55
65	WE108000500 In stock	10mm Spring Pin Short	£5.18 £4.32
66	WE313514600 Out of stock	Rod Trans Brake To Crossshaft	£16.42 £13.68
67	WE10872600 In stock	10mm Rod End	£27.42 £22.85
68	WE259405100 Out of stock	2050 Comp Brake Rod Spring	£3.42 £2.85
69	WE313514400 Out of stock	Rod Forwardreverse	£44.24 £36.87
70	WE183020200 Out of stock	2050 Diff Lock Pedal Trunnion	£12.42 £10.35
71	WE06855200 Out of stock	18 X 12 Split Pin	£0.28 £0.23
72	WE149498000 Out of stock	C Series Handbrake Mechanism Nylon Bush	£6.78 £5.65
73	WE149557300 Out of stock	Handbrake Handle	£10.24 £8.53
74	WE258000600 Out of stock	Spring Handbrake Block Torsion 1.75 Dia	£4.98 £4.15
75	WE549007000 Out of stock	Hand Brake Plunger Switch Bracket	£1.12 £0.93
76	WE449880800 Out of stock	Plunger Switch Nonc	£19.60 £16.33
77	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
78	WE109011900 Out of stock	Cross Shaft End Brg	£5.66 £4.72
