Countax C80 - From 01-02-2014 To 01-06-2014 - 9 Rear Transmission

Name: Countax C80 - From 01-02-2014 To 01-06-2014 - 9 Rear Transmission
SKU: c80_01022014_01062014_9r-group
Price: 0.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C80 - From 01-02-2014 To 01-06-2014 - 9 Rear Transmission

Description

Countax C Series

C80 - Tractor

From 01-02-2014 To 01-06-2014

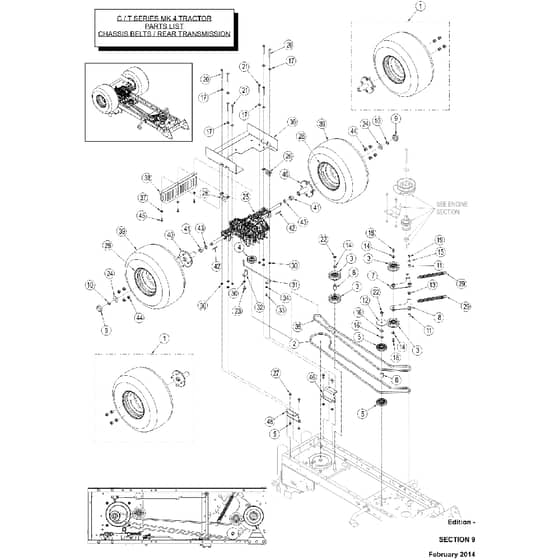

9 Rear Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405111100 Out of stock	Wheel Assy20 Wanda 24Wd Cseries 2013	£199.40 £166.17
2	WE22951900 Out of stock	PTO Belt	£80.04 £66.70
3	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
4	WE200811600 Out of stock	70mm Dia K46 Input Pulley	£47.70 £39.75
5	WE50100063 Out of stock	MK4 K730 Drive Belt Retrofit Kit	£494.38 £411.98
6	WE183860300 Out of stock	Spacer Idler Pulley	£1.62 £1.35
7	WE50100062 Out of stock	MK4 B Driv Belt Retrofit Kit	£494.38 £411.98
8	WE329594700 Out of stock	Assy Tensioner Plate Lower	£50.88 £42.40
9	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
10	WE07823200 Out of stock	E Clip 34	£0.88 £0.73
11	WE52824700 Out of stock	Oilite Bush	£5.42 £4.52
12	WE549006000 Out of stock	Idler Pulley Guard	£16.10 £13.42
13	WE183860700 Out of stock	Spacer Tensioner Plates	£5.48 £4.57
14	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
15	WE08845200 Out of stock	M6X25X1.5 mm Washer	£1.24 £1.03
16	WE08819800 In stock	Washer 516Id X 1Od Hd	£0.22 £0.18
17	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
18	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
19	WE028662300 Out of stock	M6X16mm Set Screw	£0.64 £0.53
20	WE028663200 Out of stock	M8X70mm Hex Bolt Zinc & Clear Passivate	£0.70 £0.58
21	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
22	WE019483700 Out of stock	M8 X 30 Flange Bolt	£1.54 £1.28
23	WE019483500 Out of stock	M8 X 16 Flange Bolt	£1.08 £0.90
24	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
25	WE478000302 Out of stock	Hydrotx K46Cm 08	£738.00 £615.00
26	WE307191801 Out of stock	K46 Transaxle Thrust Washer	£6.00 £5.00
27	WE019484100 In stock	M8X25 Flange Bolt	£1.30 £1.08
28	WE199503800 Out of stock	Wheel Rear Rim Wanda	£66.98 £55.82
29	WE25812201 Out of stock	Brake Return Spring	£8.20 £6.83
30	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
31	WE321123301 Out of stock	Cseries Dump Valve Lever Assembly	£15.98 £13.32
32	WE307022200 Out of stock	Park Brake Switch Brkt Long	£8.20 £6.83
33	WE12855800 Out of stock	14 X 12 Steel Flat Hd Solid Rivet Zin	£1.44 £1.20
34	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
35	WE22951800 Out of stock	Transmission Belt	£65.38 £54.48
36	WE30307101 Out of stock	2001 Cseries Transaxle Deflector	£66.68 £55.57
37	WE049381900 Out of stock	M6 X 3mm Captive Nut	£1.16 £0.97
38	WE542030100 Out of stock	B Seriesrear Guard	£54.46 £45.38
39	WE199503600 Out of stock	Tyre20 Wanda	£151.48 £126.23
40	WE198002000 Out of stock	Wheel Hub For 20 Wheel Cw Studs & Nuts	£56.12 £46.77
41	WE189498701 Out of stock	K46 Transaxle Spacer 2008	£10.30 £8.58
42	WE09830700 Out of stock	Keyrear Wheel	£5.54 £4.62
43	WE081258200 Out of stock	32 X 20 X 1mm Galv Washer	£6.50 £5.42
44	WE048000901 In stock	Ct Series Rear Wheel Nut	£2.48 £2.07
45	WE019484600 Out of stock	M6 X 20 Flange Bolts(Non Serrated)	£1.92 £1.60
46	WE541140500 Out of stock	Transaxle Mount Bracket	£21.38 £17.82
