Countax C600H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 4 Rear Body

Name: Countax C600H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 4 Rear Body
SKU: c600hkawasakiengine_01012011_31122013_4r-group
Price: 0.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C600H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 4 Rear Body

Description

Countax C Series

C600H KAWASAKI ENGINE - Tractor

From 01-01-2011 To 31-12-2013

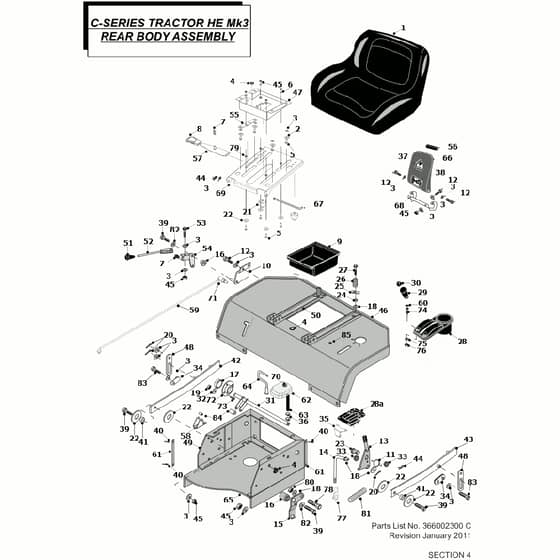

4 Rear Body Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405354400 Out of stock	Kit Milsco To Seat Conversion Kit	£297.56 £247.97
45	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
2	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£0.60 £0.50
3	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
4	WE52849700 Out of stock	Grommet Small	£0.96 £0.80
5	WE028001000 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
6	WE089422300 Out of stock	M8 X 13 X 1 Mild Steel Washer Scolour	£0.96 £0.80
7	WE25831100 Out of stock	Spring	£4.04 £3.37
8	WE149551800 Out of stock	Tractor Seat Handle 2008	£1.88 £1.57
9	WE14848500 Out of stock	Tool Tray	£24.70 £20.58
10	WE32722500 Out of stock	PTO Engage Bridge	£20.90 £17.42
11	WE258000600 Out of stock	Spring Handbrake Block Torsion 1.75 Dia	£4.98 £4.15
12	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
13	WE321124300 Out of stock	C Series Handbrake Handle Welded Assy	£51.92 £43.27
14	WE318961703 Out of stock	Universal Handbrake Rod	£35.62 £29.68
15	WE301137800 Out of stock	C Series Handbrake Chassis Joggle Plate	£21.28 £17.73
16	WE183027400 Out of stock	C Series Hbrake Chassis Joggle Plt Boss	£12.40 £10.33
17	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
18	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
19	WE04885900 In stock	Nut	£0.90 £0.75
20	WE06855200 Out of stock	18 X 12 Split Pin	£0.28 £0.23
21	WE149551900 Out of stock	Rubber Seat Spring Retainer	£7.44 £6.20
22	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
23	WE31336800 Out of stock	Deck Lift Pin (Front)	£10.42 £8.68
24	WE31330800 Out of stock	Spacer(He Cseries Seat Spring)	£5.24 £4.37
25	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
26	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
27	WE028003400 Out of stock	M10 X 40mm Socket Capscrew Zinc Plated	£0.82 £0.68
28	WE148013900 Out of stock	C Series 2002 Cup Holder	£22.42 £18.68
28	WE148014000 Out of stock	C Series 2002 Hanbrake Block (28a)	£11.62 £9.68
29	WE149557300 Out of stock	Handbrake Handle	£10.24 £8.53
30	WE359505100 Out of stock	Hbrake Handle Badge	£8.06 £6.72
31	WE327009400 In stock	2050 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
32	WE088002800 In stock	M5 Washer Form C Od 12.5mm	Was £0.54 £0.45 Special Price £0.23 £0.19
33	WE149498000 Out of stock	C Series Handbrake Mechanism Nylon Bush	£6.78 £5.65
34	WE327016100 Out of stock	Sweeper Lift Con Plate Assy(Zincclear)	£27.96 £23.30
35	WE301151300 Out of stock	Brake Switch Bracket	£22.40 £18.67
37	WE35809500 Out of stock	PTO Danger Label	£5.98 £4.98
38	WE35891200 Out of stock	Sweeper Belt Decal (Symbols Only)	£5.70 £4.75
39	WE02941000 Out of stock	Bolt M8 X 45mm (Vac)	£0.66 £0.55
40	WE128000100 Out of stock	Rivet For Mulch Deck Liner	£0.40 £0.33
41	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
42	WE32720300 Out of stock	H.E. Sweeper Lift Arm RH	£60.34 £50.28
43	WE32721100 In stock	H.E. Sweper Lift Arm LH	Was £60.34 £50.28 Special Price £43.44 £36.20
44	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
46	WE327028600 Out of stock	2002 C Series He Rear Body Welded Assy	£188.44 £157.03
47	WE301985401 Out of stock	Seat Base Plate 2008	£66.12 £55.10
48	WE30133500 Out of stock	H.E. Sweeper Lift Plate	£18.34 £15.28
49	WE327308500 Out of stock	Foot Control C Series Seatbox Manual	£159.40 £132.83
50	WE301985800 Out of stock	Seat Attachment Channel 2008	£53.36 £44.47
51	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
52	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
53	WE018003200 Out of stock	M8X40mm Bright Zinc Plate Bolt	£0.70 £0.58
54	WE405110200 Out of stock	PTO Plate Upgrade Kit	£24.12 £20.10
55	WE301985700 Out of stock	Seat Mechanism Spring Retainer Plate	£33.62 £28.02
56	WE148012200 Out of stock	Plastic PTO Flap Foam Strip 140302	£7.66 £6.38
57	WE325000601 Out of stock	Seat Release Mehcanism Lever Assembly	£10.10 £8.42
58	WE307023200 Out of stock	Seatbox Bracket For La10 Actuator	£10.16 £8.47
59	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
60	WE148014300 Out of stock	M6 Socket Screw Cap	£0.62 £0.52
61	WE301140300 Out of stock	Stainless Steel Wearstrip	£8.04 £6.70
62	WE148014600 Out of stock	Revervoir K46 Tranaxle	£54.86 £45.72
63	WE148014800 Out of stock	K46 Reservoir Hose	£14.28 £11.90
64	WE327012700 Out of stock	5 Pulley Modified Pig Tail Assembly 98	£31.24 £26.03
65	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
66	WE149496300 Out of stock	PTO Flap Tractor He (Plastic)	£42.48 £35.40
67	WE31301800 Out of stock	Seat Pivot Rod	£20.74 £17.28
68	WE542032800 Out of stock	Brkt PTO Flap A Series	£17.56 £14.63
69	WE301985503 Out of stock	Seat Running Plate 2008	£52.70 £43.92
70	WE168T2024250 Out of stock	Vent Valve	£16.98 £14.15
71	WE18318000 Out of stock	Rider Deck Brake Trunnion	£15.14 £12.62
72	WE27106601 In stock	Bearing Housing 17mm	£28.68 £23.90
73	WE019479500 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	Was £0.41 £0.34 Special Price £0.24 £0.20
74	WE18000300 Out of stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.58 £0.48
75	WE089422200 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.98 £0.82
76	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
77	WE10872600 In stock	10mm Rod End	£27.42 £22.85
78	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
79	WE183856700 Out of stock	Seat Running Plate Spacer	£1.74 £1.45
80	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
81	WE25906200 In stock	Deck Tension Spring	£8.72 £7.27
82	WE08819800 In stock	Washer 516Id X 1Od Hd	£0.22 £0.18
83	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
84	WE183023500 Out of stock	La10 Fast Lift Actuator Bush	£2.94 £2.45
85	WE149547500 Out of stock	1 14 Closed Grommet 2mm Material	£4.54 £3.78
