Countax C600 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle

Countax C600 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle
Countax C600 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle

Description

Countax C Series

C600 - Tractor

From 01-01-2008 To 31-12-2008

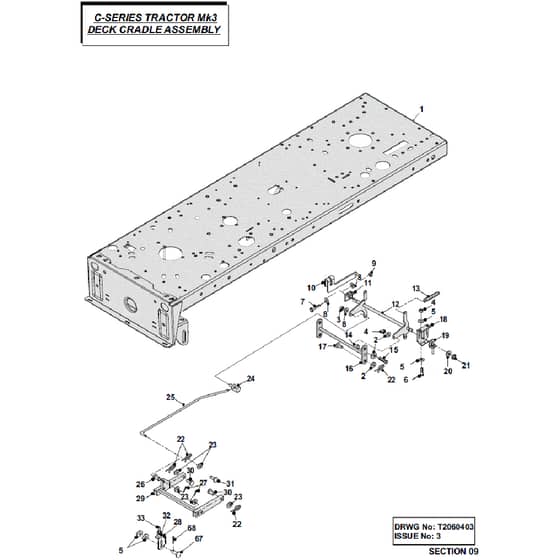

09 Deck Cradle Assembly Parts Diagram

Ref. Img. Part No. Details
  1 Chassis Cseries WE327023302
Chassis Cseries
Out of stock
£645.08 £537.57

  2 Washer M8 X 25 X 3 Unplated WE089418600
Washer M8 X 25 X 3 Unplated
In stock
£1.00 £0.83

  3 M8 X 16 Mscrew BZP WE028001000
M8 X 16 Mscrew BZP
In stock
£0.70 £0.58

  4 M8 Nyloc Nut WE04920100
M8 Nyloc Nut
In stock
£0.28 £0.23

  5 Washer 516 T3 Lp Zinc Plated WE08819500
Washer 516 T3 Lp Zinc Plated
Out of stock
£1.00 £0.83

  6 Screw Hex Hd Din933 M8 X 20 Grade 10.9 WE028893500
Screw Hex Hd Din933 M8 X 20 Grade 10.9
In stock
£0.58 £0.48

  7 M10 X 55 Hex Head Bolt WE018002400
M10 X 55 Hex Head Bolt
Out of stock
£0.70 £0.58

  9 M10 Nyloc Nut WE04886100
M10 Nyloc Nut
In stock
£0.72 £0.60

  10 Ad Manual Deck Lift Lower Linkage Arm WE301965400
Ad Manual Deck Lift Lower Linkage Arm
Out of stock
£35.38 £29.48

  11 2003 Rear Deck Hanging Brkt WE307189601
2003 Rear Deck Hanging Brkt
Out of stock
£16.66 £13.88

  12 2003 Rear Deck Hanging Brktcser Non He WE327361700
2003 Rear Deck Hanging Brktcser Non He
Out of stock
£114.14 £95.12

  12 C Series He Rear Deck Lift Cradle2003 (12a) WE328954100
C Series He Rear Deck Lift Cradle2003 (12a)
Out of stock
£132.68 £110.57

  13 He Sweeper Lift Assist Spring WE25908802
He Sweeper Lift Assist Spring
Out of stock
£14.86 £12.38

  14 Track Rod End Spacer 12.7Od X 10Id X 7 WE183016900
Track Rod End Spacer 12.7Od X 10Id X 7
Out of stock
£7.22 £6.02

  15 Hx Hd Bolt Zink Plt & Clear Passivated WE018005700
Hx Hd Bolt Zink Plt & Clear Passivated
Out of stock
£0.88 £0.73

  16 Brkt Rear Deck Lift Link WE549129100
Brkt Rear Deck Lift Link
Out of stock
£44.88 £37.40

  17 Deck Lift Pin (Rear) WE31337200
Deck Lift Pin (Rear)
In stock
£18.74 £15.62

  18 Hex Adjuster Deck Level Bracket 04 WE301143700
Hex Adjuster Deck Level Bracket 04
Out of stock
£27.04 £22.53

  19 Rear Deck Cradle Adjuster Brkt Nov 04 WE327029300
Rear Deck Cradle Adjuster Brkt Nov 04
Out of stock
£6.20 £5.17

  20 Transaxle Washer 46 X 20 X 2 WE089423700
Transaxle Washer 46 X 20 X 2
In stock
£1.92 £1.60

  21 E Clip M12 Plated WE078000800
E Clip M12 Plated
Out of stock
£0.88 £0.73

  22 Rue Clip WE11836700
Rue Clip
In stock
£1.42 £1.18

  23 Washer M12 X 24 X 1.6 WE088003600
Washer M12 X 24 X 1.6
In stock
£0.47 £0.39

  24 2002 Tractor Deck Level Trunion WE189497500
2002 Tractor Deck Level Trunion
Out of stock
£9.76 £8.13

  25 Height Adjuster Rod WE18805900
Height Adjuster Rod
Out of stock
£28.34 £23.62

  26 Deck Swing Lift Pin 12 X 46.5mm WE31339401
Deck Swing Lift Pin 12 X 46.5mm
In stock
£20.64 £17.20

  27 Split Pin 1 X 18 (Snowblade) WE06823300
Split Pin 1 X 18 (Snowblade)
Out of stock
£0.24 £0.20

  28 2050 Deck Lever Bracket WE301040000
2050 Deck Lever Bracket
Out of stock
£23.12 £19.27

  29 Deck Carry Cradle Assembly Front WE32703701
Deck Carry Cradle Assembly Front
Out of stock
£87.72 £73.10

  30 Deck Lift Pin (Front) WE31336800
Deck Lift Pin (Front)
Out of stock
£17.98 £14.98

  32 Deck Level Hex Adjuster Nut Nov 04 WE189501800
Deck Level Hex Adjuster Nut Nov 04
Out of stock
£7.06 £5.88


Description

Countax C Series

C600 - Tractor

From 01-01-2008 To 31-12-2008

09 Deck Cradle Assembly Parts Diagram
