Countax C600 - From 01-01-2008 To 31-12-2008 - 06 Hydrostatic Transaxle

Countax C600 - From 01-01-2008 To 31-12-2008 - 06 Hydrostatic Transaxle
Countax C600 - From 01-01-2008 To 31-12-2008 - 06 Hydrostatic Transaxle

Description

Countax C Series

C600 - Tractor

From 01-01-2008 To 31-12-2008

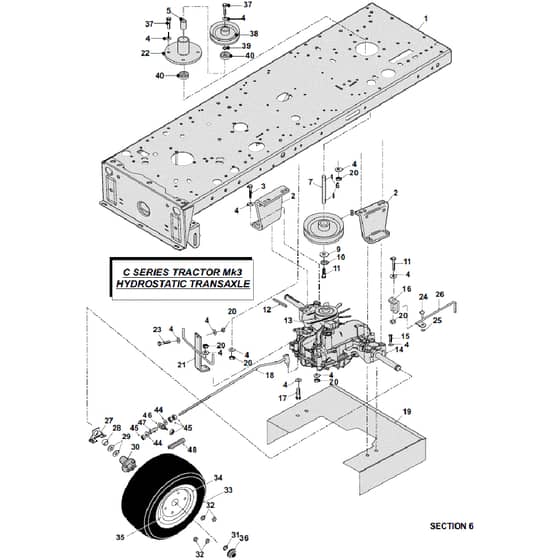

06 Hydrostatic Transaxle Parts Diagram

Ref. Img. Part No. Details
  1 Chassis Cseries WE327023302
Chassis Cseries
Out of stock
£645.08 £537.57

  2 C Series Transaxle Brkt 2000 6mm Thk WE307025900
C Series Transaxle Brkt 2000 6mm Thk
Out of stock
£47.04 £39.20

  3 M8 X 75mm Hex Bolt Zinc Plated Pa WE028003200
M8 X 75mm Hex Bolt Zinc Plated Pa
Out of stock
£0.70 £0.58

  5 PTO End Spacer WE31306200
PTO End Spacer
Out of stock
£6.22 £5.18

  6 Key No 61 WE09823900
Key No 61
In stock
£0.84 £0.70

  7 PTO Shaft WE31306000
PTO Shaft
Out of stock
£59.84 £49.87

  8 7 PTO Pulley WE20870702
7 PTO Pulley
Out of stock
£63.58 £52.98

  9 Washer M8 X 25 X 3 Unplated WE089418600
Washer M8 X 25 X 3 Unplated
In stock
£1.00 £0.83

  10 M8 Internally Serrated Shakeproof Washe WE088003800
M8 Internally Serrated Shakeproof Washe
In stock
£4.56 £3.80

  11 Bolt M8 X 25mm WE02826000
Bolt M8 X 25mm
In stock
£0.38 £0.32

  12 Keyrear Wheel WE09830700
Keyrear Wheel
Out of stock
£5.54 £4.62

  13 PTO Belt WE229503401
PTO Belt
Out of stock
£96.47 £80.39

  14 Hydrotx K46Cm 08 WE478000302
Hydrotx K46Cm 08
In stock
£1,691.38 £1,409.48

  15 Bolt M8X65mm WE028662700
Bolt M8X65mm
Out of stock
£0.62 £0.52

  16 Park Brake Switch Brkt Long WE307022200
Park Brake Switch Brkt Long
Out of stock
£8.20 £6.83

  17 Bolt M8 X 50mm WE018001800
Bolt M8 X 50mm
In stock
£2.56 £2.13

  19 2001 Cseries Transaxle Deflector WE30307101
2001 Cseries Transaxle Deflector
Out of stock
£66.68 £55.57

  20 M8 Nyloc Nut WE04920100
M8 Nyloc Nut
In stock
£0.28 £0.23

  21 Transaxle Steady Ssembly WE327020401
Transaxle Steady Ssembly
Out of stock
£39.20 £32.67

  22 PTO Bearing Housing MK3 Comp. WE40835800
PTO Bearing Housing MK3 Comp.
Out of stock
£219.46 £182.88

  24 Rivet 4.8 X 16mm Alloy Pop 10314816 WE12860100
Rivet 4.8 X 16mm Alloy Pop 10314816
Out of stock
£0.30 £0.25

  25 14 Starloc Washer WE07868700
14 Starloc Washer
Out of stock
£0.54 £0.45

  26 Cseries Dump Valve Lever Assembly WE321123301
Cseries Dump Valve Lever Assembly
Out of stock
£15.98 £13.32

  27 K46 Transaxle Thrust Washer WE307191801
K46 Transaxle Thrust Washer
Out of stock
£6.00 £5.00

  28 K46 Transaxle Spacer 2008 WE189498701
K46 Transaxle Spacer 2008
Out of stock
£10.30 £8.58

  29 Transaxle Washer 46 X 20 X 2 WE089423700
Transaxle Washer 46 X 20 X 2
In stock
£1.92 £1.60

  30 Wheel Hub For 20 Wheel Cw Studs & Nuts WE198002000
Wheel Hub For 20 Wheel Cw Studs & Nuts
Out of stock
£56.12 £46.77

  31 19mm External Circlip C1A140019 WE07921200
19mm External Circlip C1A140019
In stock
£0.23 £0.19

  32 Ct Series Rear Wheel Nut WE048000901
Ct Series Rear Wheel Nut
In stock
£2.48 £2.07

  33 20 Rear Tyre Ctractor 20X8.00 WE198001200
20 Rear Tyre Ctractor 20X8.00
Out of stock
£139.50 £116.25

  34 20 Cseries& C4Wd Rear Rim WE198001100
20 Cseries& C4Wd Rear Rim
Out of stock
£99.92 £83.27

  35 Wheel Valve WE14889200
Wheel Valve
Out of stock
£10.92 £9.10

  36 Hub Cap (Moulded) WE14811800
Hub Cap (Moulded)
Out of stock
£6.78 £5.65

  37 Screw Hex Hd Din933 M8 X 20 Grade 10.9 WE028893500
Screw Hex Hd Din933 M8 X 20 Grade 10.9
In stock
£0.58 £0.48

  38 5 PTO Pulley WE208000400
5 PTO Pulley
In stock
Was £43.04 £35.87 Special Price £29.95 £24.96

  40 Bearing (PTO Housing) WE10811600
Bearing (PTO Housing)
In stock
£28.24 £23.53

  41 Screw Hex Hd Din933 M10 X 30 Grade 10. WE028892300
Screw Hex Hd Din933 M10 X 30 Grade 10.
In stock
£0.94 £0.78

  42 Tow Bracket WE29200101
Tow Bracket
Out of stock
£55.28 £46.07

  43 M10 Locknut WE04872100
M10 Locknut
Out of stock
£0.38 £0.32

  44 Washer 10.8Id X 20.7Od X 2mm Thk WE088002400
Washer 10.8Id X 20.7Od X 2mm Thk
In stock
£0.34 £0.28

  46 MK3 Park Brake Engage Rod Trunnion WE187186100
MK3 Park Brake Engage Rod Trunnion
Out of stock
£8.24 £6.87

  47 MK3 Park Brake Engage Rod Sleeve WE174008900
MK3 Park Brake Engage Rod Sleeve
Out of stock
£12.82 £10.68

  48 2050 Comp Brake Rod Spring WE259405100
2050 Comp Brake Rod Spring
Out of stock
£3.42 £2.85


Description

Countax C Series

C600 - Tractor

From 01-01-2008 To 31-12-2008

06 Hydrostatic Transaxle Parts Diagram
